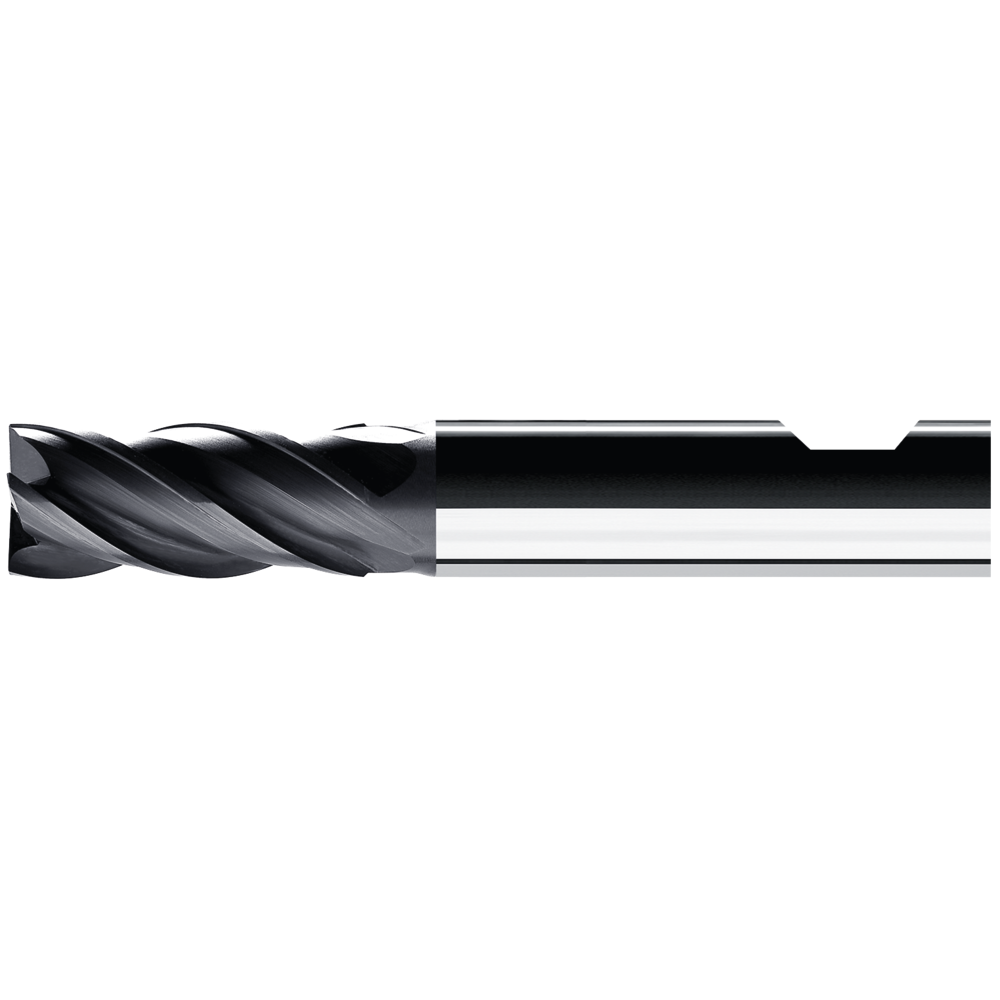

Solid carbide end milling cutter 3 mm R=0.2 mm Z=4 HA, TiAlN

Solid carbide end milling cutter 3 mm R=0.2 mm Z=4 HA, TiAlN
Solid carbide end milling cutter 3 mm R=0.2 mm Z=4 HA, TiAlN Solid carbide end milling cutter 3 mm R=0.2 mm Z=4 HA, TiAlN
Price:
48,30 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Other tools with clearance in the van Hoorn manufacturer catalogue

VHRS end milling cutter
  • Cutting material, solid carbide ultra-fine grain TiAlN-coated
  • Special pre-treatment and finishing treatment due to micro radiation
  • Version with 4 or 5 cutting edges
  • For wet and dry machining, extremely high chip removal rates and service life

The specialist in steel

Standard, 4 cutting edges
Article no./ATORN no.
2551000302
Vendor Article no.
VHRS40300510603
Packaging unit
1
Catalogue page
KS-0429
Cutting values
SW-0737

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6 mm
Design DIN 6535-HB
Feed for grooving fz steel < 1000 mm² 0,01 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,015 mm/tooth
L 51 mm
L1 7 mm
R 0,2 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Twist angle 35° | 38°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
