Base support and reduction with integrated calibration edge

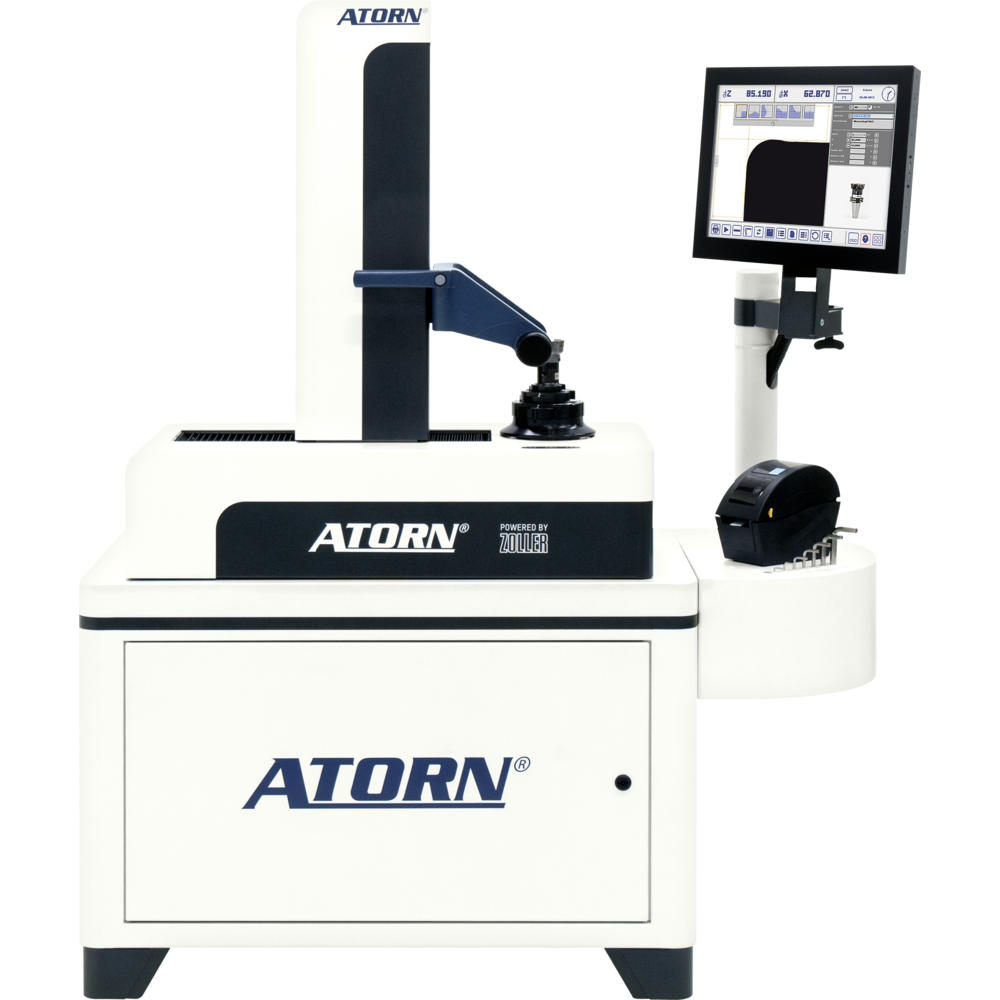

Tool pre-setting devices 350/420/600 with ImageController

• Robust tool pre-setting devices for workshop use
• Quick measuring, setting and testing tools
• SK50 high accuracy spindle with integrated calibration edge
• Pneumatic spindle clamping unit
• Simple setup of different zero points (max. 99)
• Different measuring programs e.g. to carry out concentricity and axial run-out measurements on the tool cutting edge
• CCD camera with telecentric lens
• Dynamic crosshair for automatic measurements
• EZmax software function for calculating and measuring the tool contour
• Supplied ex works, excluding packaging
