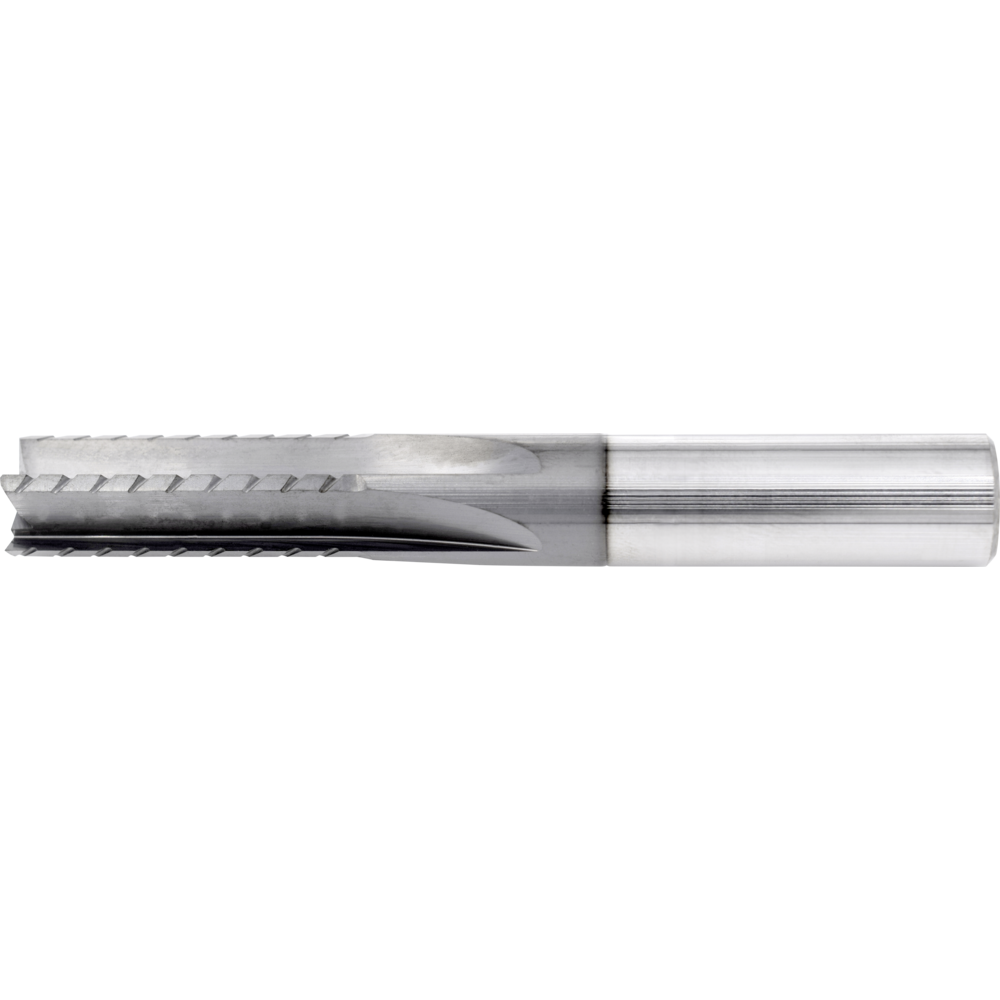

End milling cutter, solid carbide Dia.HC - GFRP/CFRP W0° L:40x14 z5 d6 Ø4

End milling cutter, solid carbide Dia.HC - GFRP/CFRP W0° L:40x14 z5 d6 Ø4
End milling cutter, solid carbide Dia.HC - GFRP/CFRP W0° L:40x14 z5 d6 Ø4 End milling cutter, solid carbide Dia.HC - GFRP/CFRP W0° L:40x14 z5 d6 Ø4
Price:
64,70 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Additional versions available from the manufacturer

HSC milling cutter Z5
  • For fibre composite materials
  • Large chip flutes with synchronous chip-breakers
  • Continuous cut, good chip removal
  • Straight grooves, no tensile forces on the workpiece
  • Dia-HC-coated

Article no./ATORN no.
2506030040 / 10440668
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining
Application milling MSC
Center cutting No
Coating DLC
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4 mm
D1 6 mm
Durchmesser max. 12 mm
Durchmesser min. 2 mm
Durchmesser min./max. 2-12 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form Corner
fz aluminium 0,28 mm
L 40 mm
L1 14 mm
Overall length Normal
Suitable for material group H 3
Suitable for material group K 3
Suitable for material group M 3
Suitable for material group N 1
Suitable for material group P 3
Suitable for material group S 3
Surface Diamond coating
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 0°
Z 5 pc.

Usage characteristics

GFRP / CFRP < 30 % fibre content
GFRP / CFRP ≥ 30 % fibre content
graphite

very suitable
suitable
