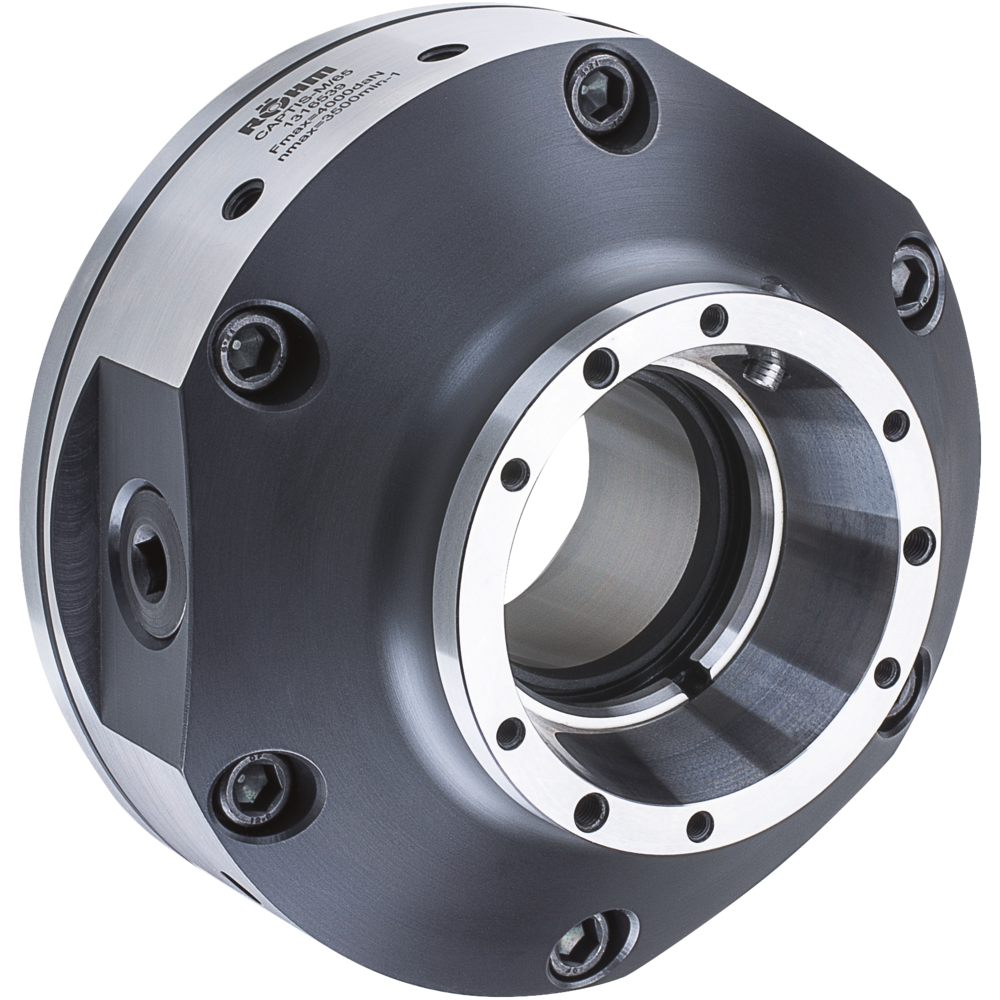

Collet chuck CAPTIS M42

Collet chuck CAPTIS M42
Collet chuck CAPTIS M42 Collet chuck CAPTIS M42 Collet chuck CAPTIS M42 Collet chuck CAPTIS M42
Price:
2.239,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Manual collet chuck Captis-M
  • Suitable for rotary and stationary machining
  • Precise concentricity and repetition precision
  • Uniform force distribution due to surrounding clamping
  • Robust clamping thanks to axial infeed
  • Compact design for optimal workpiece accessibility
  • For clamping heads with manual changing fixture
  • Also suitable for quick-change system ABSIS-C mandrel

Mechanical design
Manual collet chuck Captis-M
  • Suitable for rotary and stationary machining
  • Precise concentricity and repetition precision
  • Uniform force distribution due to surrounding clamping
  • Robust clamping thanks to axial infeed
  • Compact design for optimal workpiece accessibility
  • For clamping heads with manual changing fixture
  • Also suitable for quick-change system ABSIS-C mandrel

Mechanical design
Article no./ATORN no.
4075000042
Vendor Article no.
1345740
Packaging unit
1
Catalogue page

Technical characteristics

D1 160 mm
D1 160 mm
D2 125 mm
D2 125 mm
D3 140 mm
D3 140 mm
D4 106 mm
D4 106 mm
D5 42,5 mm
D5 42,5 mm
for type SK42
for type SK42
L1 100 mm
L1 100 mm
L6 10 mm
L6 10 mm
Rotational speed max. 4500 r/min
Rotational speed max. 4500 r/min
Catalogue page Download
