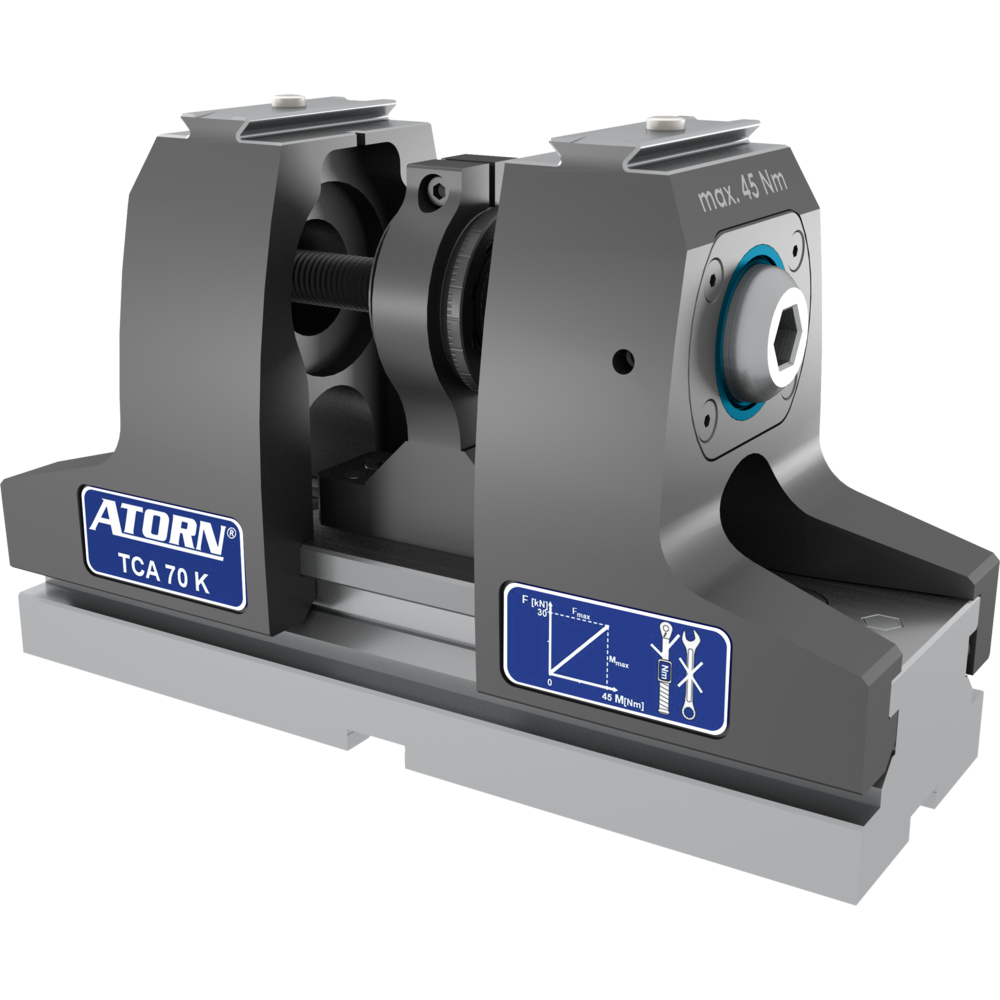

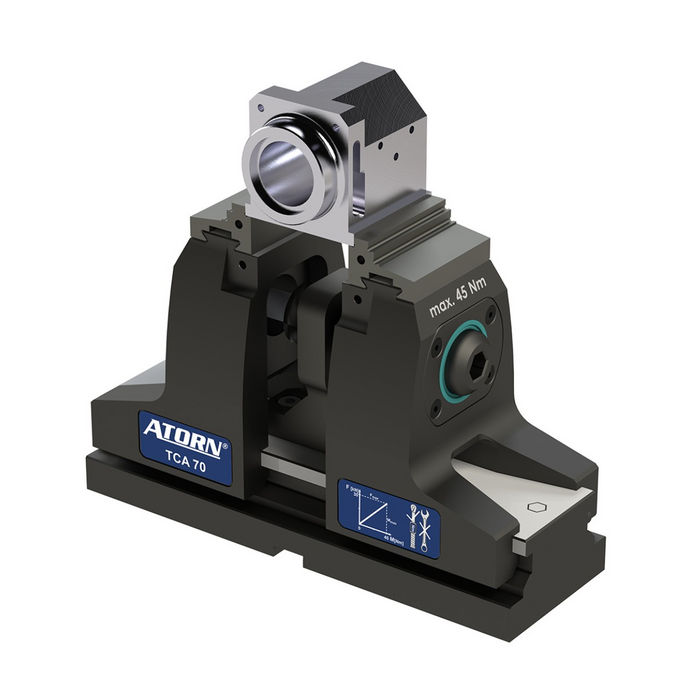

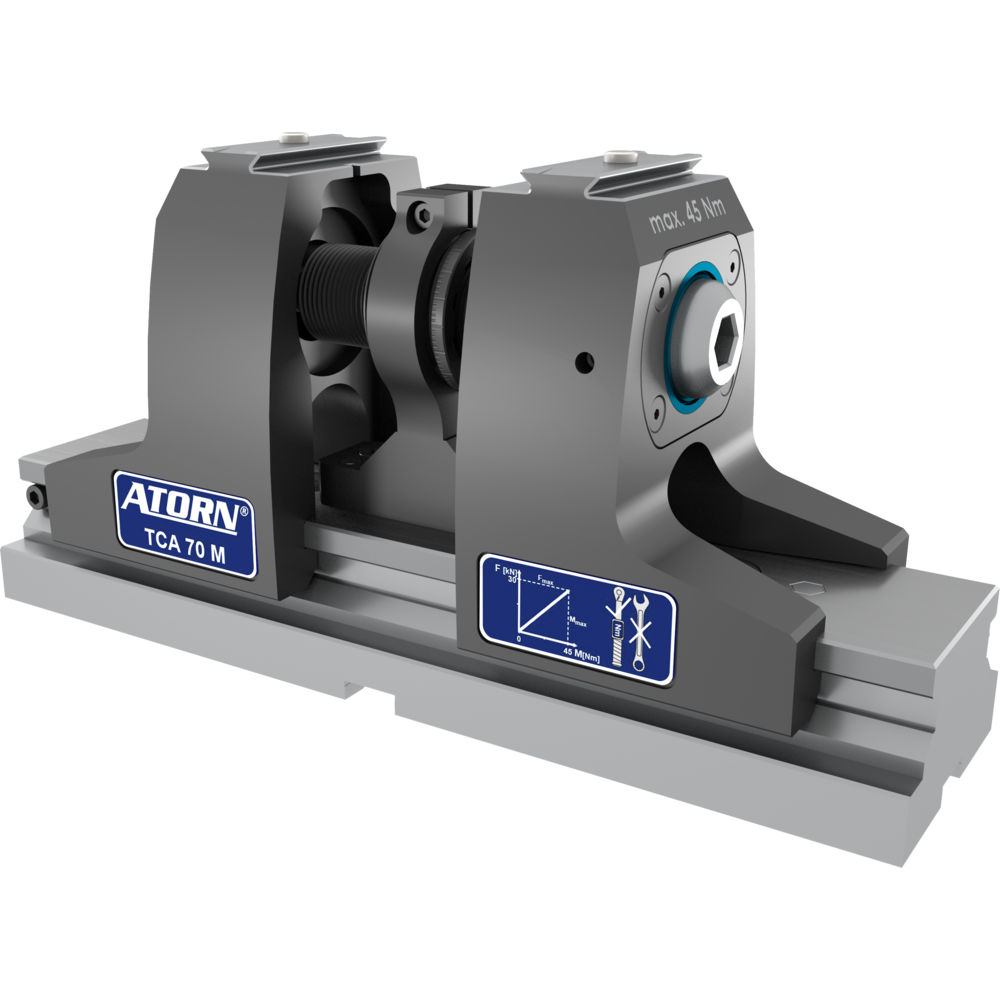

5-axis clamping system TCA70
With central clamp for 5-sided machining. Thanks to the design and central telescopic spindles, the protruding contours remain unchanged regardless of the clamp width. Excellent accessibility of all sides is guaranteed. The series-standard quick-change jaw system reduces tooling times and increases flexibility.

• Ideal for use on 5-axis machining centres
• Conventional clamping and grip clamping possible
• Telescopic spindle, protruding contour remains unchanged
• Central, simple programming without zero offset
• Material allowance is distributed symmetrically
• Repetition precision 0.01 mm
• Centring accuracy 0.02 mm
• Workpiece accessibility irrespective of the clamp width
• Symmetrical design = workpiece remains central and parallel
• Workpiece support height = 192 mm
• Quick-change jaw system, tool-free jaw changing thanks to quick-release lock
• Reversible jaws: for min. / max. clamp width with one pair of jaws
• Constant clamp force thanks to low-maintenance telescopic spindle
• Supplied as standard with locating bores for zero-point clamping system, pitch 200 mm
• Work table attachment also with through-bolts / fitting screws
• In 50 / 63 mm grid or clamping claws
• Integrated scale ring for fine adjustment of the central position
• Clamp force 30 kN at 45 Nm linear
• Operation with torque wrenches
• Supplied with
  1 ATORN TCA70 without jaws
  1 support plate for transportation
  1 hand crank for pre-setting
  Please order clamping jaws separately

5-axis clamping system TCA70
With central clamp for 5-sided machining. Thanks to the design and central telescopic spindles, the protruding contours remain unchanged regardless of the clamp width. Excellent accessibility of all sides is guaranteed. The series-standard quick-change jaw system reduces tooling times and increases flexibility.

• Ideal for use on 5-axis machining centres
• Conventional clamping and grip clamping possible
• Telescopic spindle, protruding contour remains unchanged
• Central, simple programming without zero offset
• Material allowance is distributed symmetrically
• Repetition precision 0.01 mm
• Centring accuracy 0.02 mm
• Workpiece accessibility irrespective of the clamp width
• Symmetrical design = workpiece remains central and parallel
• Workpiece support height = 192 mm
• Quick-change jaw system, tool-free jaw changing thanks to quick-release lock
• Reversible jaws: for min. / max. clamp width with one pair of jaws
• Constant clamp force thanks to low-maintenance telescopic spindle
• Supplied as standard with locating bores for zero-point clamping system, pitch 200 mm
• Work table attachment also with through-bolts / fitting screws
• In 50 / 63 mm grid or clamping claws
• Integrated scale ring for fine adjustment of the central position
• Clamp force 30 kN at 45 Nm linear
• Operation with torque wrenches
• Supplied with
  1 ATORN TCA70 without jaws
  1 support plate for transportation
  1 hand crank for pre-setting
  Please order clamping jaws separately
