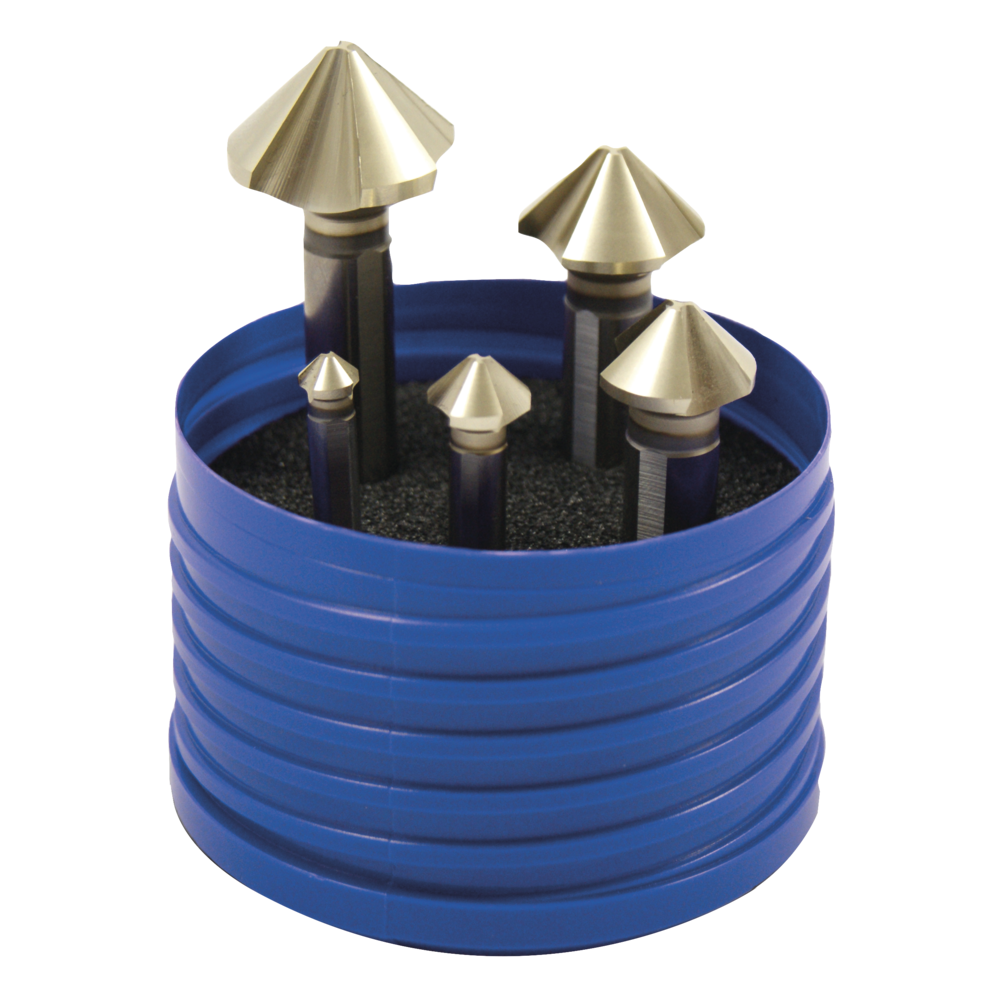

Countersink set HSS 90° 6.3-25 mm EUC-Speed with 3-face shank

Countersink set HSS 90° 6.3-25 mm EUC-Speed with 3-face shank
Countersink set HSS 90° 6.3-25 mm EUC-Speed with 3-face shank Countersink set HSS 90° 6.3-25 mm EUC-Speed with 3-face shank Countersink set HSS 90° 6.3-25 mm EUC-Speed with 3-face shank Countersink set HSS 90° 6.3-25 mm EUC-Speed with 3-face shank Countersink set HSS 90° 6.3-25 mm EUC-Speed with 3-face shank
Price
236,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Taper and deburring countersink EUC-Speed 90°
  • Geometry with very unequal pitch (EU pitch)
  • High degree of smoothness
  • Precision design
  • Prepared cutting edges
  • Radially relief-ground
  • Reduced axial and radial forces
  • Low vibration tendency
  • Special coating
  • Shank tolerances:
    HSS h9
    Solid carbide h6 (suitable for hydraulic expansion and shrink fit chucks)
  • Versions:
    150170 - HSS with straight shank, Tolerance h9
    150171 - Solid carbide, Tolerance h6 (suitable for hydraulic expansion and shrink fit chucks)
    150172 - HSS with 3 clamping surfaces on the shank to stop rotation of the countersink in the drill chuck with optimum torque transfer
    150173 - HSS with extended straight shank, Tolerance h9

Sets, 5-pcs.
Article no./ATORN no.
1501721000
Vendor Article no.
30897967
Packaging unit
1
Catalogue page
KS-0317
Cutting values
SW-0407

Technical characteristics

Coating ZrN
Contents 1 x 6,3 mm | 1 x 10,4 mm | 1 x 16,5 mm | 1 x 20,5 mm | 1 x 2
Contents 1 piece each 6.3 | 10.4 | 16.5 | 20.5 | 25 mm
Cutting data Cutting angle Information - yes
Design HSS with 3-face shank
DIN 335
Jaw quantity 3 cutting edges
Point angle Point angle 90°
S 90 °
Shank Straight, 3-facet grinding
Standard constructional dimensions DIN DIN 335C
Tool holding device Parallel shank with three tightening surfaces

Usage characteristics

aluminium < 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
copper Cu-alloy
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
