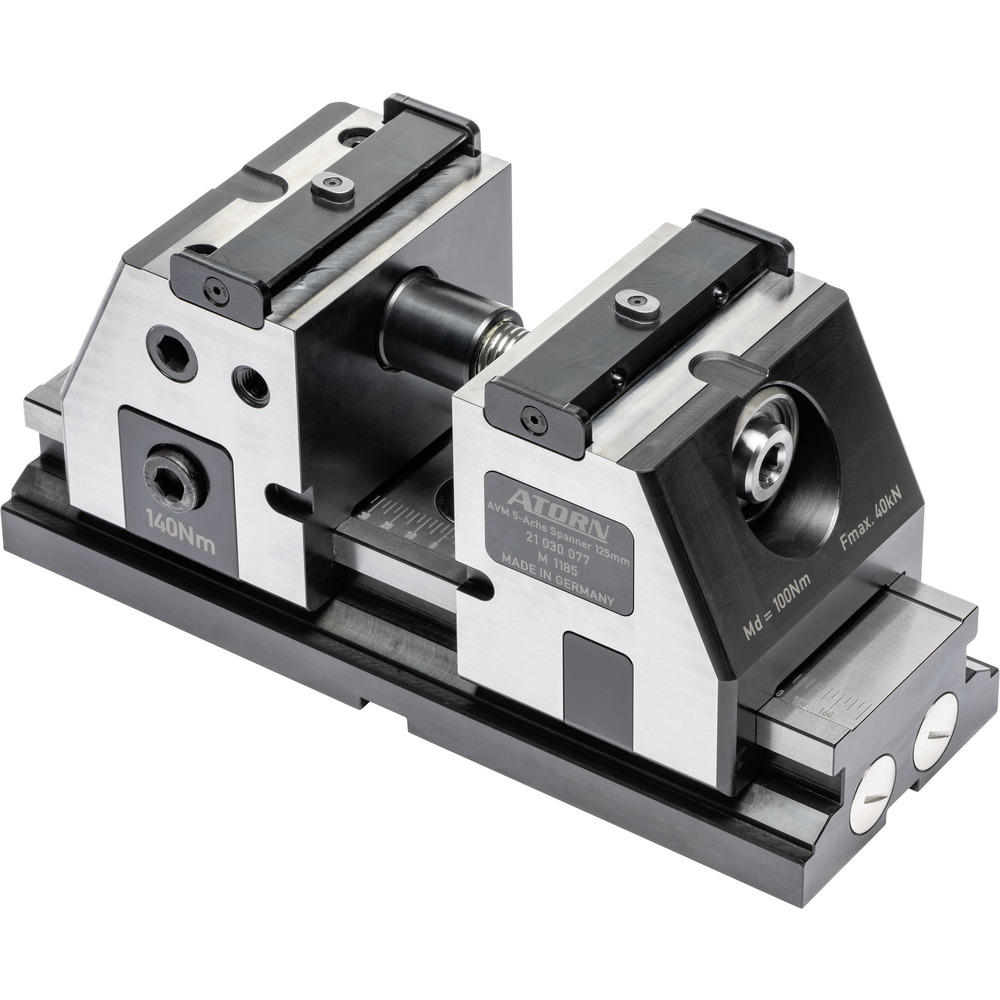

5-axis clamp AVM-125
The ATORN-AVM 125 is a manually mechanically actuated component clamp without power transmission for clamping workpieces made of all conventional materials.
It is designed as a 5-axis clamp with a fixed and a movable jaw.
The fixed jaw can be adjusted and clamped using a clamping screw and offers optimal accessibility and flexible application options.
These properties facilitate the precise transfer of machine accuracy to the workpiece.

• Manual workpiece clamp for 5-axis machining
• Large clamping range of up to 195 mm for machining workpieces of various sizes and geometries
• High accuracy transfer from the machine to the workpiece
• Good accessibility (low interference contour)
• Easy handling and cleaning
• Bearing-supported spindle for clamping force generation
• High clamping force (40kN at 100Nm tightening torque)
• Central clamping screw for loosening and locking of the fixed base jaw on the base rail
• Base body with scale for adjustment and pre-positioning of the fixed base jaw
• Quick clamping range adjustment through jaw quick-change system reduces set-up times​

5-axis clamp AVM-125

• Supplied without clamping jaws
