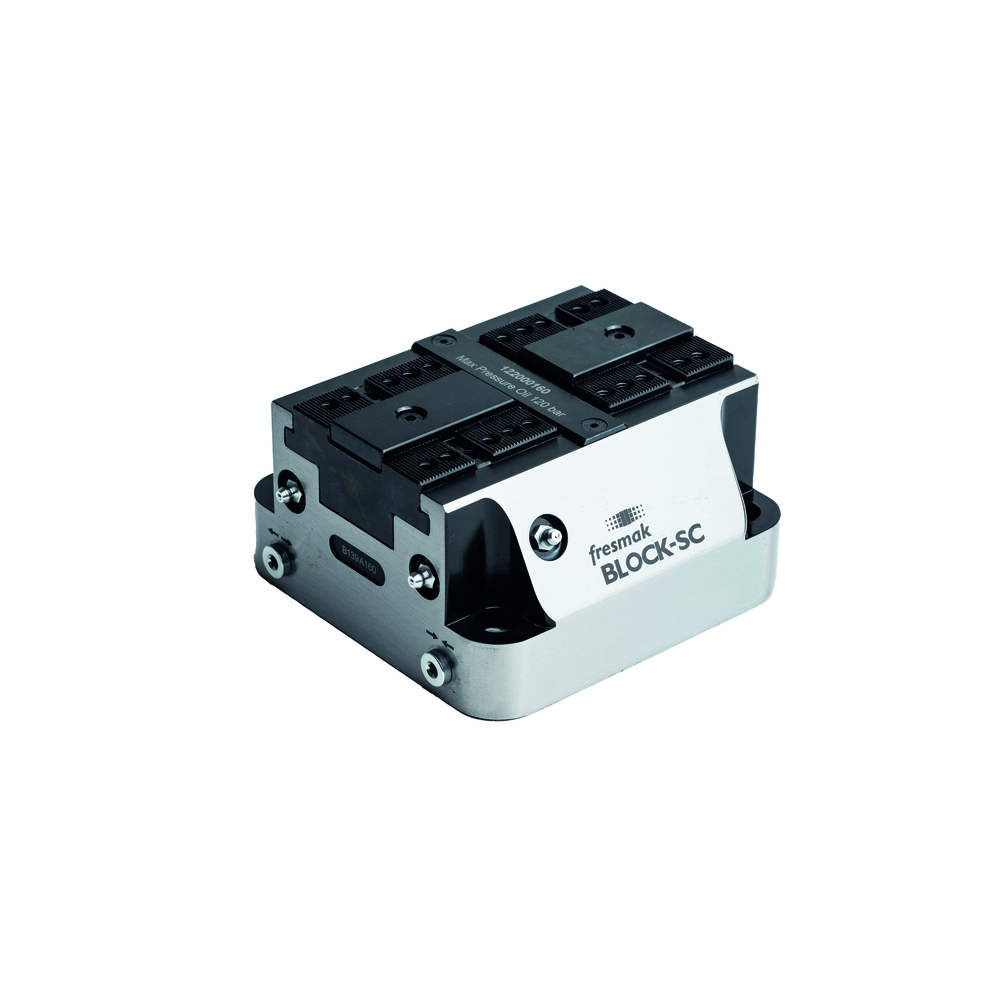

Power clamping block BLOCK-SC pneumatic and hydraulic
The BLOCK-SC create the best conditions for the automated clamping of workpieces in small or medium-sized machining centres. Optimised for use in multi-axis machines. Workpieces can be machined from all sides with short tools. Their design allows positioning with minimal intermediate distance and thus optimal use of the machine table. The BLOCK-SC power clamping blocks combine clamping force with a long automatic advance and return stroke for easy workpiece changes in automation. The BLOCK-SC guarantees a wide range of problem-free clamping operations with maximum precision and repeat accuracy.

• 6 and 8 mm stroke
• Long guides and with hardened basic components
• Basic surfaces are ground
• Compact design and fully protected against chips
• Total lubrication system. Greasing channels within the base jaw and base body
• Oil or air can be supplied for actuation and lubrication both laterally and through the base plate
• Double effect actioning
• Supplied without jaws, including 2 fixing pins and 4 fastening screws

Power clamping block BLOCK-SC hydr.

• 40 kN clamping force at 120 bar oil pressure
• Serration 1.5 x 60°
• All dimensions without jaws
