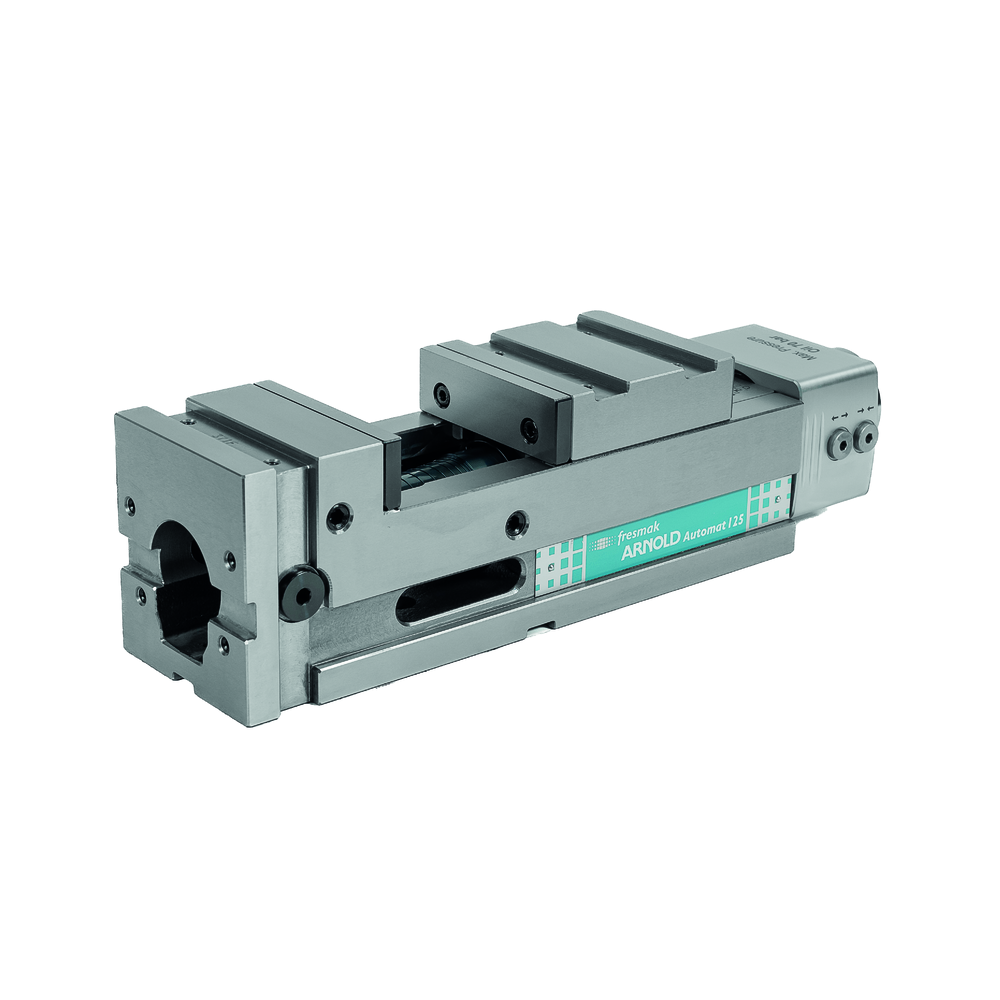

ARNOLD-MAT Automatic hydraulic high-pressure clamp
TIPS FOR USE
Should reverse clamping be needed, just place the spindle at the rear part of the fixed head, clamped by four screws.
Then rotate the spindle shoe and the moveable jaw.


ELEMENTS REQUIRED
Hydraulic unit or double effect 70 bar pneumo-hydraulic pump with vice unit connection hose, pressure control switch, safety valve integrated into the unit and ON-OFF switch and manometer.

• Designed to automate processes and robotise them
• Two clamping possibilities of the workpiece, either towards the fixed head or in reverse direction
• 4 mm automatic stroke for closing and opening
• Oil-dynamic, double-acting spindle
• Clamping force directly proportional to oil pressure input
• Supplied with
  Base body
  Automatic spindle
  1 set of smooth clamping jaws
  1 handle
  4 flanges

ARNOLD-Mat automatic hydraulic
