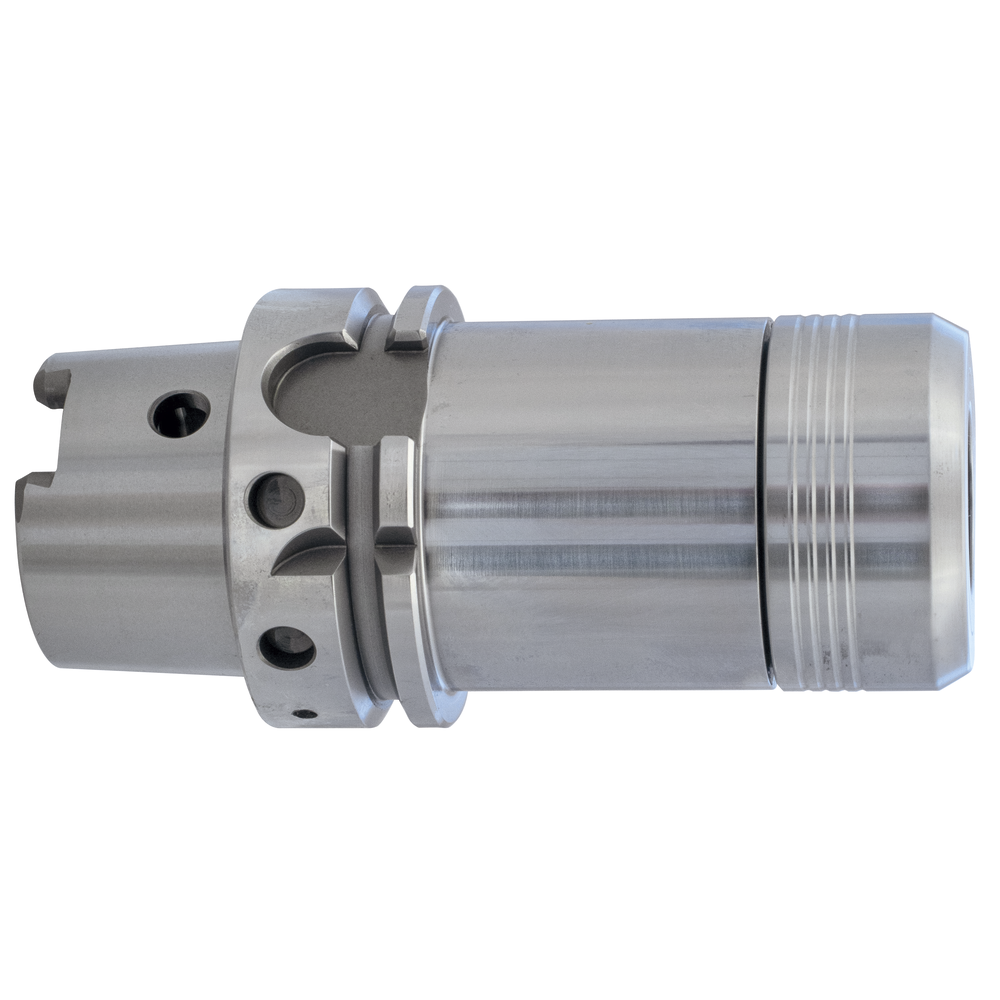

Heavy Duty clamping nut HDC32C-HSK-A100-A=100 (conical)

Heavy Duty clamping nut HDC32C-HSK-A100-A=100 (conical)
Heavy Duty clamping nut HDC32C-HSK-A100-A=100 (conical) Heavy Duty clamping nut HDC32C-HSK-A100-A=100 (conical) Heavy Duty clamping nut HDC32C-HSK-A100-A=100 (conical)
Price:
384,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
True-running accuracy 1 µm

Heavy Duty clamping nut HDC-32
  • High stability and radial rigidity with reinforced chuck body
  • Trapezoidal fine thread in the clamping nut leads to optimum conversion of the tightening torques into clamping force
  • Ball bearing-mounted clamping nut prevents twisting of the collet and reduces vibrations
  • High concentricity due to full fit of the collet in the chuck cone
  • Delivery includes clamping nut without roller clamping key

DIN 69893 Form A
  • For collet size ER32

True-running accuracy 1 µm

Heavy Duty clamping nut HDC-32
  • High stability and radial rigidity with reinforced chuck body
  • Trapezoidal fine thread in the clamping nut leads to optimum conversion of the tightening torques into clamping force
  • Ball bearing-mounted clamping nut prevents twisting of the collet and reduces vibrations
  • High concentricity due to full fit of the collet in the chuck cone
  • Delivery includes clamping nut without roller clamping key

DIN 69893 Form A
  • For collet size ER32

Article no./ATORN no.
4313351010
Vendor Article no.
47186311005
Packaging unit
1
Catalogue page
KS-1182

Technical characteristics

A 100 mm
A 100 mm
Angle 10° °
Angle 10° °
D 53 mm
D 53 mm
D1 67 mm
D1 67 mm
L4 66 mm
L4 66 mm
Taper type HSK 100
Taper type HSK 100
