Werkzeugaufnahme für WP-Bohrer DIN69893HSK A100,, d=20mm A=90mm D=40mm

Werkzeugaufnahme für WP-Bohrer DIN69893HSK A100,, d=20mm A=90mm D=40mm
Werkzeugaufnahme für WP-Bohrer DIN69893HSK A100,, d=20mm A=90mm D=40mm
Price:
232,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

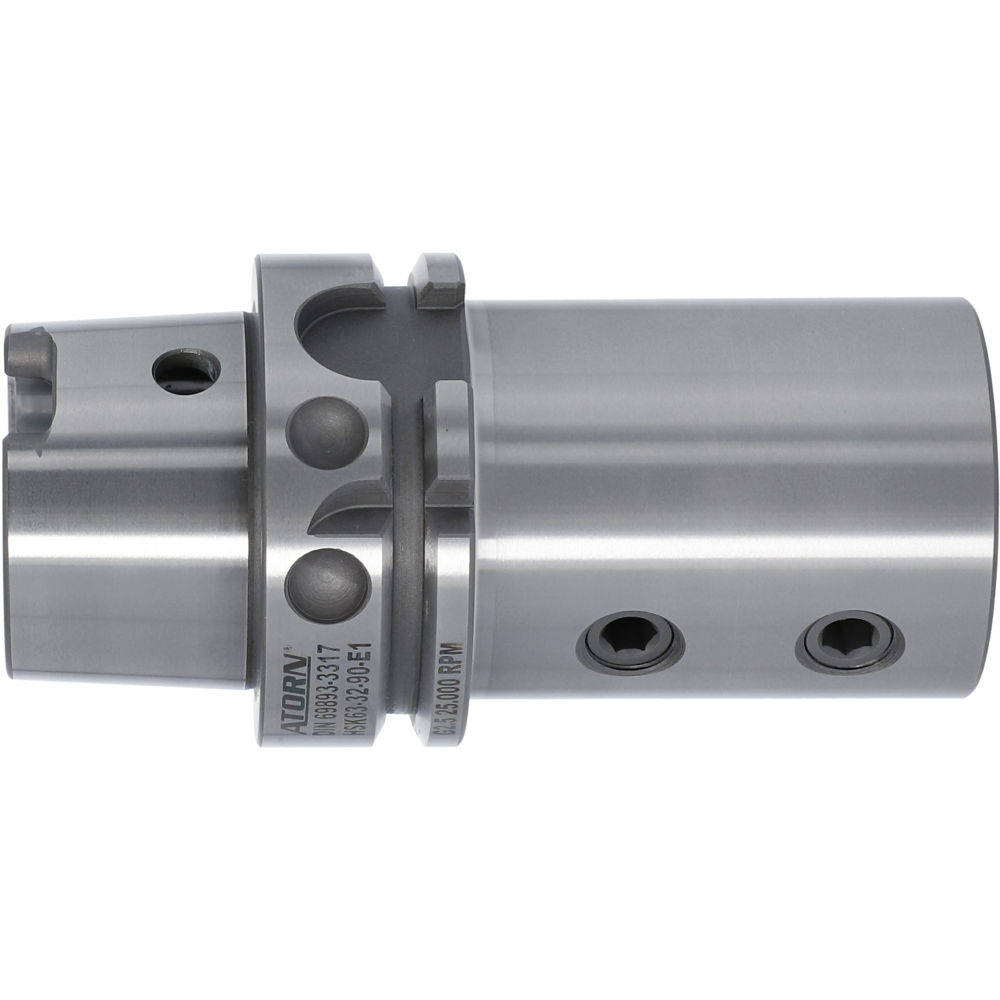

Tool holding fixture for indexable insert drill bits
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Additional versions available on request

DIN 69893 HSK-A
Tool holding fixture for indexable insert drill bits
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Additional versions available on request

DIN 69893 HSK-A
Article no./ATORN no.
4345411020 / 22661008
Packaging unit
1
Catalogue page

Technical characteristics

A 90 mm
Aussendurchmesser 40 mm
D 40 mm
D1 20 mm
DIN 69893-1
Einspanntiefe 46 mm
Form A
Freilänge bis zum Bund 61 mm
Taper type HSK 100
Werkzeugaufnahme HSK 100
Wuchtgüte G 2,5 bei 25000 1/min
