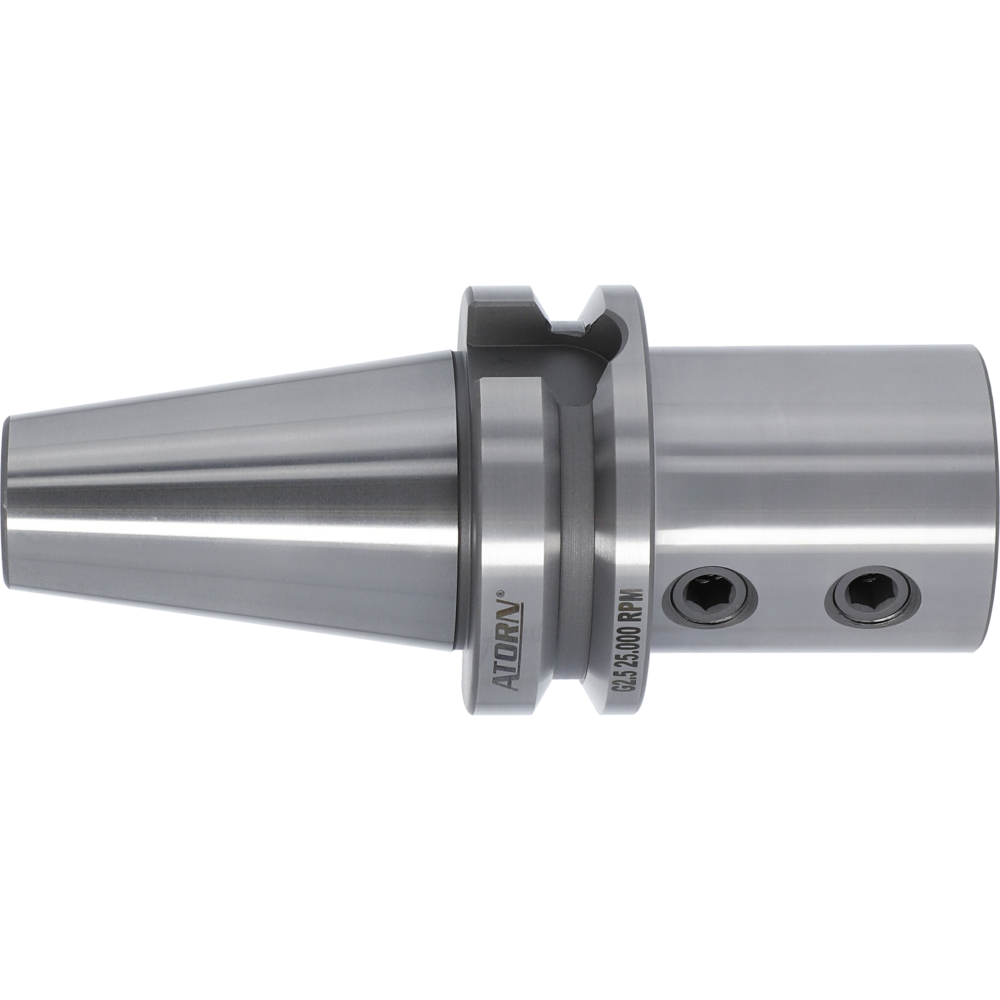

Werkzeugaufnahme für WP-Bohrer DIN ISO 7388-2 BT40, d=20mm A=72mm D=40mm

Werkzeugaufnahme für WP-Bohrer DIN ISO 7388-2 BT40, d=20mm A=72mm D=40mm
Werkzeugaufnahme für WP-Bohrer DIN ISO 7388-2 BT40, d=20mm A=72mm D=40mm
Price:
75,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Tool holding fixture for indexable insert drill bits
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Additional versions available on request

DIN ISO 7388-2
Tool holding fixture for indexable insert drill bits
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Additional versions available on request

DIN ISO 7388-2
Article no./ATORN no.
4345424020 / 22661020
Packaging unit
1
Catalogue page

Technical characteristics

A 72 mm
Aussendurchmesser 40 mm
D 40 mm
D1 20 mm
Einspanntiefe 56 mm
Form JD
Freilänge bis zum Bund 46 mm
ISO 7388-2
Taper type BT 40
Werkzeugaufnahme BT 40
Wuchtgüte G 2,5 bei 25000 1/min
