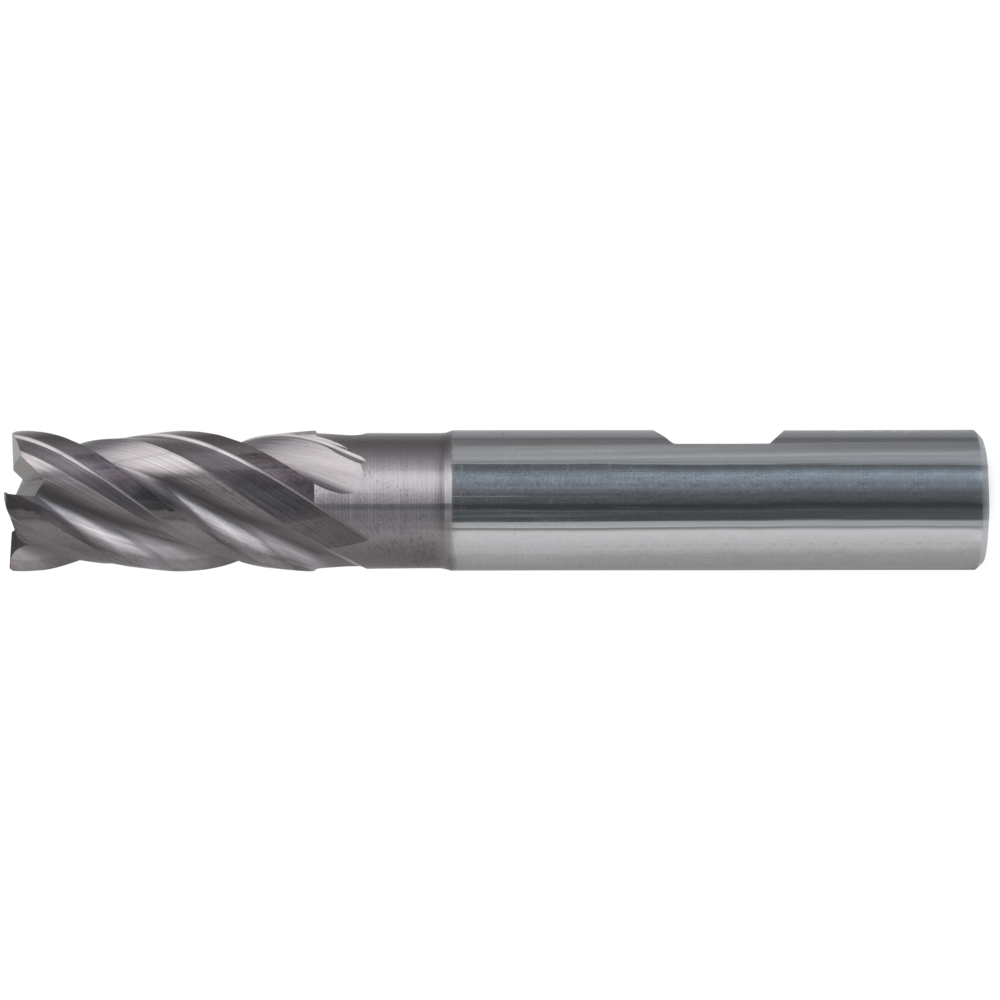

SC end mill. cutt. 35°/38° 3mm clear. (steel/cast iron) 4 cutt. edg., HB, AlTiN+

SC end mill. cutt. 35°/38° 3mm clear. (steel/cast iron) 4 cutt. edg., HB, AlTiN+
SC end mill. cutt. 35°/38° 3mm clear. (steel/cast iron) 4 cutt. edg., HB, AlTiN+ SC end mill. cutt. 35°/38° 3mm clear. (steel/cast iron) 4 cutt. edg., HB, AlTiN+
Price:
18,90 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

End milling cutters
  • With clearance
  • Unequal helix angle and pitch for low-vibration milling
  • With protective chamfer F for improved service life

Article no./ATORN no.
2543000030
Vendor Article no.
1180467T1
Packaging unit
1
Catalogue page
KS-0428
Cutting values
SW-0768

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Ja
Coating AlTiN+
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6 mm
D3 2,8 mm
F x 45° 0,15 mm
Feed for grooving fz steel < 1000 mm² 0,012 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,015 mm/tooth
L 57 mm
L1 8 mm
L2 15 mm
Tool holding device HB parallel shank
Twist angle 35° | 38°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
