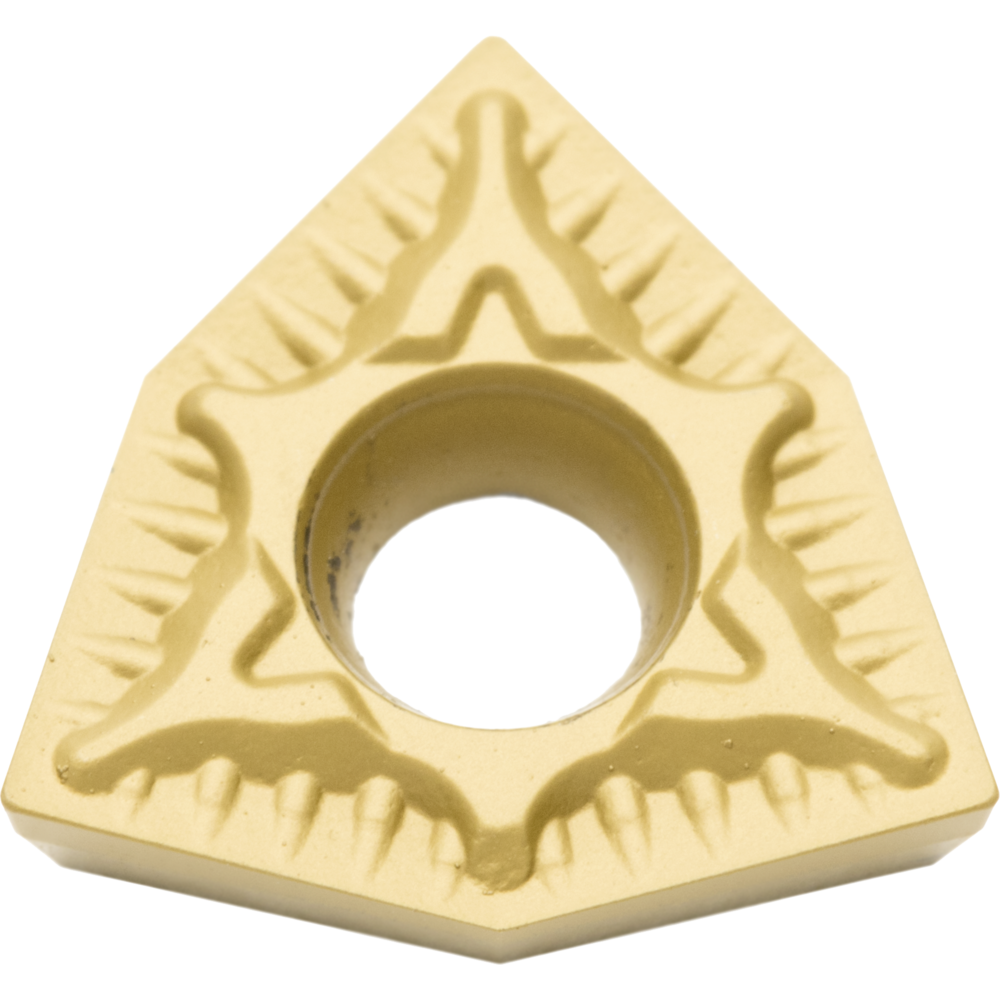

Indexable cutting insert WCHX 040102 HC7625

Indexable cutting insert WCHX 040102 HC7625
Indexable cutting insert WCHX 040102 HC7625
Price:
17,95 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Indexable cutting inserts WCHX
  • Solid carbide indexable cutting inserts WCHX for facing and longitudinal turning, drilling, countersinking and chamfering
  • HW7310 uncoated
    innovative cutting edge geometry with extremely sharp cutting edges for reliable machining of non-ferrous metals
    very hard substrate for long service lives
    very good chip breaking thanks to chip breaker
  • HC7625 coated (TiN)
    universal and reliable use in steel and stainless steel
    excellent combination of wear resistance and toughness
  • HC7535 coated (TiAlN)
    universal and reliable use in steel and stainless steel with increased impact loads
    optimised for machining in unfavourable cutting conditions

Indexable cutting inserts WCHX
  • Solid carbide indexable cutting inserts WCHX for facing and longitudinal turning, drilling, countersinking and chamfering
  • HW7310 uncoated
    innovative cutting edge geometry with extremely sharp cutting edges for reliable machining of non-ferrous metals
    very hard substrate for long service lives
    very good chip breaking thanks to chip breaker
  • HC7625 coated (TiN)
    universal and reliable use in steel and stainless steel
    excellent combination of wear resistance and toughness
  • HC7535 coated (TiAlN)
    universal and reliable use in steel and stainless steel with increased impact loads
    optimised for machining in unfavourable cutting conditions

Article no./ATORN no.
1296400402 / 12230285
Packaging unit
10
Catalogue page

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 4,0 mm
ap min. 1,8 mm
ap min./max. 1,8-4,0 mm
Bohrungsdurchmesser 2,25 mm
Design HC7625
Design HC7625
F max. 0,13 mm/rev
F min. 0,01 mm/rev
f min./max. 0,01-0,13 mm/U
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
Hartmetallsorte HC7625
ISO designation WCHX 040102
ISO designation WCHX 040102
Programmiermaß 6,35 mm
Radius 0,2 mm
Vc in Edelstahl max. 150 m/min
Vc in Edelstahl min. 50 m/min
Vc in Edelstahl min./max. 50-150 m/min
Vc in Guss max. 180 m/min
Vc in Guss min. 120 m/min
Vc in Guss min./max. 120-180 m/min
Vc in Stahl max. 250 m/min
Vc in Stahl min. 100 m/min
Vc in Stahl min./max. 100-250 m/min
Wendeschneidplattendicke 1,59 mm
