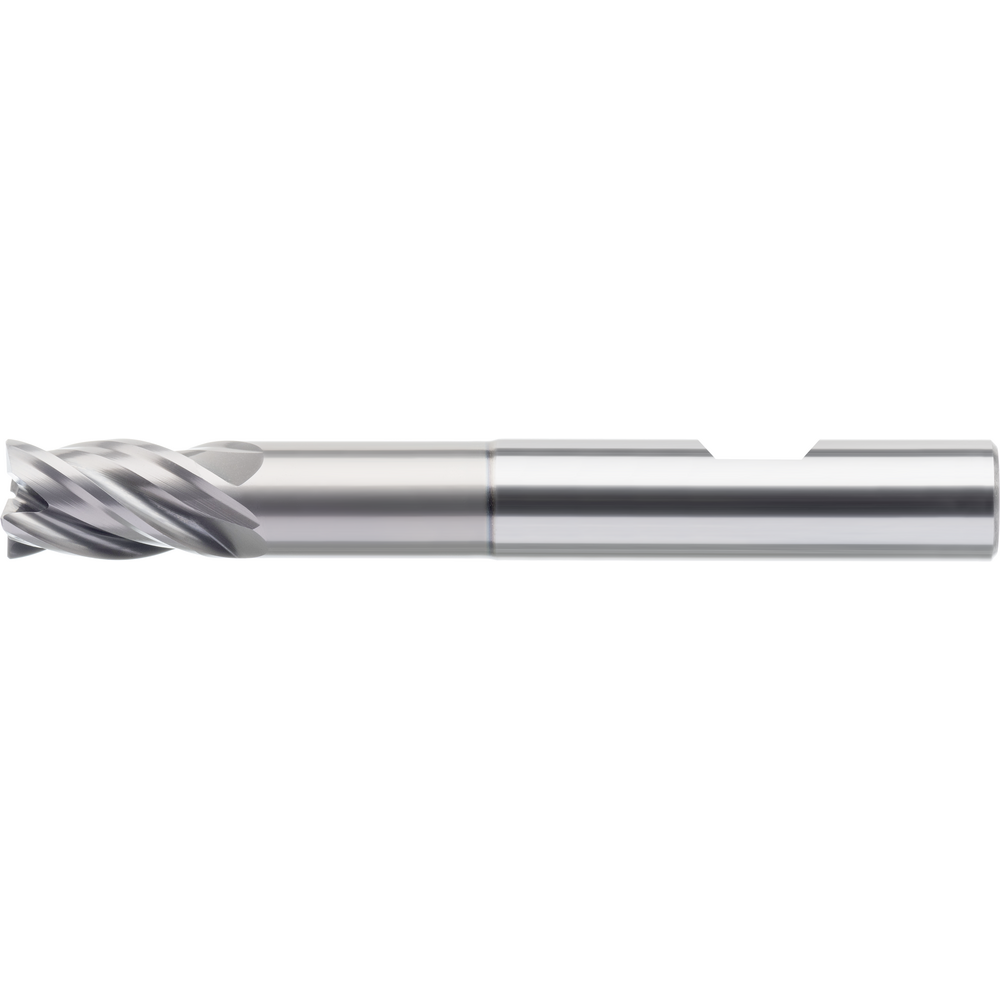

End milling cutter SC 35°/38° Ø6x9x29x65mm HB Ultra

End milling cutter SC 35°/38° Ø6x9x29x65mm HB Ultra
End milling cutter SC 35°/38° Ø6x9x29x65mm HB Ultra End milling cutter SC 35°/38° Ø6x9x29x65mm HB Ultra
Price
56,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
HPC Power end milling cutter, steel
  • Irregular helix angle and pitch for low-vibration milling
  • With protective chamfer F for improved tool life and stable face cutter, double protected
  • Optimised face-cutter geometry with large chip spaces
  • Radius-shaped face gashing for improved chip removal
  • Defined cutting-edge rounding
  • With clearance
  • ULTRA coated for maximum service life

Extra-long
Article no./ATORN no.
2545130060 / 10617271
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating TiAlN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
D3 5,7 mm
Design 6535-HB
Durchmesser max. 20 mm
Durchmesser min. 6 mm
Durchmesser min./max. 6-20 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
F x 45° 0,2 mm
Feed fz steel < 1000 N/mm² 0,07 mm/tooth
Feed fz steel < 1000 N/mm² 0,1 mm/tooth
fitness hartl total 3
Form Corner
Freistellungslänge 29 mm
fz Stahl 1000 0,05 mm
L 65 mm
L1 9 mm
L2 29 mm
Rake angle 5 °
Suitable for material group H 3
Suitable for material group K 1
Suitable for material group M 3
Suitable for material group N 3
Suitable for material group P 1
Suitable for material group S 3
Surface ULTRA
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 35° | 38°
Type N
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
ASSET_MatSafetyDataSheet Download
Cutting values Download
