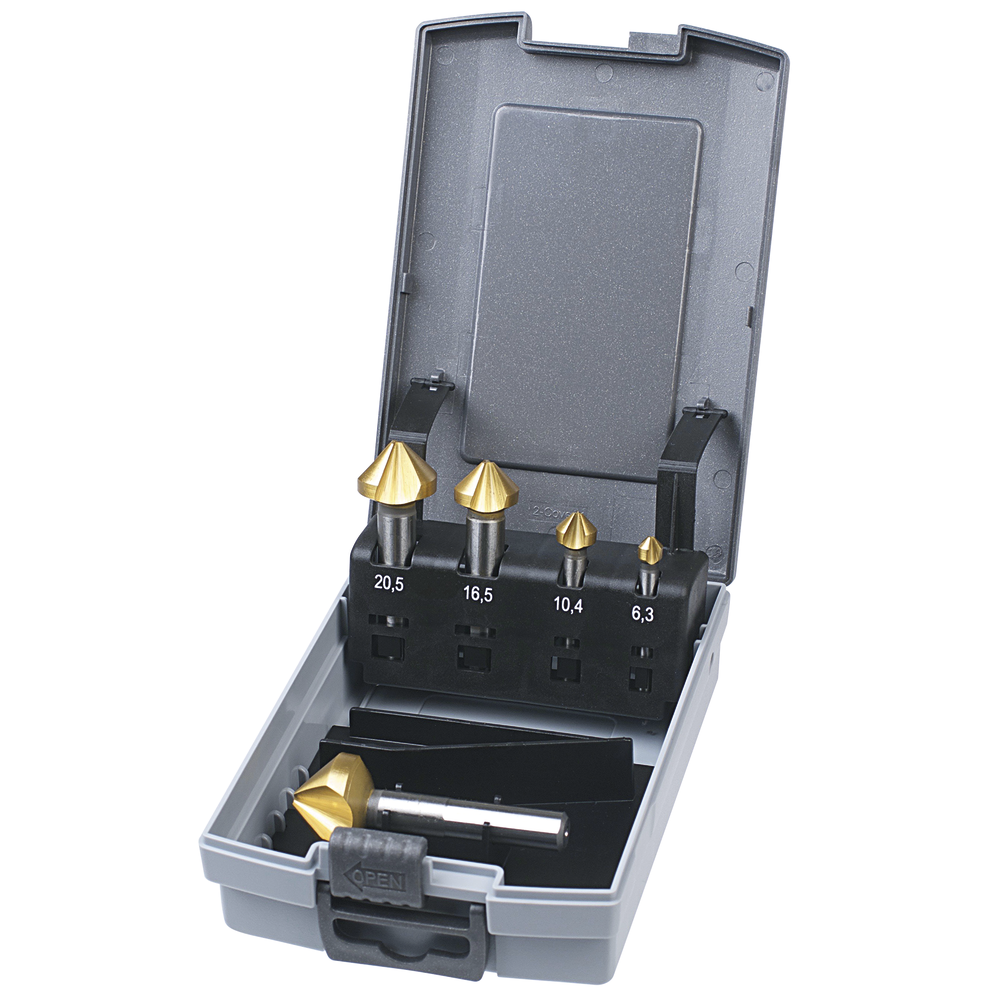

Countersink HSS 90° 6.3-25 mm fine pitch TiN (5 pcs.)

Countersink HSS 90° 6.3-25 mm fine pitch TiN (5 pcs.)
Countersink HSS 90° 6.3-25 mm fine pitch TiN (5 pcs.) Countersink HSS 90° 6.3-25 mm fine pitch TiN (5 pcs.) Countersink HSS 90° 6.3-25 mm fine pitch TiN (5 pcs.) Countersink HSS 90° 6.3-25 mm fine pitch TiN (5 pcs.) Countersink HSS 90° 6.3-25 mm fine pitch TiN (5 pcs.)
Price
204,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Patented shank and irregular pitch

ADVANCED taper and deburring countersinks
  • 3 cutting edges
  • HSS and HSS TiN cutting material
  • New cutting edge geometry prevents uneven wear of the cutting edges
  • High degree of wear resistance and hot hardness for maximum service life
  • High true running accuracy with considerably reduced force application
  • Patented shank to stop rotation of the countersink in the drill chuck with optimum torque transfer (from Ø 8.3 mm)

Sets
Article no./ATORN no.
1502711000
Packaging unit
1
Catalogue page
KS-0313
Cutting values
SW-0407

Technical characteristics

Angle of the tip - S 90 °
Coating TiN
Contents 6,3 mm | 8,3 mm | 10,4 mm | 12,4 mm | 16,5 mm | 20
Cutting data Cutting angle Information - yes
Cutting material HSS
Design TiN
DIN 335C
S 90 °
Tool holding device Parallel shank with three tightening surfaces

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
