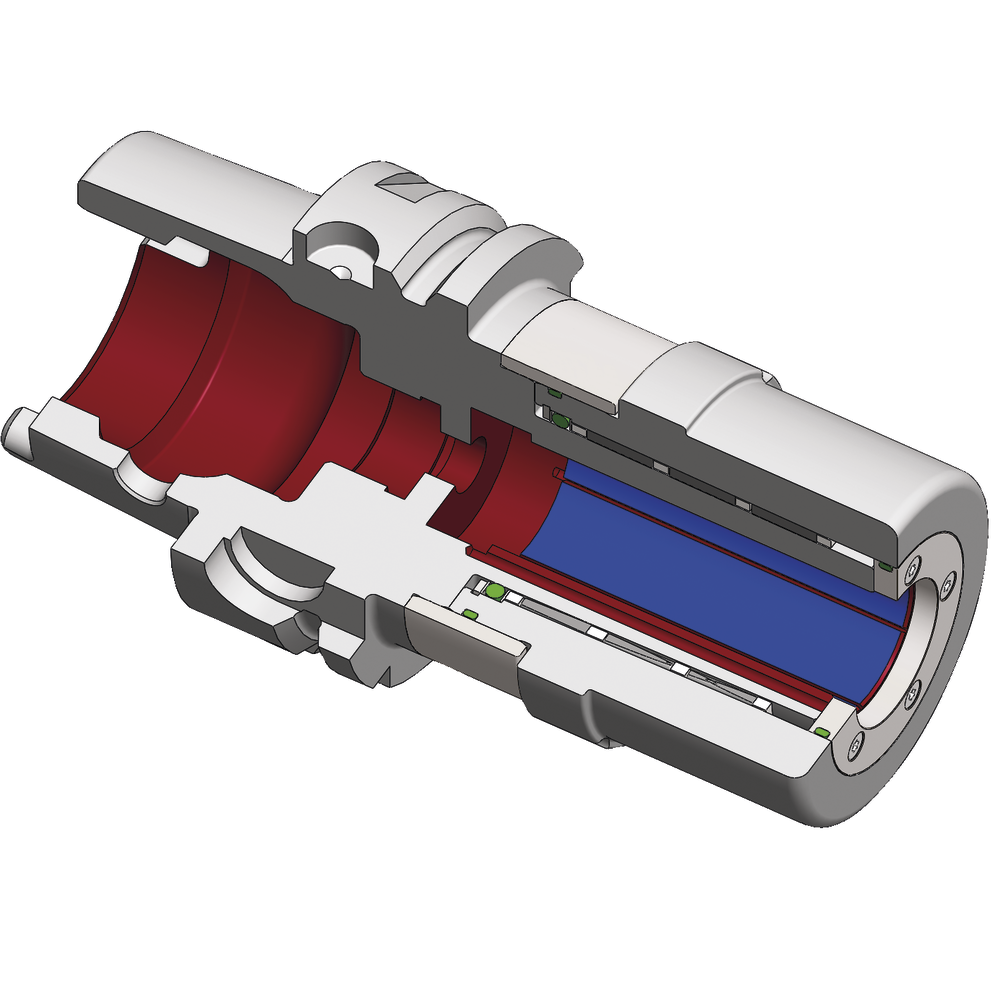

Power chuck UltraGrip^®

• Optimised radial run-out thanks to single-piece base body
• Maximum clamping force and stability thanks to clamping via rotary clamping nuts and needle bearings, thus clamping force of up to 4000Nm depending on Ø
• High precision and balance quality
• Flexible use thanks to reducing bushes
• Vibration-damping effect thanks to size and multi-part design
• Maximum protection against milling tools being extracted
• Internal coolant supply up to 80 bar suitable
• Maintenance-free technology
• Supplied without chuck key
• balanced G2.5 / 20,000 rpm

HSK-A DIN 69893

• Internal coolant supply
• when machining with internal coolant supply, a coolant transfer pipe art.no. 431011.... should be used

Power chuck UltraGrip^®

• Optimised radial run-out thanks to single-piece base body
• Maximum clamping force and stability thanks to clamping via rotary clamping nuts and needle bearings, thus clamping force of up to 4000Nm depending on Ø
• High precision and balance quality
• Flexible use thanks to reducing bushes
• Vibration-damping effect thanks to size and multi-part design
• Maximum protection against milling tools being extracted
• Internal coolant supply up to 80 bar suitable
• Maintenance-free technology
• Supplied without chuck key
• balanced G2.5 / 20,000 rpm

HSK-A DIN 69893

• Internal coolant supply
• when machining with internal coolant supply, a coolant transfer pipe art.no. 431011.... should be used
