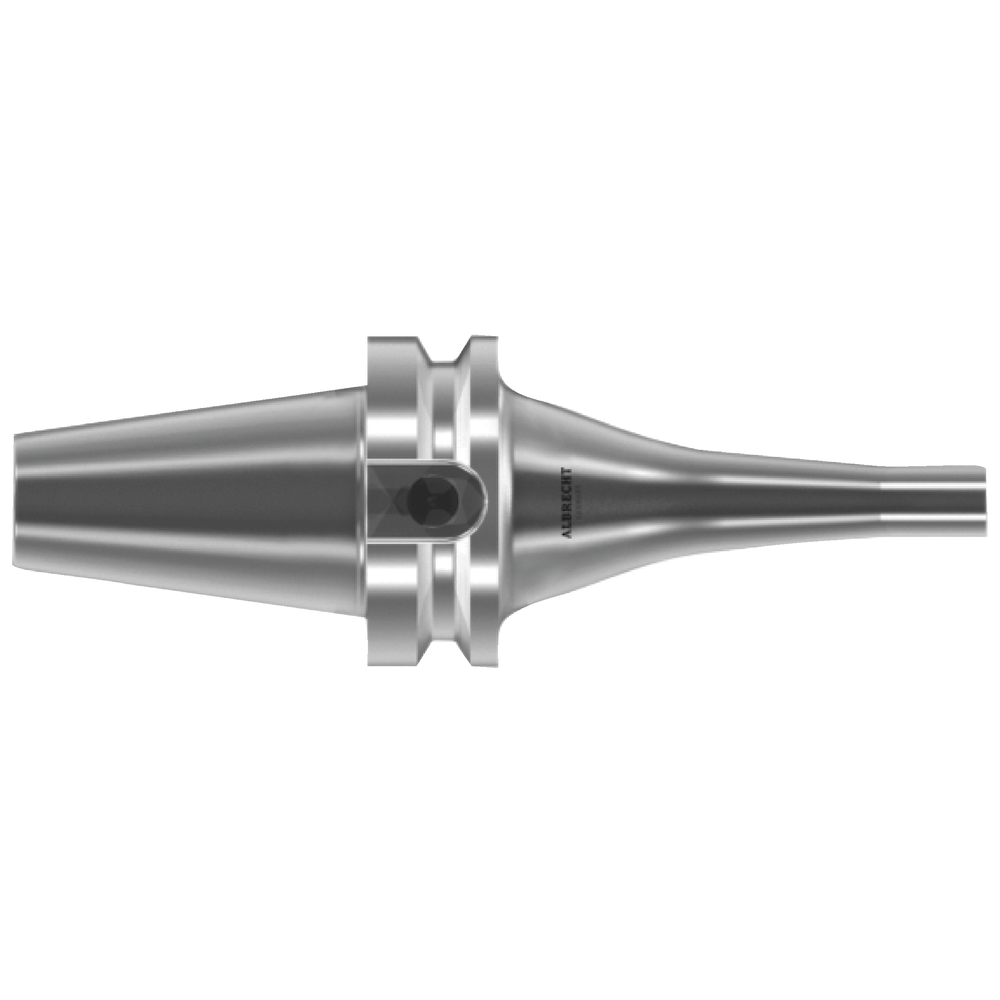

Micro-Präzisions-Spannfutter AMC JIS B6339-BT-AD30 1-6mm A=75mm

Micro-Präzisions-Spannfutter AMC JIS B6339-BT-AD30 1-6mm A=75mm
Micro-Präzisions-Spannfutter AMC JIS B6339-BT-AD30 1-6mm A=75mm Micro-Präzisions-Spannfutter AMC JIS B6339-BT-AD30 1-6mm A=75mm
Price:
263,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Micro precision chuck AMC
  • Ideal for micro-tools
  • Clamping range 1.0 to 6.0 mm
  • Optional peripheral or central cooling
  • Improved damping compared with shrink-fit technology
  • Slim protruding contour D1 = 13.5 mm
  • Perfect concentricity < 3 µm for 2.5 x D
  • Pre-balanced to G 2.5 / 25,000 rpm

DIN ISO 7388-2 AD (JIS B 6339)
  • Internal coolant supply

Micro precision chuck AMC
  • Ideal for micro-tools
  • Clamping range 1.0 to 6.0 mm
  • Optional peripheral or central cooling
  • Improved damping compared with shrink-fit technology
  • Slim protruding contour D1 = 13.5 mm
  • Perfect concentricity < 3 µm for 2.5 x D
  • Pre-balanced to G 2.5 / 25,000 rpm

DIN ISO 7388-2 AD (JIS B 6339)
  • Internal coolant supply

Article no./ATORN no.
4431404007
Vendor Article no.
310 2006 430 1
Packaging unit
1
Catalogue page

Technical characteristics

A 75 mm
A 75 mm
D1 13,5 mm
D1 13,5 mm
D2 15,2 mm
D2 15,2 mm
L1 20 mm
L1 20 mm
L2 30 mm
L2 30 mm
L4 53 mm
L4 53 mm
Shank BT 40
Shank BT 40
Weight 0,49 kg
Weight 0,49 kg
