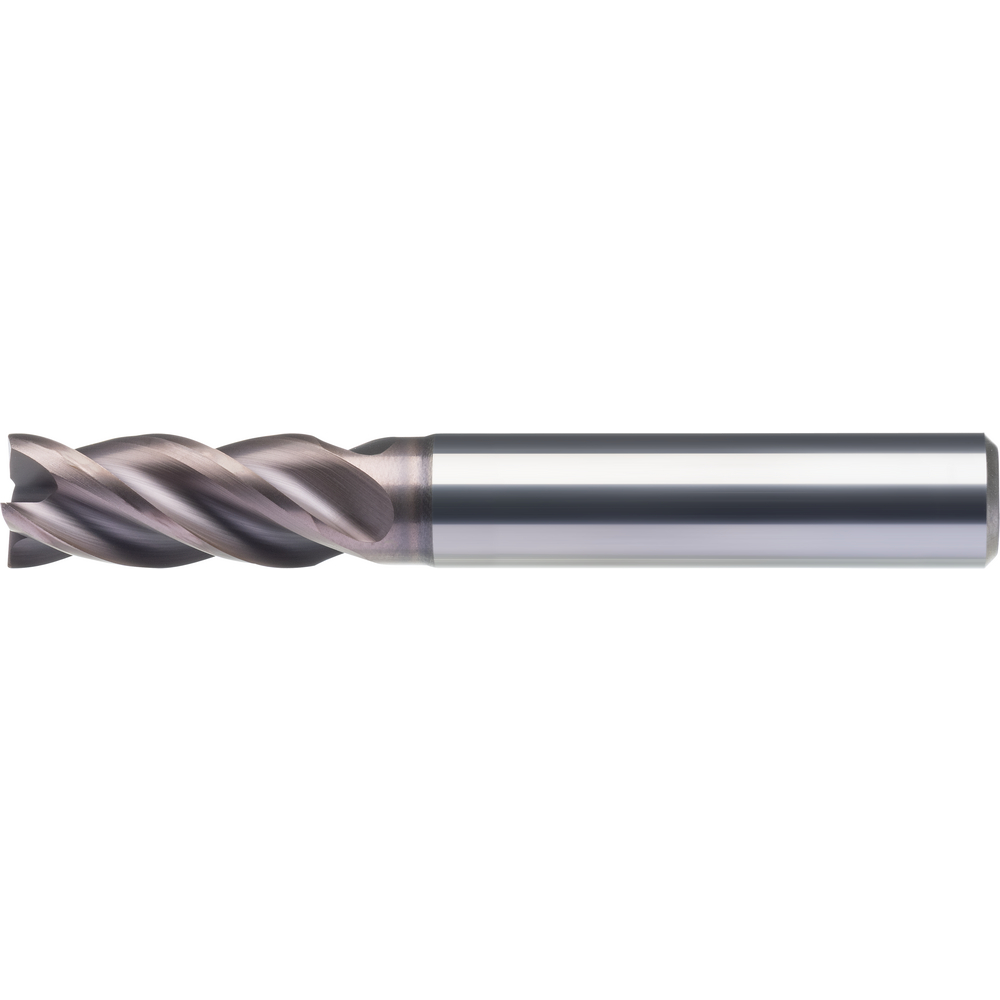

Bohr- und Tauchfräser VHM HPC Ø6x13x20x57 Z4 HB ULTRA IK

Bohr- und Tauchfräser VHM HPC Ø6x13x20x57 Z4 HB ULTRA IK
Bohr- und Tauchfräser VHM HPC Ø6x13x20x57 Z4 HB ULTRA IK Bohr- und Tauchfräser VHM HPC Ø6x13x20x57 Z4 HB ULTRA IK Bohr- und Tauchfräser VHM HPC Ø6x13x20x57 Z4 HB ULTRA IK
Price
66,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Carbide HPC drilling and plunge milling cutter
  • 4 cutting edges Ultra-fine solid carbide milling cutter
  • Ramping, drilling, roughing and finishing with just one tool
  • Special face geometry allows for ramps of up to 45°
  • Uneven helix angle (41°, 43°, 45°) for extremely quiet running
  • Defined edge protection chamfer for optimal tool life
  • With clearance
  • TiAlN-coated

End milling cutter Z4 with internal cooling
Article no./ATORN no.
2541870060 / 10488017
Packaging unit
1
Catalogue page
KS-0452

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating ULTRA
Coolant supply Internal
Cutting material Solid carbide
D 6,0 mm
D1 6 mm
D3 5,7 mm
Design HB
F x 45° 0,06 mm
Feed fz steel < 1000 N/mm² 0,05 mm/tooth
L 57 mm
L1 13,0 mm
L2 20,0 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 36° | 37° | 38°
Z 4 pc.
