Bohr- und Tauchfräser VHM HPC ø4x11x18x57 Z4 HA ULTRA

Bohr- und Tauchfräser VHM HPC ø4x11x18x57 Z4 HA ULTRA
Bohr- und Tauchfräser VHM HPC ø4x11x18x57 Z4 HA ULTRA Bohr- und Tauchfräser VHM HPC ø4x11x18x57 Z4 HA ULTRA Bohr- und Tauchfräser VHM HPC ø4x11x18x57 Z4 HA ULTRA Bohr- und Tauchfräser VHM HPC ø4x11x18x57 Z4 HA ULTRA
Price
28,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

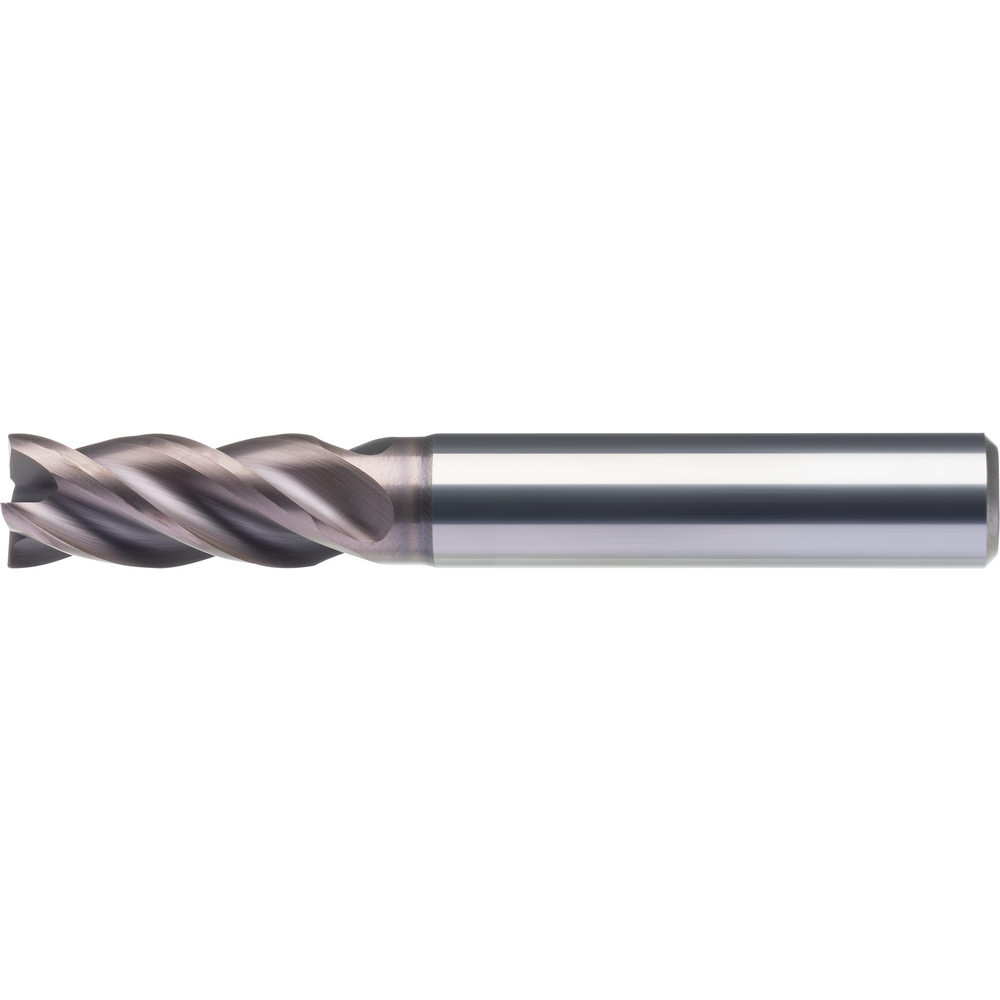

Carbide HPC drilling and plunge milling cutter
  • 4 cutting edges Ultra-fine solid carbide milling cutter
  • Ramping, drilling, roughing and finishing with just one tool
  • Special face geometry allows for ramps of up to 45°
  • Uneven helix angle (41°, 43°, 45°) for extremely quiet running
  • Defined edge protection chamfer for optimal tool life
  • With clearance
  • TiAlN-coated

End milling cutter VHM Z4 long
Article no./ATORN no.
2541970040 / 10487980
Packaging unit
1
Catalogue page
KS-0451

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating ULTRA
Coolant supply External
Cutting material Solid carbide
D 4,0 mm
D1 6 mm
D3 3,8 mm
Design HA
F x 45° 0,04 mm
Feed fz steel < 1000 N/mm² 0,03 mm/tooth
L 57 mm
L1 11,0 mm
L2 18,0 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Tooth pitch Unequal
Twist angle 36° | 37° | 38°
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
Catalogue page Download
