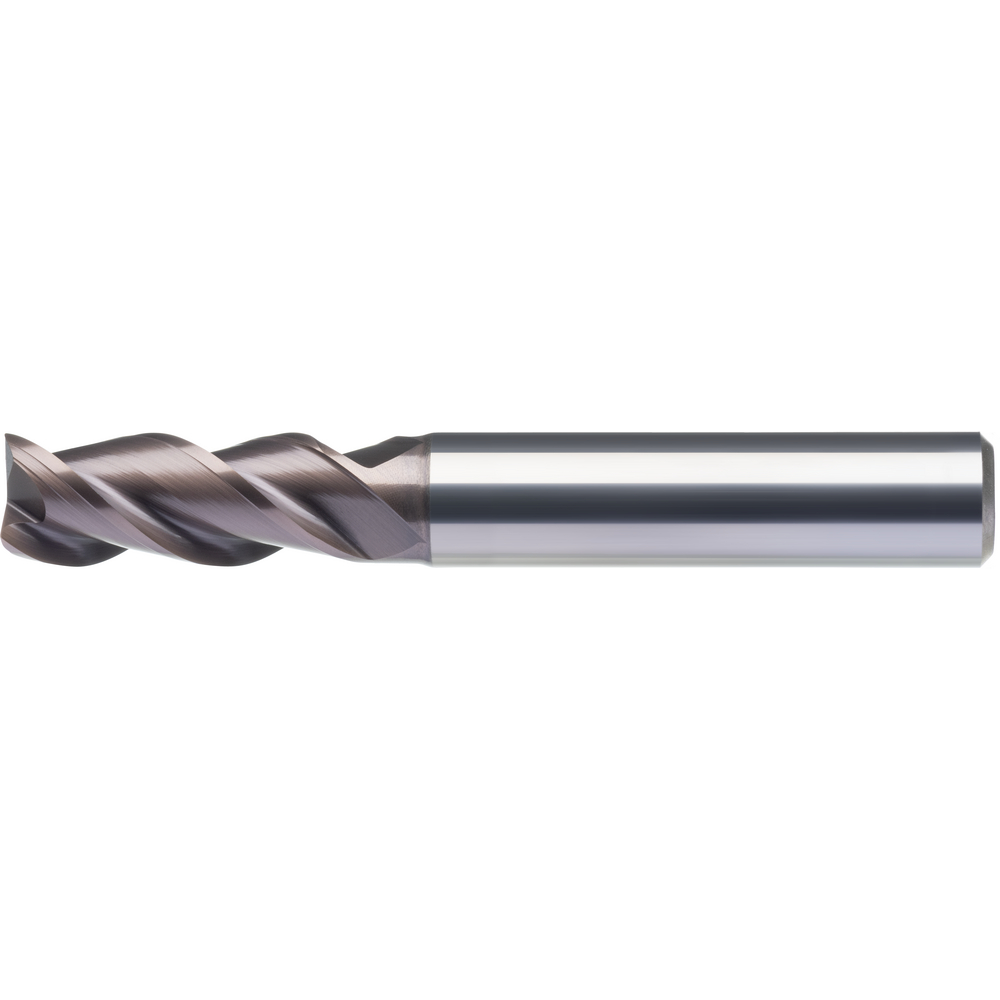

Bohr- und Tauchfräser VHM HPC ø6x13x20x57 Z3 HB ULTRA IK

Bohr- und Tauchfräser VHM HPC ø6x13x20x57 Z3 HB ULTRA IK
Bohr- und Tauchfräser VHM HPC ø6x13x20x57 Z3 HB ULTRA IK Bohr- und Tauchfräser VHM HPC ø6x13x20x57 Z3 HB ULTRA IK

We charge a material cost surcharge of 6,90% on this product.

Price
98,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

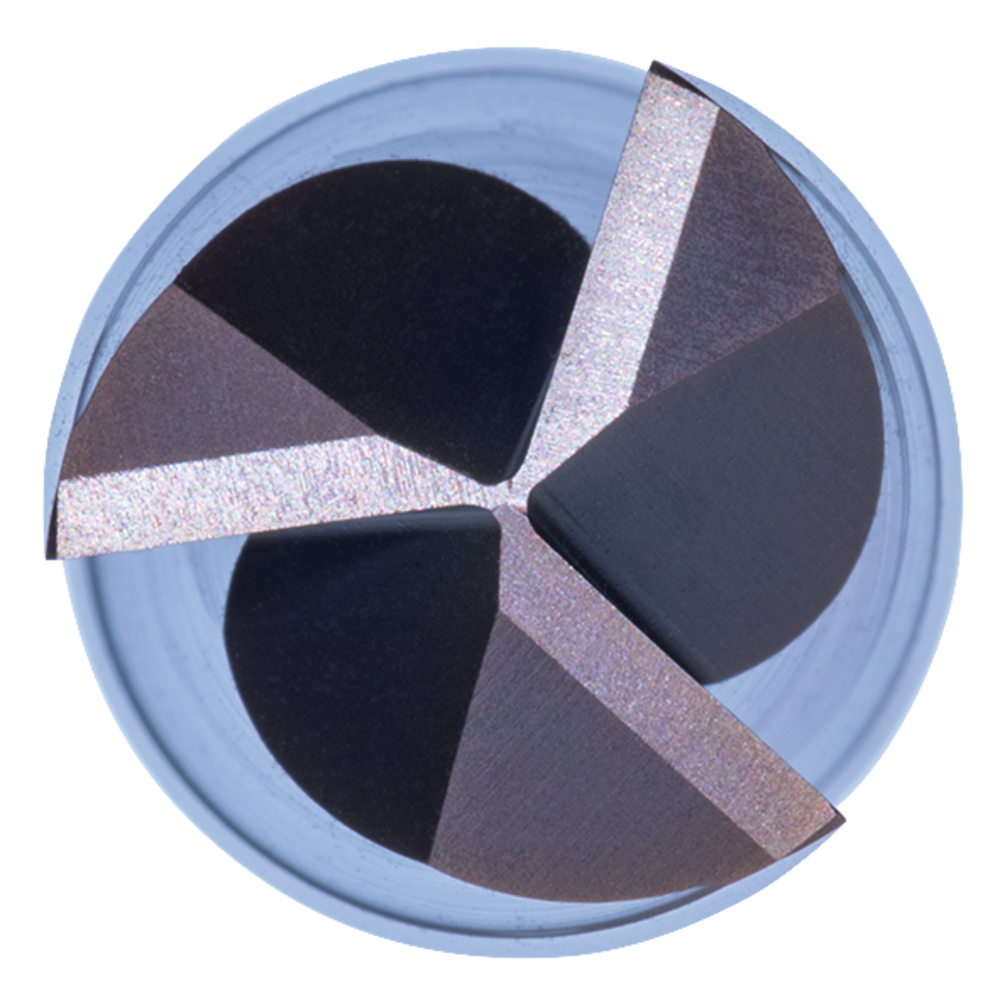

Carbide HPC drilling and plunge milling cutter
  • 3 cutting edges Ultrafine solid carbide milling cutter
  • Ramping, drilling, roughing and finishing with just one tool
  • Special face geometry allows for ramps of up to 45°
  • Uneven angle of twist (41°, 43°, 45°) for extremely quiet running
  • Defined edge protection chamfer for optimal tool life
  • With clearance
  • TiAlN-coated

End milling cutter Z3 with internal cooling
Article no./ATORN no.
2541830060 / 10488005
Packaging unit
1
Catalogue page
KS-0450

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating ULTRA
Coolant supply Internal radial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
D3 5.7 mm
Design HB
F x 45° 0.09 mm
Feed fz steel < 1000 N/mm² 0,05 mm/tooth
L 57 mm
L1 13 mm
L2 20 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 41° | 43° | 45°
Twist angle 41°;43°;45°
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
Catalogue page Download
