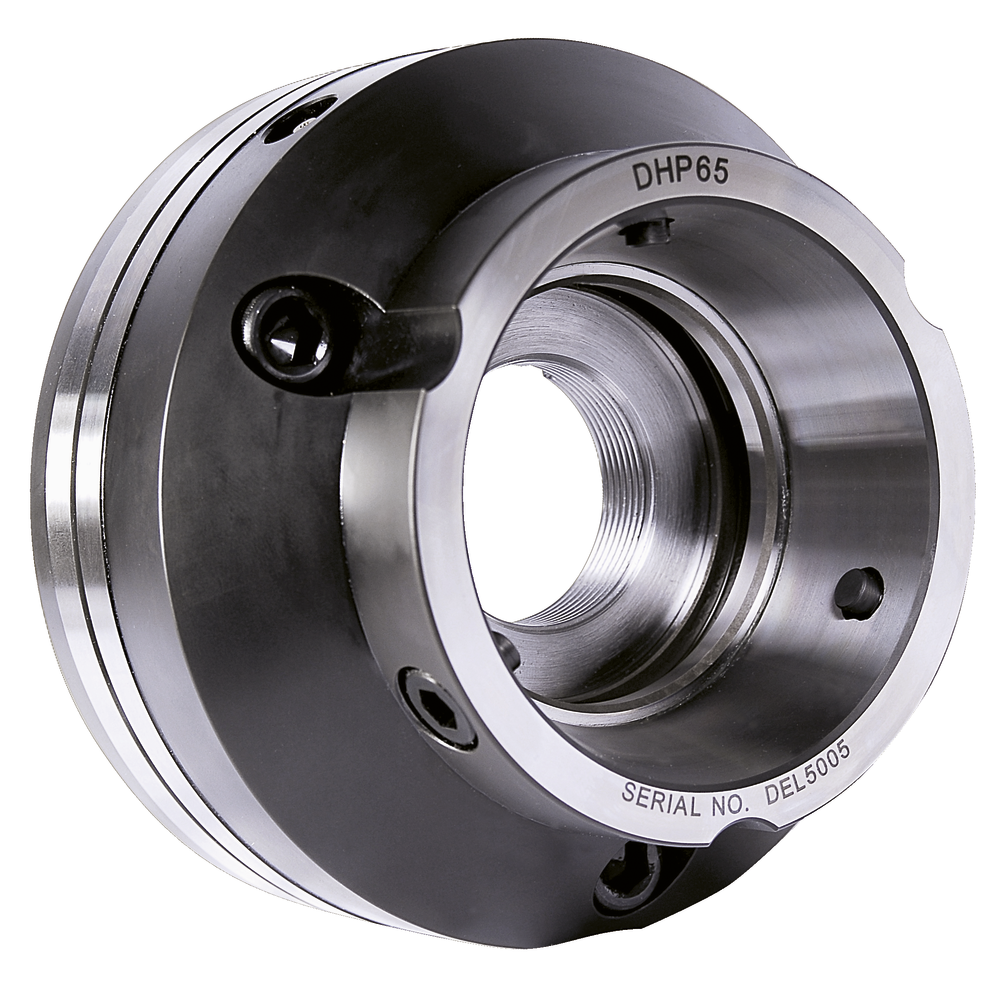

Collet chuck, power-operated DHP65-A5 (for clamping head 65mm), short taper 5

Collet chuck, power-operated DHP65-A5 (for clamping head 65mm), short taper 5
Collet chuck, power-operated DHP65-A5 (for clamping head 65mm), short taper 5 Collet chuck, power-operated DHP65-A5 (for clamping head 65mm), short taper 5 Collet chuck, power-operated DHP65-A5 (for clamping head 65mm), short taper 5
Price:
1.239,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
DHP power-operated collet chuck
  • Model DHP65
  • Compact design
  • High accuracy
  • Ideal for use in initial machining due to axial tension
  • Fully compatible with commercially available 65 mm clamping heads
  • Easily adaptable to existing machinery
  • DHP65 chucks are lightweight and can be fitted quickly
  • Supplied without collets or changing fixtures; includes blank unthreaded drawbar nut
  • Additional chucks available on request
  • Threaded drawbar nuts available on request

Clamping Ø max. 65 mm
DHP power-operated collet chuck
  • Model DHP65
  • Compact design
  • High accuracy
  • Ideal for use in initial machining due to axial tension
  • Fully compatible with commercially available 65 mm clamping heads
  • Easily adaptable to existing machinery
  • DHP65 chucks are lightweight and can be fitted quickly
  • Supplied without collets or changing fixtures; includes blank unthreaded drawbar nut
  • Additional chucks available on request
  • Threaded drawbar nuts available on request

Clamping Ø max. 65 mm
Article no./ATORN no.
4152010005
Vendor Article no.
DHP65-A5
Packaging unit
1
Catalogue page
KS-1134

Technical characteristics

Connection thread (for tie rod) max. M70 x 2
Connection thread (for tie rod) max. M70 x 2
D 165 mm
D 165 mm
D4 130 mm
D4 130 mm
Designation DHP-65/5
Designation DHP-65/5
L 95 mm
L 95 mm
Taper shank size 5
Taper shank size 5
