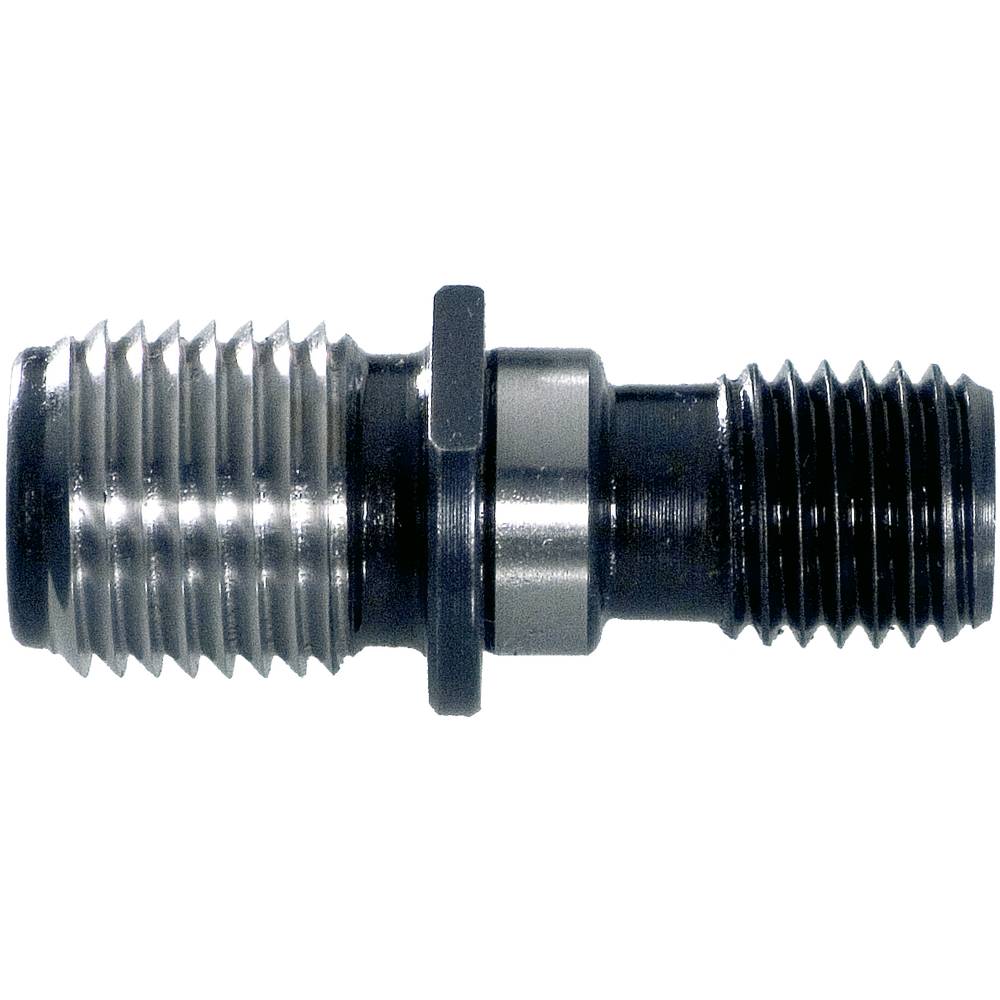

Pull stud special SK40 (S20x2) without bore

Pull stud special SK40 (S20x2) without bore
Pull stud special SK40 (S20x2) without bore Pull stud special SK40 (S20x2) without bore
Price:
19,70 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

Saw-tooth thread stud SK40 S20X2 for cover
Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

Saw-tooth thread stud SK40 S20X2 for cover
Article no./ATORN no.
4385200041 / 20800016
Packaging unit
1
Catalogue page
KS-1168

Technical characteristics

Anschlussgewinde S20 x 2
Coolant supply No
Coolant supply No
D S20 x 2 mm
D 17 mm
D 17 mm
D S20 x 2 mm
Design Without O-ring mm
Design Without O-ring mm
Drill hole
Drill hole
for thread M16
for thread M16
Gewindedurchmesser 16 mm
L 53 mm
L 53 mm
L1 25 mm
L1 25 mm
Suitable for tool holding device SK 40
Suitable for tool holding device SK 40
Zapfenlänge 25 mm
