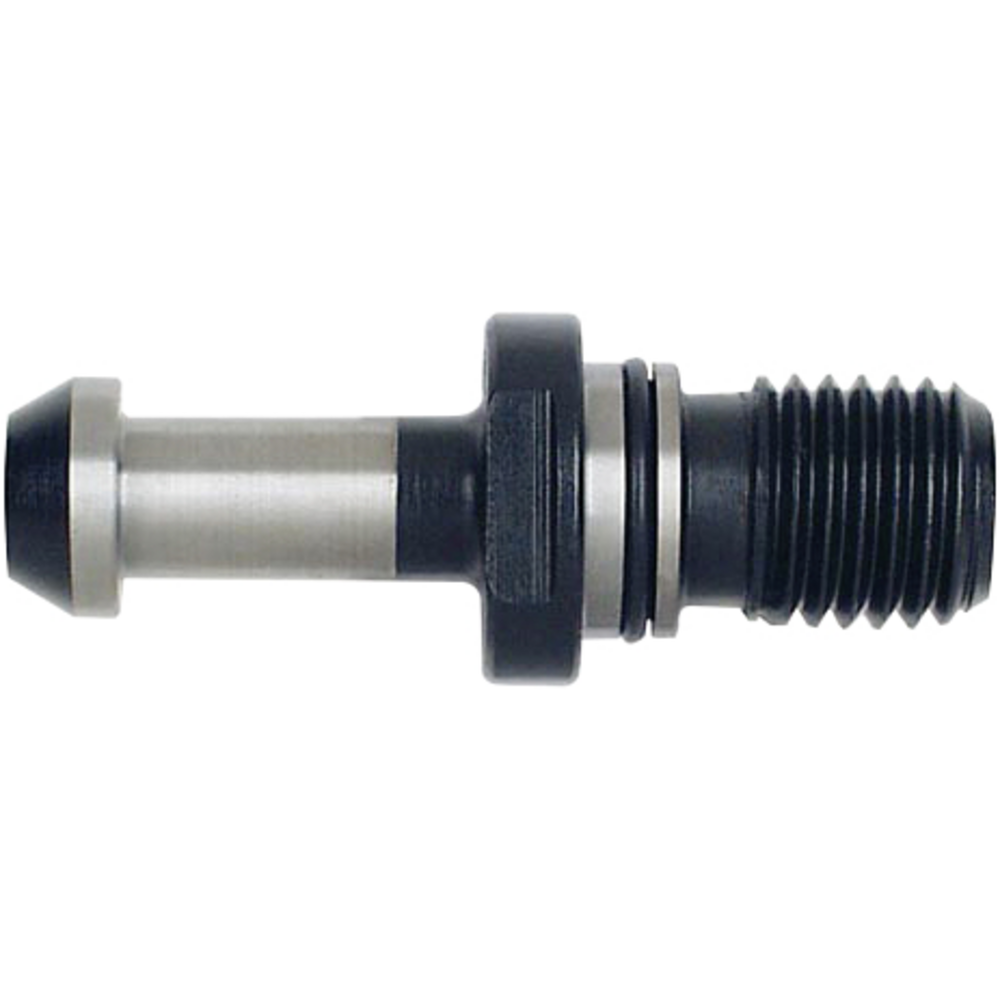

Pull stud MAS BT40 90°, without bore

Pull stud MAS BT40 90°, without bore
Pull stud MAS BT40 90°, without bore Pull stud MAS BT40 90°, without bore
Price:
13,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 JF 90°, without bore
Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 JF 90°, without bore
Article no./ATORN no.
4385129040 / 20800012
Packaging unit
1
Catalogue page
KS-1168

Technical characteristics

Coolant supply No
Coolant supply No
D 15 mm
D 17 mm
D 15 mm
D 17 mm
D1 10 mm
D1 10 mm
Design With O-ring mm
Design With O-ring mm
Drill hole
Drill hole
for thread M16
for thread M16
L 60 mm
L 60 mm
L1 35 mm
L1 35 mm
Suitable for tool holding device SK 40
Suitable for tool holding device SK 40
