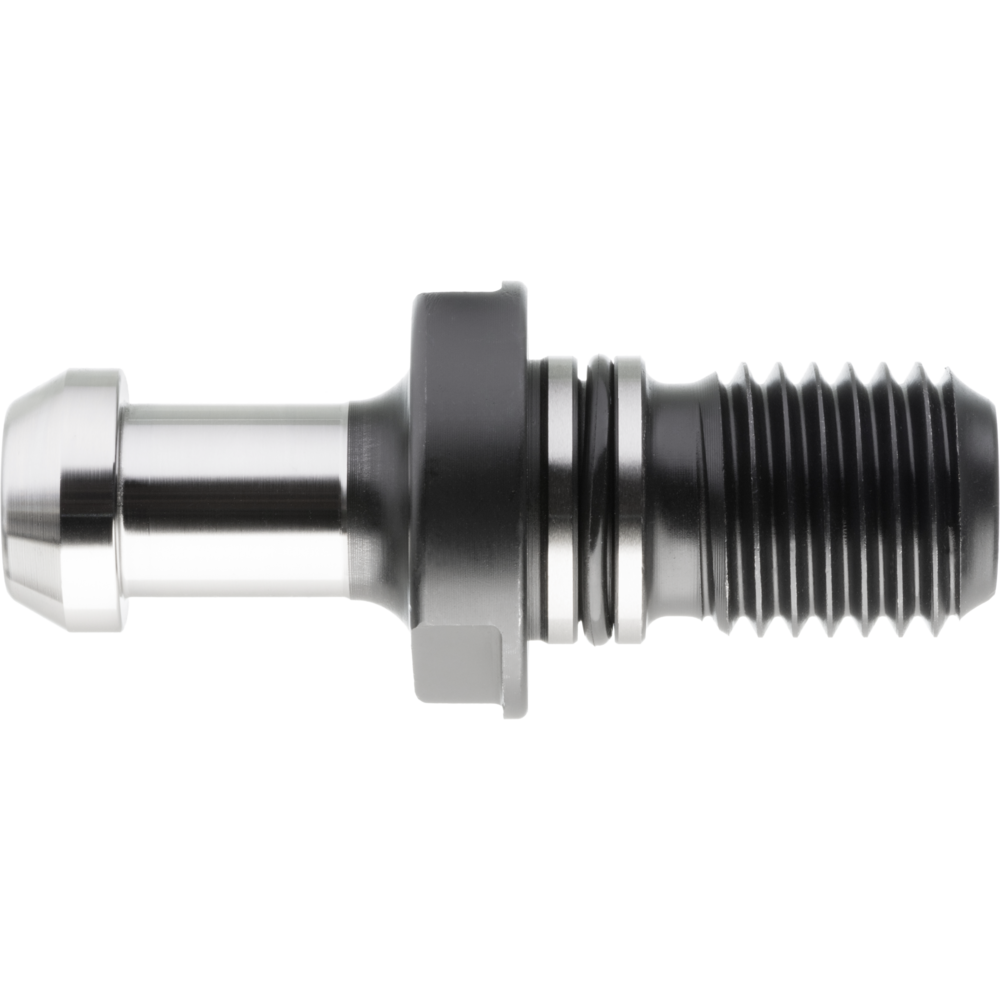

Pull stud MAS BT40 90°, with bore

Pull stud MAS BT40 90°, with bore
Pull stud MAS BT40 90°, with bore Pull stud MAS BT40 90°, with bore
Special offer:
5,24 €
(12,60 € catalogue price / 58% saved)
prices excl. vat plus shipping costs

Stock status
Only 30 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 JD 90°, with bore
Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 JD 90°, with bore
Article no./ATORN no.
4385119040 / 20800080
Packaging unit
1
Catalogue page
KS-1168

Technical characteristics

Aussendurchmesser 10 mm
Bohrdurchmesser 4 mm
Coolant supply Yes
Coolant supply Yes
D 15 mm
D 17 mm
D 15 mm
D 17 mm
D1 10 mm
D1 10 mm
Design With O-ring
Design With O-ring
Drill hole 4 mm
Drill hole 4 mm
for thread M16
for thread M16
Gewindeabmessung M16
Gewindedurchmesser 16 mm
L 60 mm
L 60 mm
L1 35 mm
L1 35 mm
Suitable for tool holding device SK 40
Suitable for tool holding device SK 40
