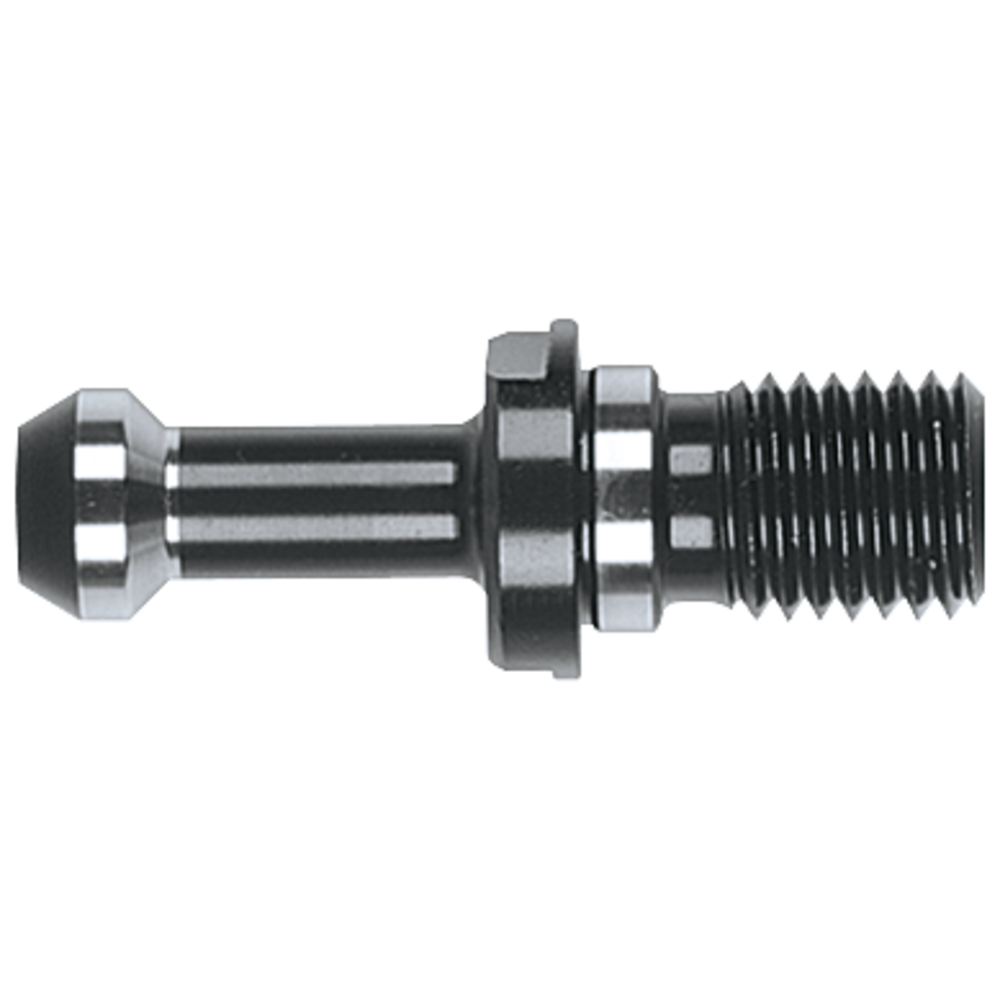

Pull stud MAS BT30 45°, without bore

Pull stud MAS BT30 45°, without bore
Pull stud MAS BT30 45°, without bore Pull stud MAS BT30 45°, without bore
Special offer
4,52 €
(11,30 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 5 pieces left!
Add to shopping cart
Tool Finder
Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 JF 45°, without bore
Article no./ATORN no.
4385104530 / 20800060
Packaging unit
1
Catalogue page
KS-1174

Technical characteristics

Coolant supply No
D 11 mm
D 12,5 mm
D1 7 mm
Design Without O-ring mm
Drill hole
for thread M12
Gewindedurchmesser 12 mm
L 43 mm
L1 23 mm
Standard constructional dimensions DIN 7388-2 B
Suitable for tool holding device SK 30
Winkel 45 °
