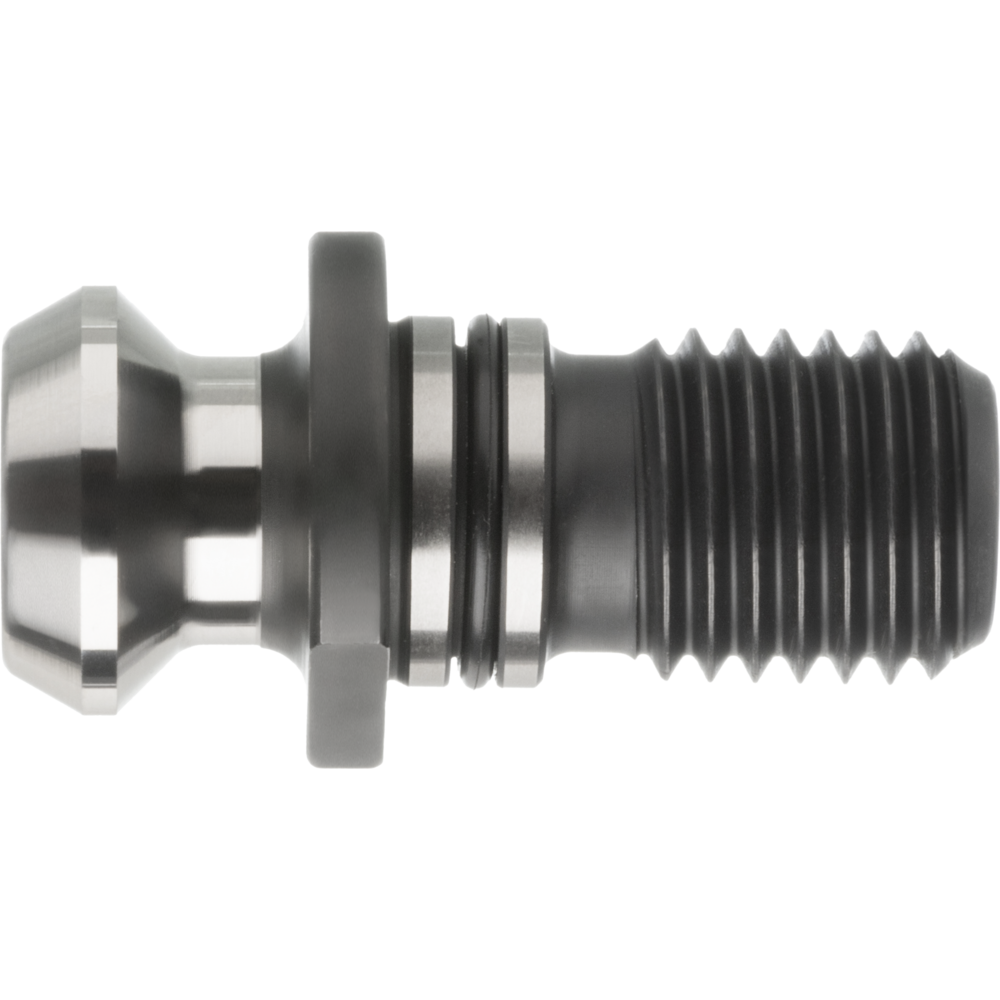

Pull stud DIN7388 IIB SK40, without bore

Pull stud DIN7388 IIB SK40, without bore
Pull stud DIN7388 IIB SK40, without bore Pull stud DIN7388 IIB SK40, without bore
Price:
12,30 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 UF, without bore
Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 UF, without bore
Article no./ATORN no.
4385060040 / 20800007
Packaging unit
1
Catalogue page
KS-1167

Technical characteristics

Aussendurchmesser 18,95 mm
Coolant supply No
Coolant supply No
D 18,95 mm
D 17 mm
D 17 mm
D 18,95 mm
D1 12,95 mm
D1 12,95 mm
Design With O-ring mm
Design With O-ring mm
Drill hole
Drill hole
for thread M16
for thread M16
Form B
Gewindedurchmesser 16 mm
L 44,5 mm
L 44,5 mm
L1 16,25 mm
L1 16,25 mm
Standard constructional dimensions DIN 7388-2 B
Standard constructional dimensions DIN 7388-2 B
Suitable for tool holding device SK 40
Suitable for tool holding device SK 40
