Thread cutting quick-change chuck MAS403 BT40, M3-M12 A=67,5mm

Price
230,00 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 17:30 - delivered tomorrow.

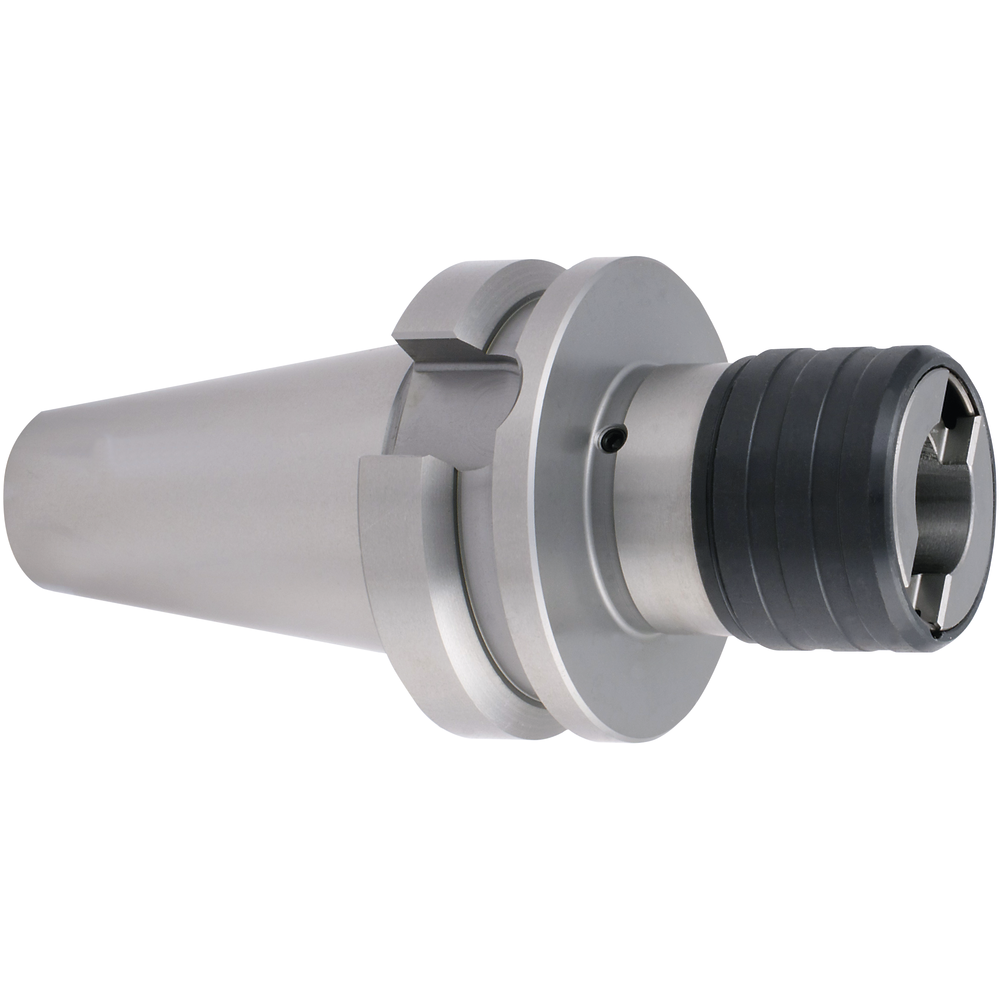

Thread cutting quick-change chuck
  • Automatic insert locking
  • Flexible length compensation under compression and tension
  • For quick-release inserts with adjustable safety coupling
  • Minimal residual torque prevents tap breakage
  • For thread cutting on mechanical and digitally controlled radial drills as well as drilling and milling machines
  • Further sizes are available on request

DIN ISO 7388-2 / MAS BT JIS B 6339
Article no./ATORN no.
4420074012
Packaging unit
1
Catalogue page

Technical characteristics

A 68 mm
D 19 mm
D 38 mm
Length compensation, pressure 9 mm
Length compensation, tension 9 mm
Shank BT 40
Suitable for thread M3-M12
Taper type BT 40
