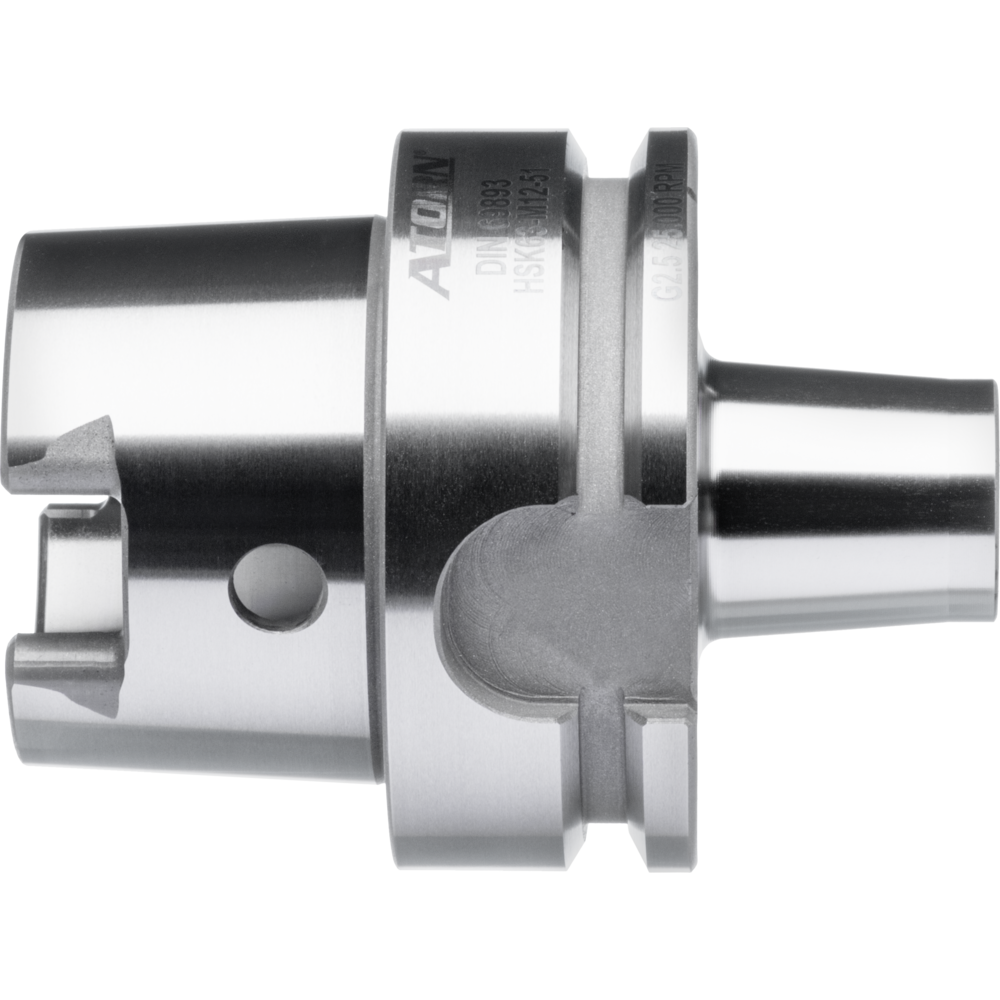

Fräsaufnahme für Einschraubfräser DIN69893 HSK-A100, 8mm A=79mm, L=50mm

Price
274,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Tool holding fixtures for screw-in milling cutters
  • Taper angle tolerance AT3
  • Pre-balanced to G 2.5 / 25,000 rpm
  • True running accuracy of steep taper tool holder, DIN 69871: < 0.003 mm, HSK 63 A: < 0.005 mm
  • MAS/BT-AD/AF version available on request

DIN69893 Form A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used

Tool holding fixtures for screw-in milling cutters
  • Taper angle tolerance AT3
  • Pre-balanced to G 2.5 / 25,000 rpm
  • True running accuracy of steep taper tool holder, DIN 69871: < 0.003 mm, HSK 63 A: < 0.005 mm
  • MAS/BT-AD/AF version available on request

DIN69893 Form A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used

Article no./ATORN no.
4302361208 / 22660928
Packaging unit
1
Catalogue page

Technical characteristics

A 79 mm
Aufnahmedurchmesser 13 mm
Aussendurchmesser 23 mm
D 23 mm
D1 13 mm
DIN 69893-1
Durchmesser verjüngt 8,5 mm
for thread M8
Form A
L1 50 mm
Länge 50 mm
Passend für Gewinde M8
Shank HSK 100
Werkzeugaufnahme HSK 100
Wuchtgüte G 2,5 bei 25000 1/min
