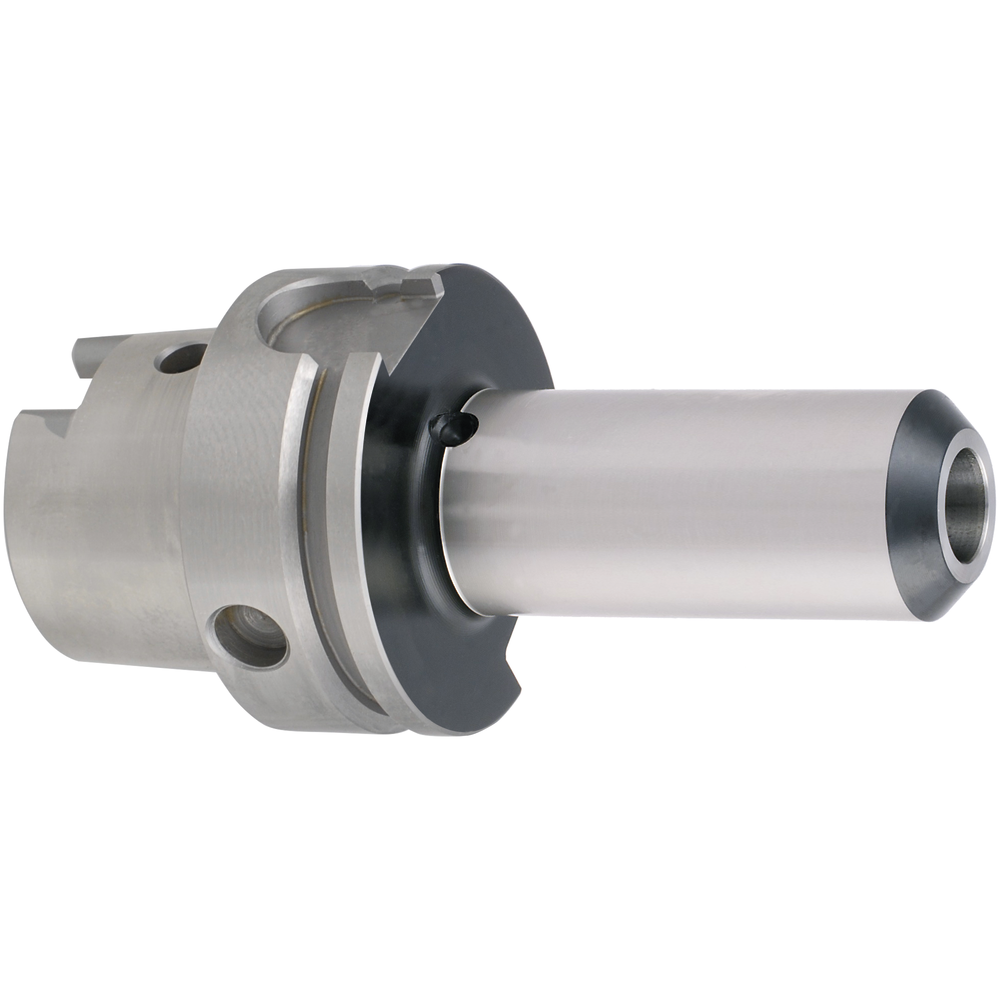

High-precision chuck HG

• Straight shank tools clamped with a high level precision using HG collets
• Very well suited to high-speed machining
• Taper angle tolerance quality AT3
• Finely balanced to G 2.5 at 25,000 rpm
• True-running accuracy: 3 µm
• Supplied with clamping screw and pull-out hook, no collet

DIN 69893-1 HSK-A

• Internal coolant supply
• When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used

High-precision chuck HG

• Straight shank tools clamped with a high level precision using HG collets
• Very well suited to high-speed machining
• Taper angle tolerance quality AT3
• Finely balanced to G 2.5 at 25,000 rpm
• True-running accuracy: 3 µm
• Supplied with clamping screw and pull-out hook, no collet

DIN 69893-1 HSK-A

• Internal coolant supply
• When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
