HG-Spannfutter MAS403ADB BT40, 2- 8mm A= 65mm

HG-Spannfutter MAS403ADB BT40, 2- 8mm A= 65mm
HG-Spannfutter MAS403ADB BT40, 2- 8mm A= 65mm HG-Spannfutter MAS403ADB BT40, 2- 8mm A= 65mm
Price:
141,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

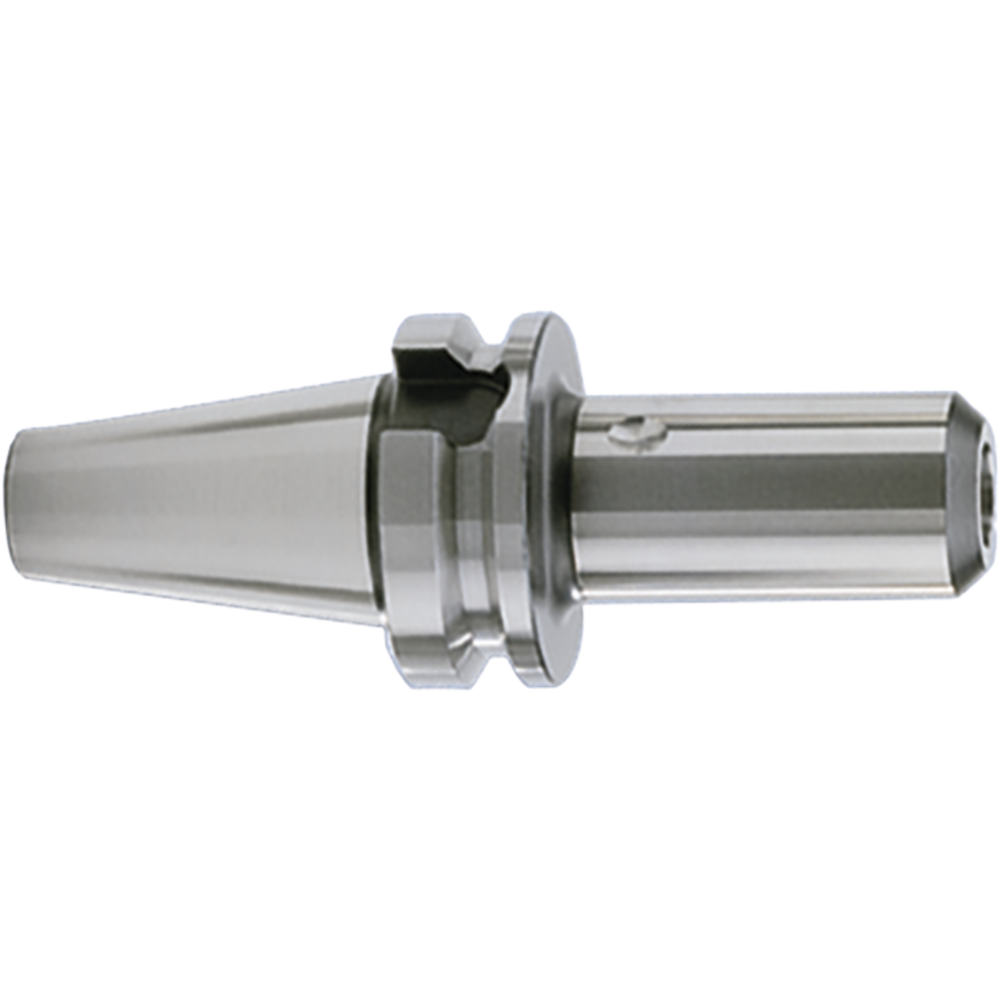

High-precision chuck HG
  • Straight shank tools clamped with a high level precision using HG collets
  • Very well suited to high-speed machining
  • Taper angle tolerance quality AT3
  • Finely balanced to G 2.5 at 25,000 rpm
  • True-running accuracy: 3 µm
  • Supplied with clamping screw and pull-out hook, no collet

JIS B 6339 BT AD
(Internal coolant supply)
High-precision chuck HG
  • Straight shank tools clamped with a high level precision using HG collets
  • Very well suited to high-speed machining
  • Taper angle tolerance quality AT3
  • Finely balanced to G 2.5 at 25,000 rpm
  • True-running accuracy: 3 µm
  • Supplied with clamping screw and pull-out hook, no collet

JIS B 6339 BT AD
(Internal coolant supply)
Article no./ATORN no.
4312174001
Vendor Article no.
40.620.01
Packaging unit
1
Catalogue page

Technical characteristics

A 65 mm
A 65 mm
Clamp Ø 2 / 3 / 4 / 5 / 6 / 8 mm
Clamp Ø 2 / 3 / 4 / 5 / 6 / 8 mm
D 30 mm
D 30 mm
Design short
Design short
Designation HG 01
Designation HG 01
Shank SK 40
Shank SK 40
