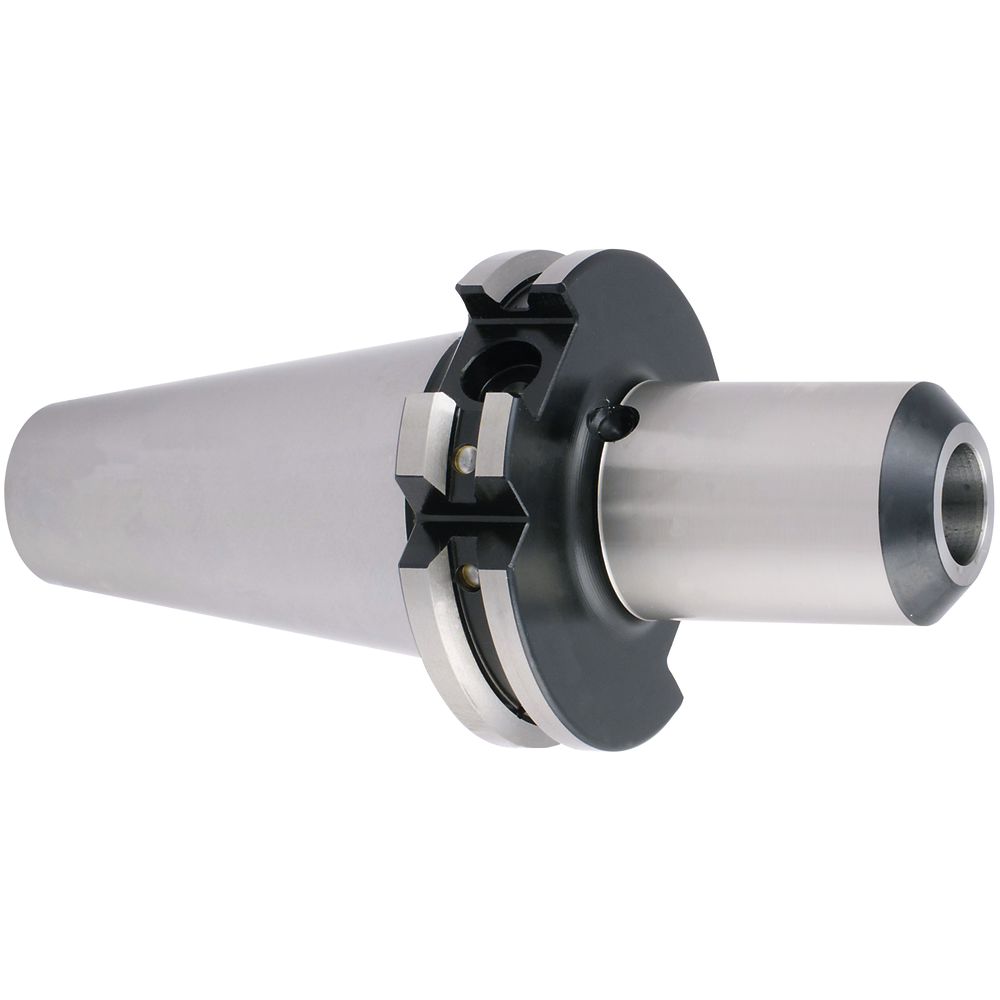

High-precision chuck DIN69871ADB SK40, 2-8mm A=65mm

High-precision chuck DIN69871ADB SK40, 2-8mm A=65mm
High-precision chuck DIN69871ADB SK40, 2-8mm A=65mm High-precision chuck DIN69871ADB SK40, 2-8mm A=65mm
Price:
163,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
High-precision chuck HG
  • Straight shank tools clamped with a high level precision using HG collets
  • Very well suited to high-speed machining
  • Taper angle tolerance quality AT3
  • Finely balanced to G 2.5 at 25,000 rpm
  • True-running accuracy: 3 µm
  • Supplied with clamping screw and pull-out hook, no collet

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply

High-precision chuck HG
  • Straight shank tools clamped with a high level precision using HG collets
  • Very well suited to high-speed machining
  • Taper angle tolerance quality AT3
  • Finely balanced to G 2.5 at 25,000 rpm
  • True-running accuracy: 3 µm
  • Supplied with clamping screw and pull-out hook, no collet

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply

Article no./ATORN no.
4312134001
Vendor Article no.
40.420.01
Packaging unit
1
Catalogue page
KS-1188

Technical characteristics

A 65 mm
A 65 mm
Clamp Ø 2 / 3 / 4 / 5 / 6 / 8 mm
Clamp Ø 2 / 3 / 4 / 5 / 6 / 8 mm
D 30 mm
D 30 mm
Design short
Design short
Designation HG 01
Designation HG 01
Shank SK 40
Shank SK 40
