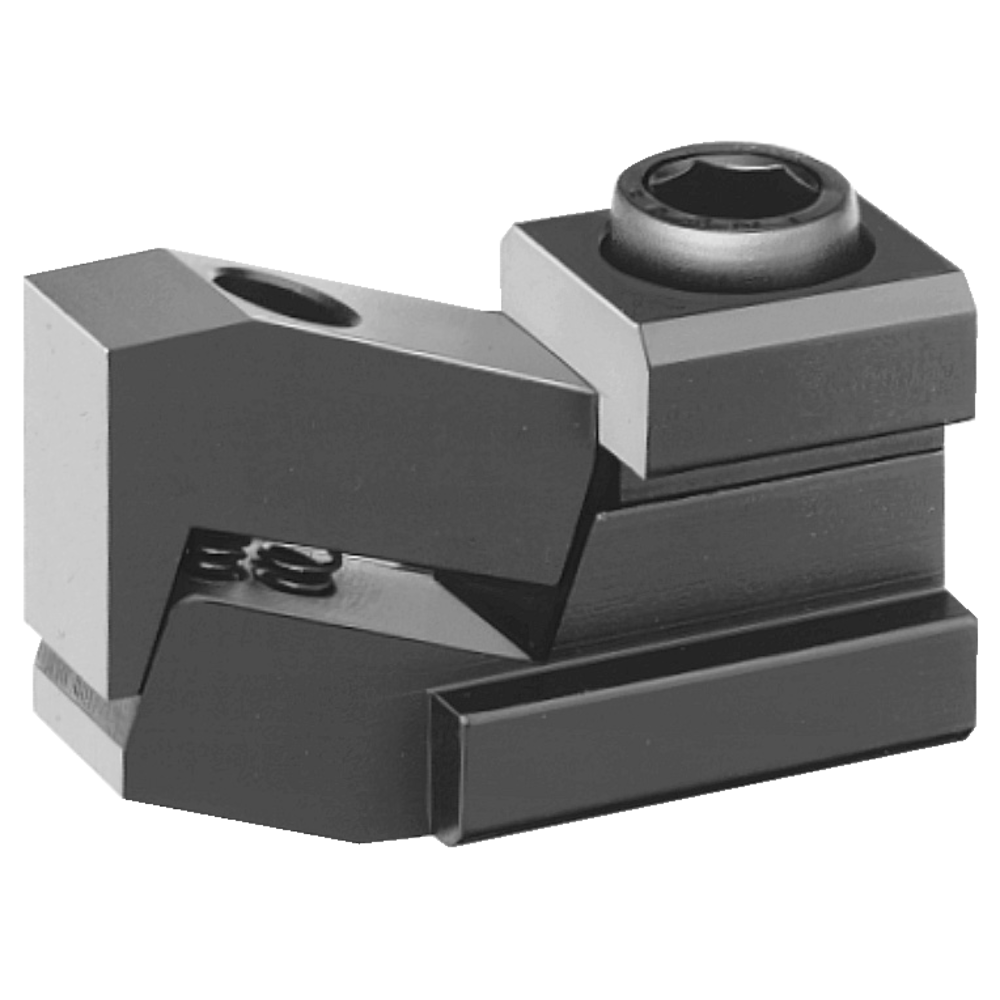

Mini-Bulle flat clamp

• Hardened and tempered to a burnished shade
• h1 = at maximum T-slot depth in accordance with DIN 650
• To obtain low clamping heights with minimum slot depths, the clamp can be ground down by x mm
• Allows particularly flat workpieces to be clamped
• Clamping jaws have a wedge effect that ensures the workpiece is securely fixed to the work table
• Horizontal forces are absorbed by a screw corresponding to the slot size; this holds the clamp securely in position without damaging the table
• Supplied in pairs, boxed, complete with fastening screws (DIN 912, 8.8 / ISO 4762) and a hexagonal screwdriver (ISO 2936)
• Prices per pair
