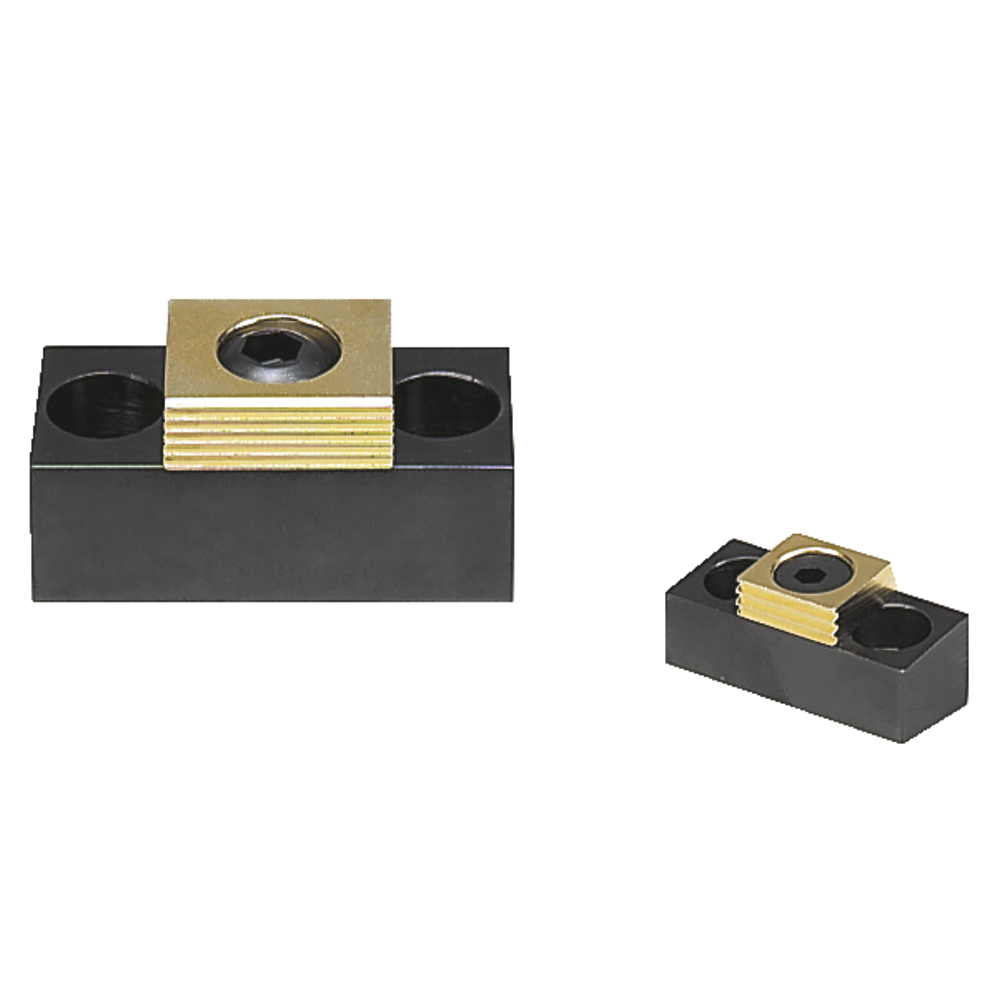

Combination pull-down clamping claw 43,2 x 19mm

Combination pull-down clamping claw 43,2 x 19mm
Combination pull-down clamping claw 43,2 x 19mm Combination pull-down clamping claw 43,2 x 19mm Combination pull-down clamping claw 43,2 x 19mm
Price:
81,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Combination pull-down claw
  • The pull-down effect ensures that the workpiece is secured to the support
  • The front side is used for clamping, the rear side can be used as a stop
  • Space-saving multi-clamping
  • Clamping washer with toothed surface for raw parts and smooth surface for machined parts
  • Preferably for mounting in a slot of width B (+0.05 mm)
  • The engagement height of the clamping washer can be changed by the depth of the slot
  • Body and clamping washer are case-hardened
  • Supplied with fastening screws

Combination pull-down claw
  • The pull-down effect ensures that the workpiece is secured to the support
  • The front side is used for clamping, the rear side can be used as a stop
  • Space-saving multi-clamping
  • Clamping washer with toothed surface for raw parts and smooth surface for machined parts
  • Preferably for mounting in a slot of width B (+0.05 mm)
  • The engagement height of the clamping washer can be changed by the depth of the slot
  • Body and clamping washer are case-hardened
  • Supplied with fastening screws

Article no./ATORN no.
4750510008
Vendor Article no.
X54110
Packaging unit
1
Catalogue page
KS-1294

Technical characteristics

A 43,2 mm
A 43,2 mm
Attachment screw M8 x 16
Attachment screw M8 x 16
B 19 mm
B 19 mm
C 12,7 mm
C 12,7 mm
D 25,4 mm
D 25,4 mm
E 2,3 mm
E 2,3 mm
Eccentric screw M10 x 1,5
Eccentric screw M10 x 1,5
Eccentric travel 1,6 mm
Eccentric travel 1,6 mm
F 19 mm
F 19 mm
G 6,4 mm
G 6,4 mm
Catalogue page Download
