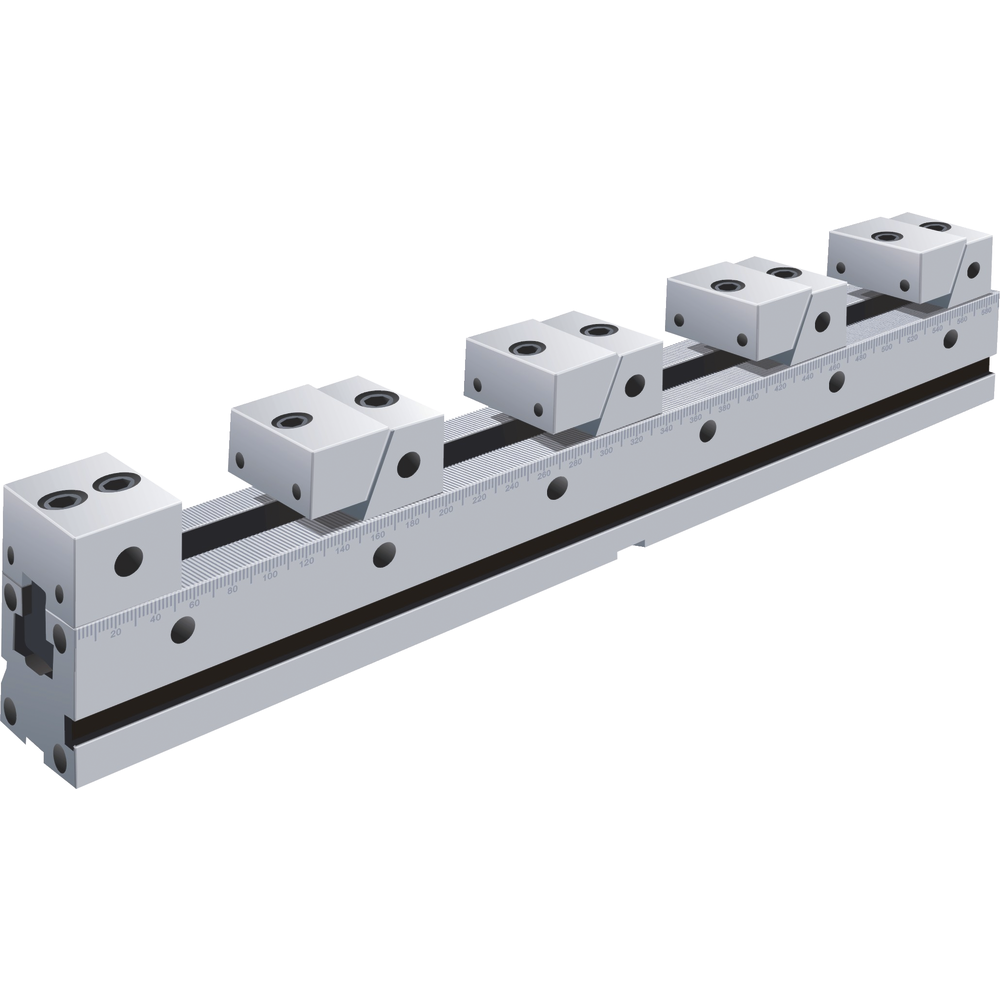

Modular multi-clamping fixture

• Mechanical clamping fixture with a modular design
• Accuracy within 0.02 mm
• Base body made from hardened steel, 60 HRC
• Depending on clamping rail length, fully equipped for clamping four workpieces
• Clamping jaws are 1 mm narrower than the base body, allowing lateral use of the clamp
• Also available with stepped jaws on request, prismatic jaws available as accessories
• Supplied with four tool stops, clamping claws, slot nuts, alignment blocks, lifting screws and a clamping key, one fixed jaw and four intermediate jaws

Slide rail, width 50 mm
Modular multi-clamping fixture

• Mechanical clamping fixture with a modular design
• Accuracy within 0.02 mm
• Base body made from hardened steel, 60 HRC
• Depending on clamping rail length, fully equipped for clamping four workpieces
• Clamping jaws are 1 mm narrower than the base body, allowing lateral use of the clamp
• Also available with stepped jaws on request, prismatic jaws available as accessories
• Supplied with four tool stops, clamping claws, slot nuts, alignment blocks, lifting screws and a clamping key, one fixed jaw and four intermediate jaws

Slide rail, width 50 mm
