PKD and CBN ISO indexable cutting inserts

• Ultra-hard cutting materials, single tip
• CBN, cubic boron nitride,quality ABC10 (ISO K01-K25, S01-S15)Polycrystalline CBN type with a high CBN content and carbide base, fine grain, very high wear resistance in the HSC range with GG25 (super-finish), long service life in the case of superalloys
  Material: Grey cast iron (GG25), superalloys.
  Note: For the chamfered version, the type ABC10 includes the protective chamfer "G" as standard
• CBN, cubic boron nitride, quality ABC15 (ISO K01-K25, S01-S20)Polycrystalline CBN grade with high CBN content and a superfine grain carbide base, very high wear resistance in HSC applications with GGG-40 (super-finish), long service life with superalloys and sintered steel
  Material: Spheroidal graphite cast iron (GGG-40), sintered steels, superalloys
  Note: For the chamfered version, the type ABC15 includes the protective chamfer "C" as standard
• CBN, cubic boron nitride, quality ABC25 (ISO K05-K20, S05-S25, H01-H25)Polycrystalline CBN type with a low CBN content and carbide base, fine grain, very high wear resistance, pressure resistance and toughness in hard turning (HRC 52-65) in the smooth to medium interrupted vertical section.
  Material: Hard turning, dry, HRC 52 - 65
  Note: For the chamfered version, the type ABC25 includes the protective chamfer "F" as standard
• PCD, polycrystalline diamond, quality ADC (ISO N05-N40)Polycrystalline diamond with carbide base, fine grain, good cutting edge sharpness and low cutting pressure with narrow tolerances. High degree of wear resistance and toughness.
  Material: Finishing and fine finishing of all non-ferrous metals and non-ferrous materials with a low percentage of abrasive fillers
• Cutting edge length "m" depends on the cutting radius

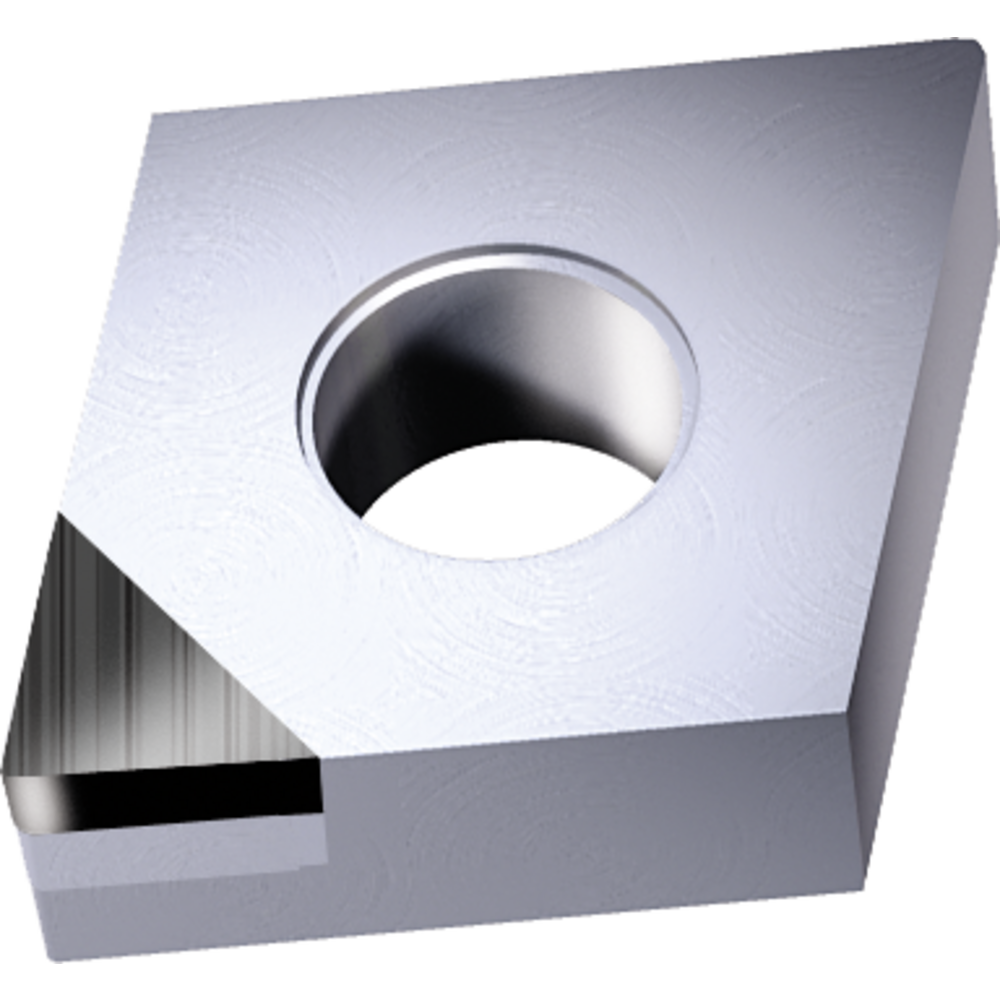

CNGA, sharp-edged (A)
