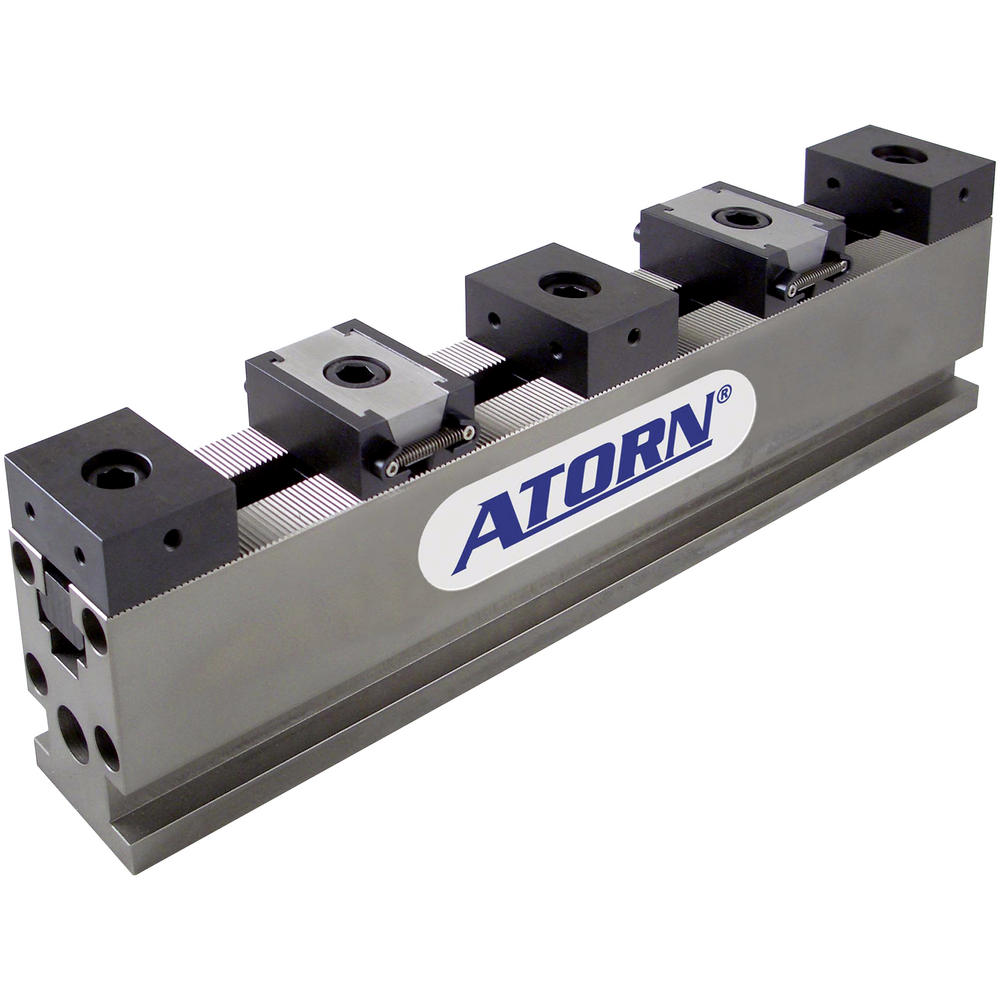

Modular multi-clamping fixture

• Quick and precise workpiece clamping on vertical and horizontal machining centres, milling and grinding machines
• Standard clamping device for different workpieces
• Wedge clamps of various sizes can be used
• Allows different workpieces to be clamped in extremely confined spaces
• Multiple slide rails combined by means of a connection system, optimum length adjustment to the work table
• Tombstones available on request
• 60° toothing

Particular benefits:

• Perform numerous clamping tasks with one clamping system
• Can also be used on ATORN zero-point clamping systems
• All system components are compatible
• Easy-to-install stop system
• Cost-effective clamping system

Multi-clamping slide rail sets

• Rail-mounted clamping elements
• Other combinations available on request
