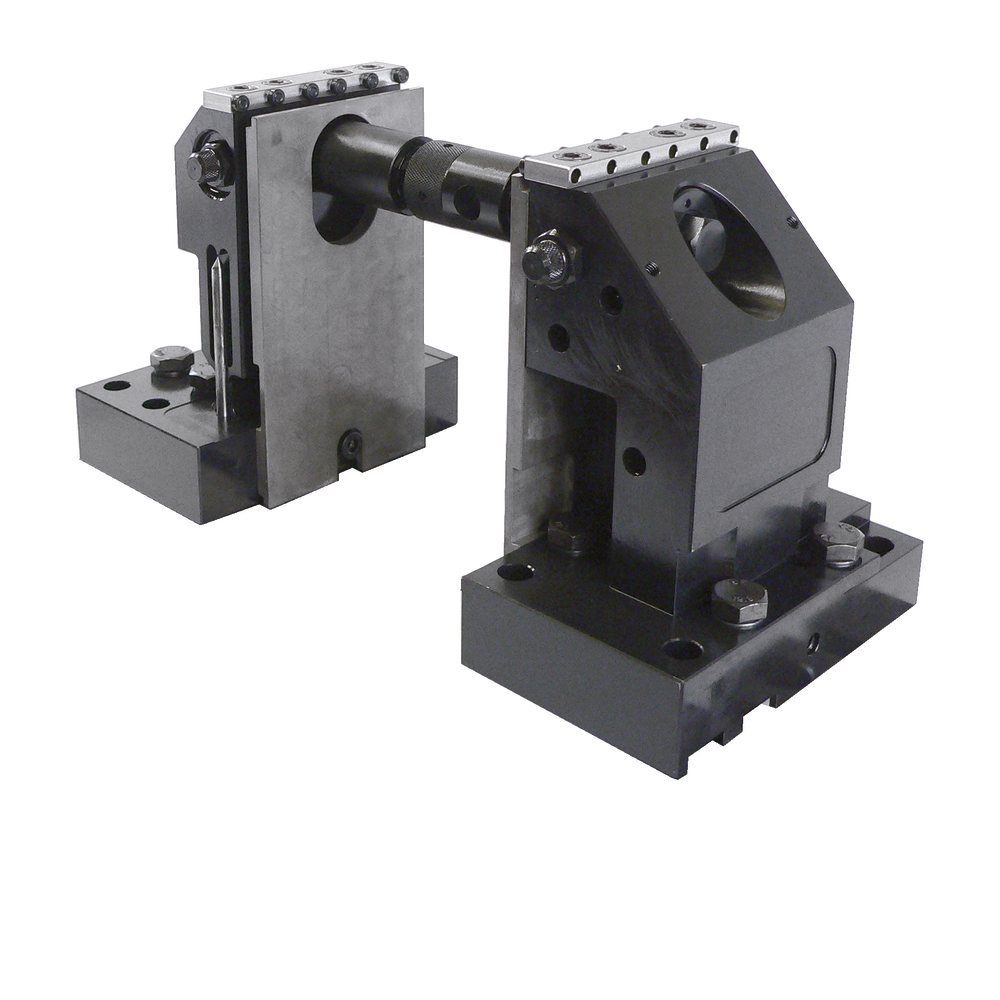

5AX100 and 3AX100 5-axle clamping system

• High clamping force (up to 42 kN) exactly where it is needed – due to the feed rod integrated directly below the workpiece support
• No widening of the clamping jaws under load, no distortion of the work table
• Allows maximum cutting forces due to extreme rigidity
• The low clamping depth of 8 mm enables 5-sided machining without any protruding edges
• Wide variety of clamping widths possible simply by moving the two jaws; options are limited only by the size of the work table
• Clamps raw parts, machined parts, round and irregularly shaped parts
• Positive-fit clamping with no knockout
• 5 AX 100 can be set up on T-slot panels and tables, perforated grid plates and dedicated fixtures
• Jaw width 100 mm
• Supplied complete, without fixing or stop sets

5AX for slot spacing 63 - 126 mm
