Holder for thread mill inserts SR0009 H12 (insert size 12mm) shank 20mm

Holder for thread mill inserts SR0009 H12 (insert size 12mm) shank 20mm
Holder for thread mill inserts SR0009 H12 (insert size 12mm) shank 20mm Holder for thread mill inserts SR0009 H12 (insert size 12mm) shank 20mm Holder for thread mill inserts SR0009 H12 (insert size 12mm) shank 20mm
Price
213,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Holder for thread mill inserts
  • With internal cooling
  • Supplied with clamping screw and chuck key
  • Force-fit insert seat due to 15° bevel on the milling insert

Standard holder
  • Straight shank in accordance with DIN 1835B
  • Holder SR0009H12 not for use with the following inserts: 12-18 NPT/NPTF, 12-19 BSPT
  • Holder SR0018H21 not for use with the following inserts: 21 I34 ISO, 21 I 8 UN, 21 I 7 UN, 21-11 BSPT, 21-11.5 NPT, 21-11.5 NPTF

Article no./ATORN no.
2590010912 / 11940086
Packaging unit
1
Catalogue page
KS-0606
Cutting values
SW-0797

Technical characteristics

Coolant supply Internal
Cutting data Cutting angle Information - yes

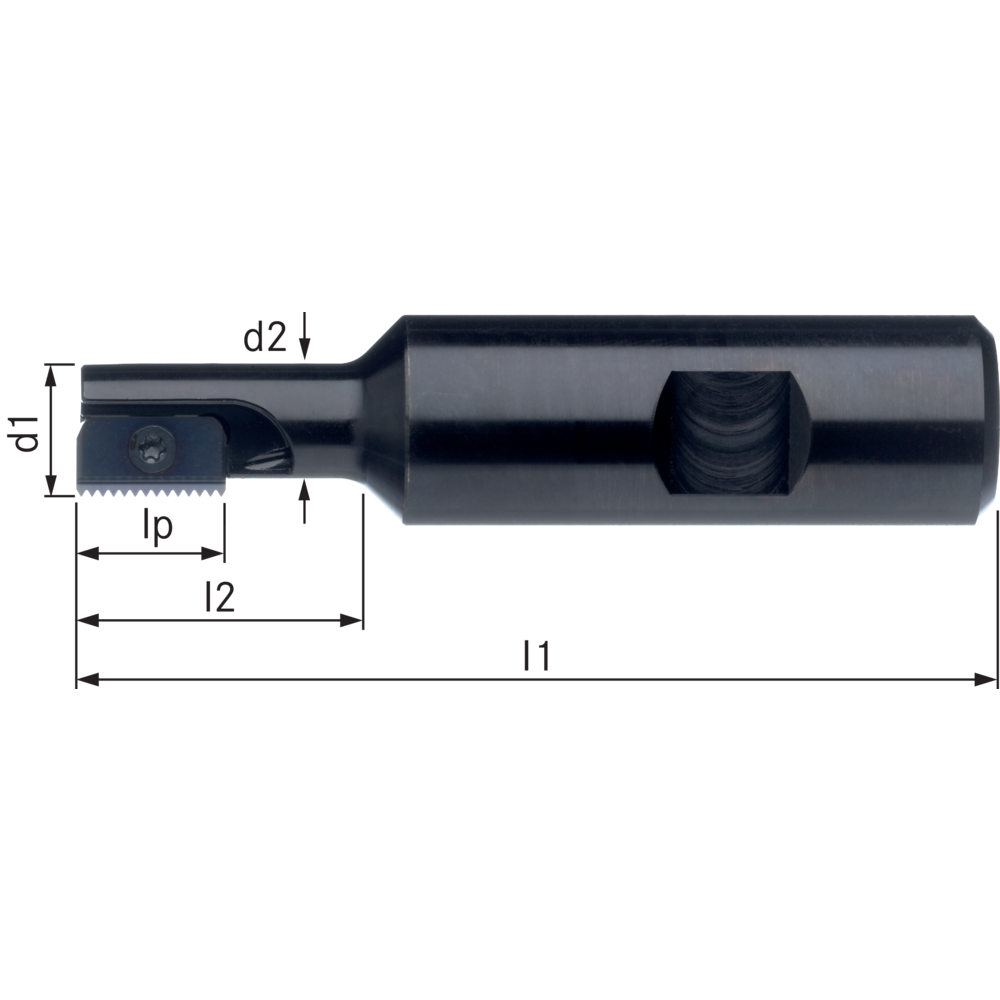

D 9,5 mm
D1 20 mm
D3 7,5 mm
Designation SR0009 H12
Effective length of thread milling 14 mm
Eignung Edelstahl gesamt 0
Eignung nicht Eisen gesamt 0
Eignung Titan/Nickel/Super gesamt 0
fitness hartl total 0
Geeignet für Durchmesser min. 12,2 mm
Geeignet für Wendeschneidplattengröße 12
L 85 mm
L1 12 mm
Tolerance of shank diameter h6
Tool holding device HB parallel shank
