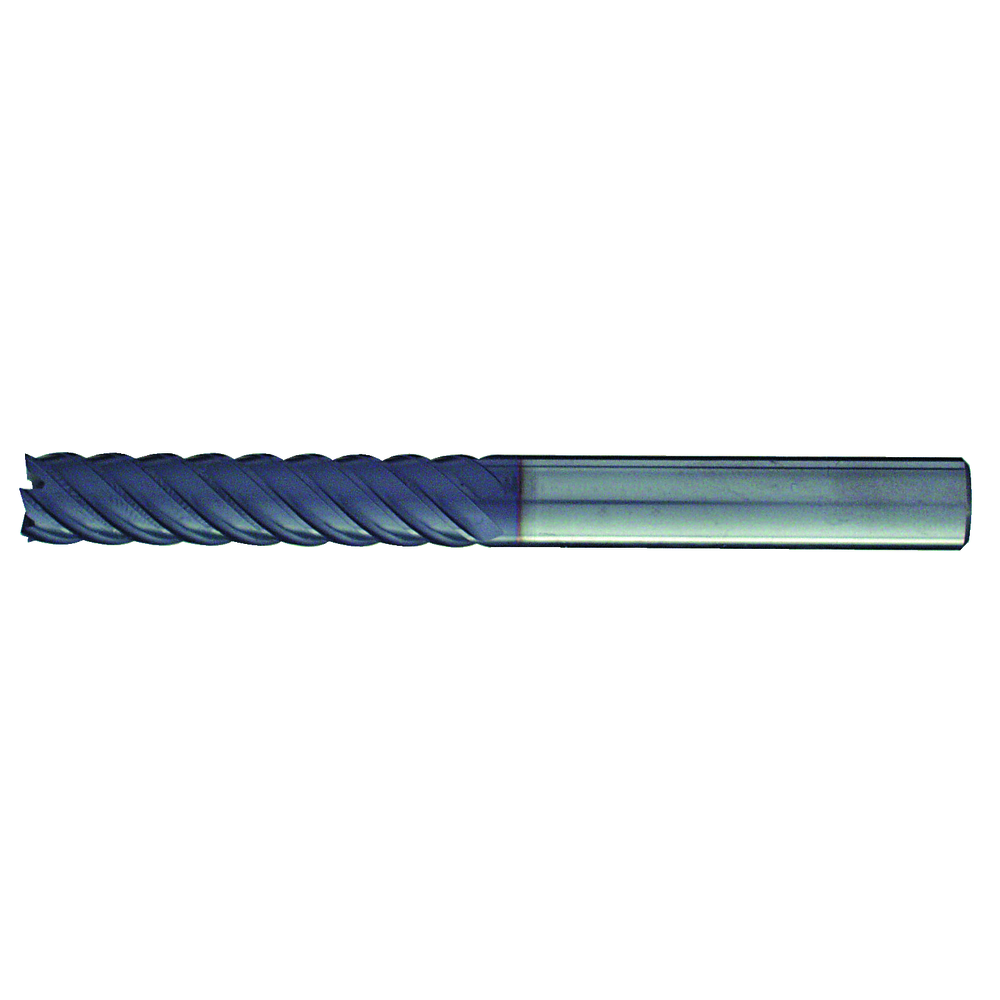

Solid carbide end milling cutter 45° 6mm Z=6 XL HA, TiAlN

Price:
45,30 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 19:30 - delivered tomorrow.

Up to 55 HRC

End milling cutters
  • Extra-long version
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated

Article no./ATORN no.
2541090060
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6,0 mm
D1 6,0 mm
Feed for side milling fz steel < 1000 mm² 0,030 mm/tooth
L 70 mm
L1 26 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 45°
Z 6 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
