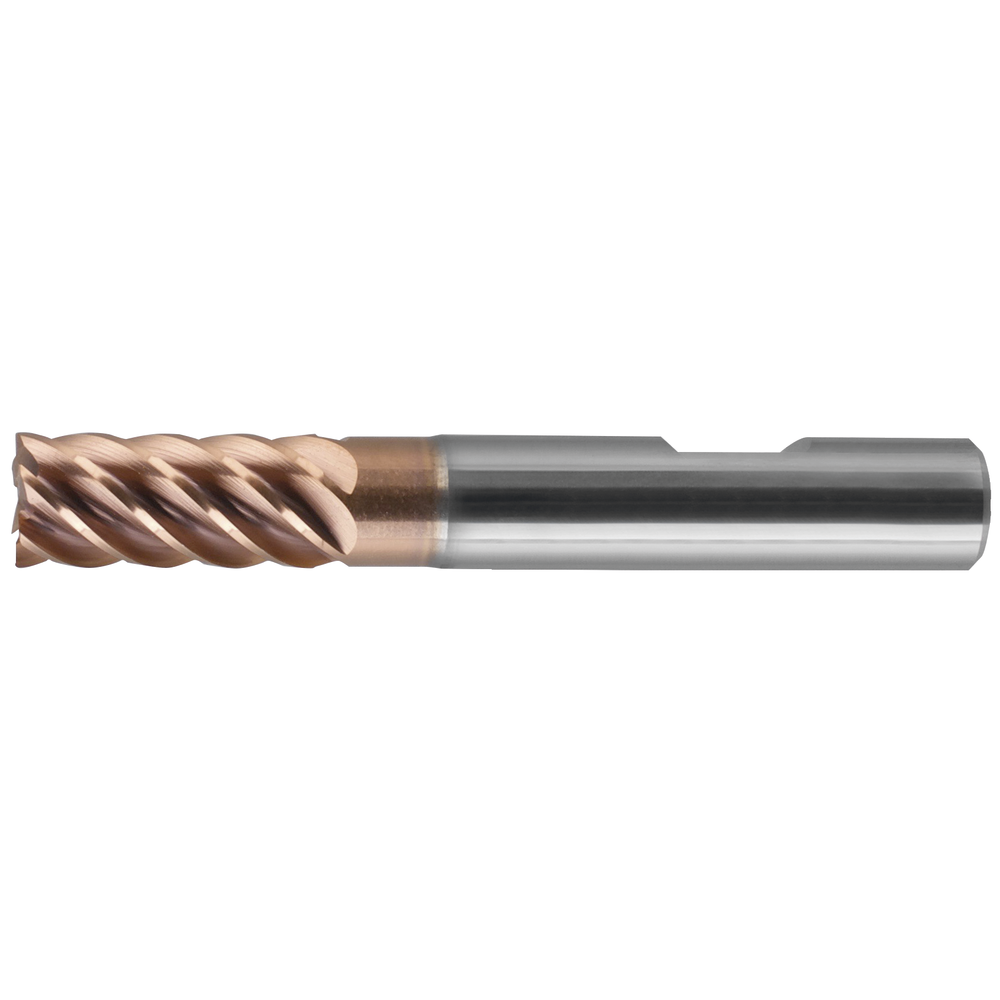

Solid carbide end milling cutter 4mm Z=6 long HB, TiAlN-Ultra

Solid carbide end milling cutter 4mm Z=6 long HB, TiAlN-Ultra
Solid carbide end milling cutter 4mm Z=6 long HB, TiAlN-Ultra Solid carbide end milling cutter 4mm Z=6 long HB, TiAlN-Ultra Solid carbide end milling cutter 4mm Z=6 long HB, TiAlN-Ultra
Price:
48,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

End milling cutters
  • With clearance
  • First-rate chip removal due to extremely smooth surface
  • Cutting material: ultra-fine grain solid carbide, TiAlN-Ultra-coated

Standard version
  • Shank with driving planes in accordance with DIN 6535 HB

Article no./ATORN no.
2540580040
Packaging unit
1
Catalogue page
KS-0430
Cutting values
SW-0736

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4,0 mm
D1 6,0 mm
D3 3,7 mm
Design DIN 6535-HB
Feed for grooving fz steel < 1400 mm² 0,015 mm/tooth
Feed for side milling fz steel < 1400 mm² 0,020 mm/tooth
L 57 mm
L1 11 mm
L2 19 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Twist angle 45°
Z 6 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
