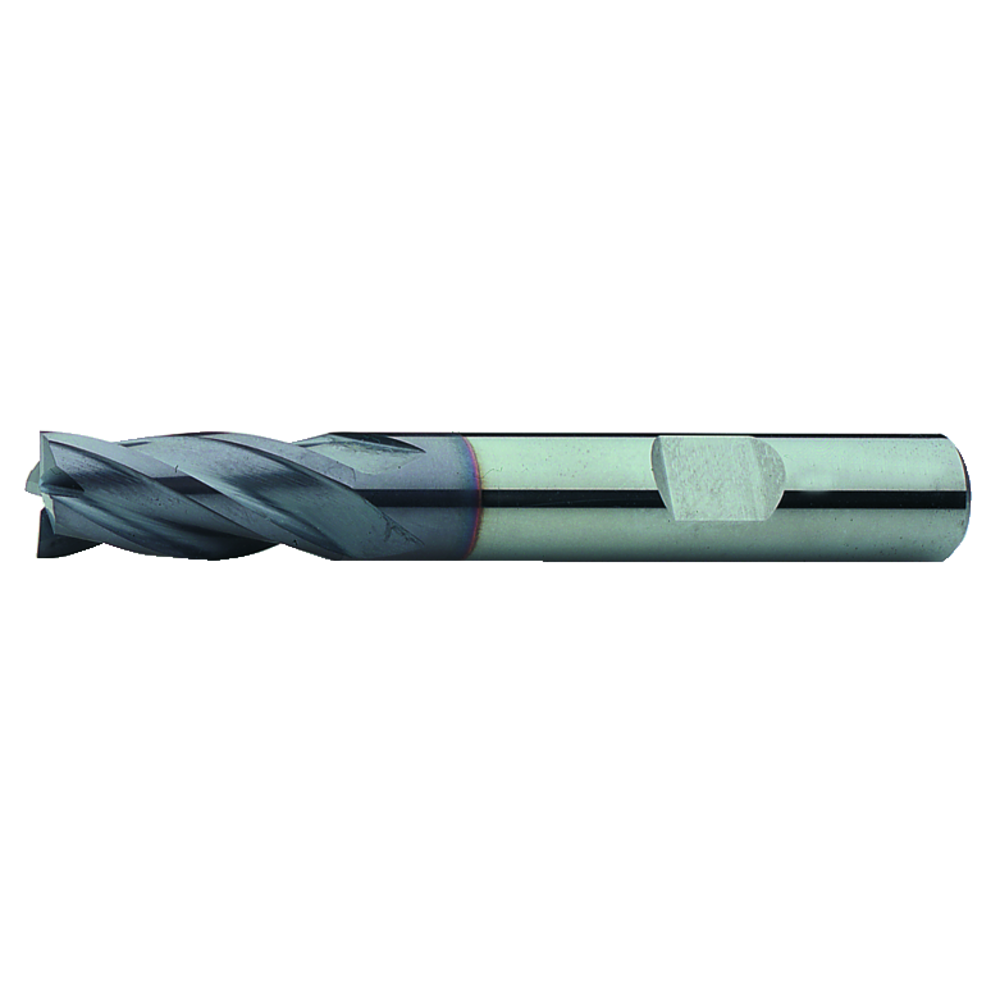

Solid carbide end milling cutter 3mm Z=4 short, HB, TiAlN

Solid carbide end milling cutter 3mm Z=4 short, HB, TiAlN
Solid carbide end milling cutter 3mm Z=4 short, HB, TiAlN Solid carbide end milling cutter 3mm Z=4 short, HB, TiAlN
Price:
45,80 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Up to 55 HRC

End milling cutters
  • Short and long versions
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated

Short with driving plane
Article no./ATORN no.
2540060030
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6,0 mm
Design DIN 6535-HB
Feed for grooving fz steel < 1000 mm² 0,010 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,055 mm/tooth
L 45 mm
L1 8 mm
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Twist angle 30°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
