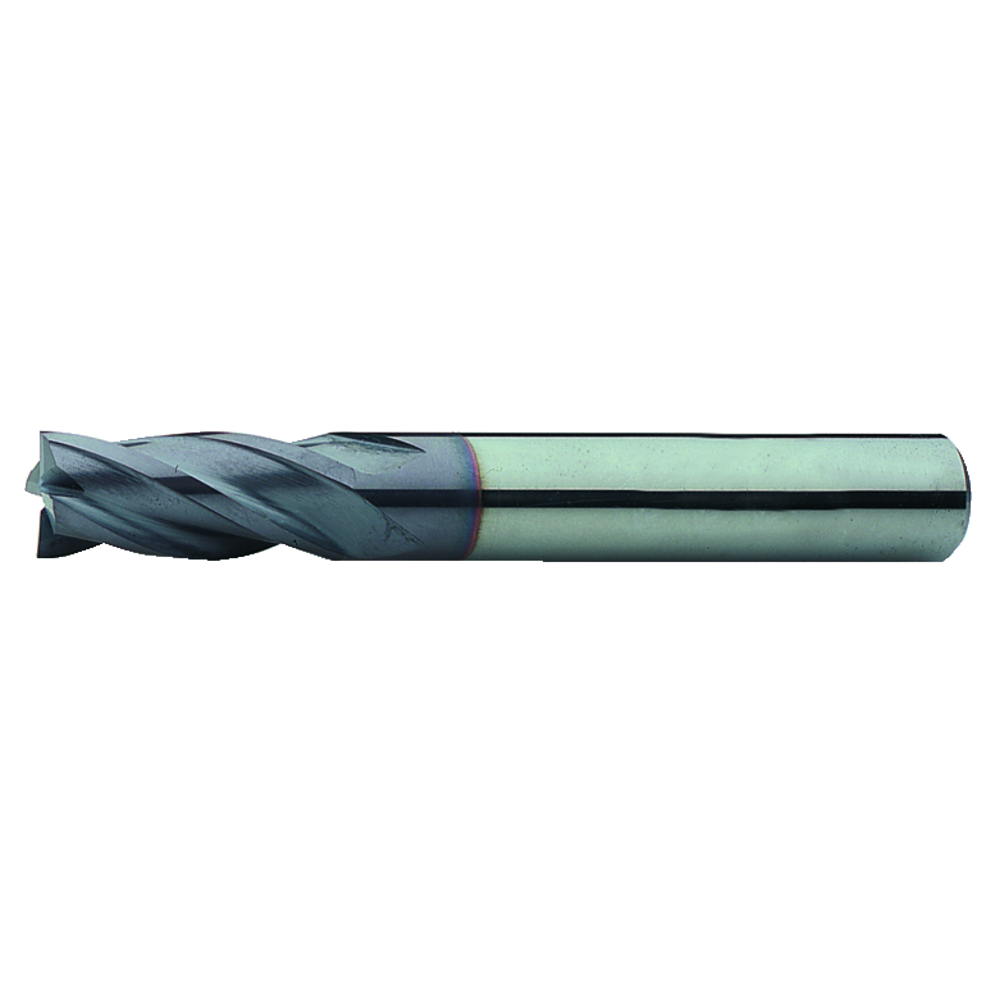

Solid carbide end milling cutter 2mm Z=4 short, HA, TiAlN

Solid carbide end milling cutter 2mm Z=4 short, HA, TiAlN
Solid carbide end milling cutter 2mm Z=4 short, HA, TiAlN Solid carbide end milling cutter 2mm Z=4 short, HA, TiAlN
Price:
32,50 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Up to 55 HRC

End milling cutters
  • Short and long versions
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated

Short
Article no./ATORN no.
2540050020
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2,0 mm
D1 4,0 mm
Design DIN 6535-HA
Feed for grooving fz steel < 1000 mm² 0,010 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,055 mm/tooth
L 40 mm
L1 6 mm
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
