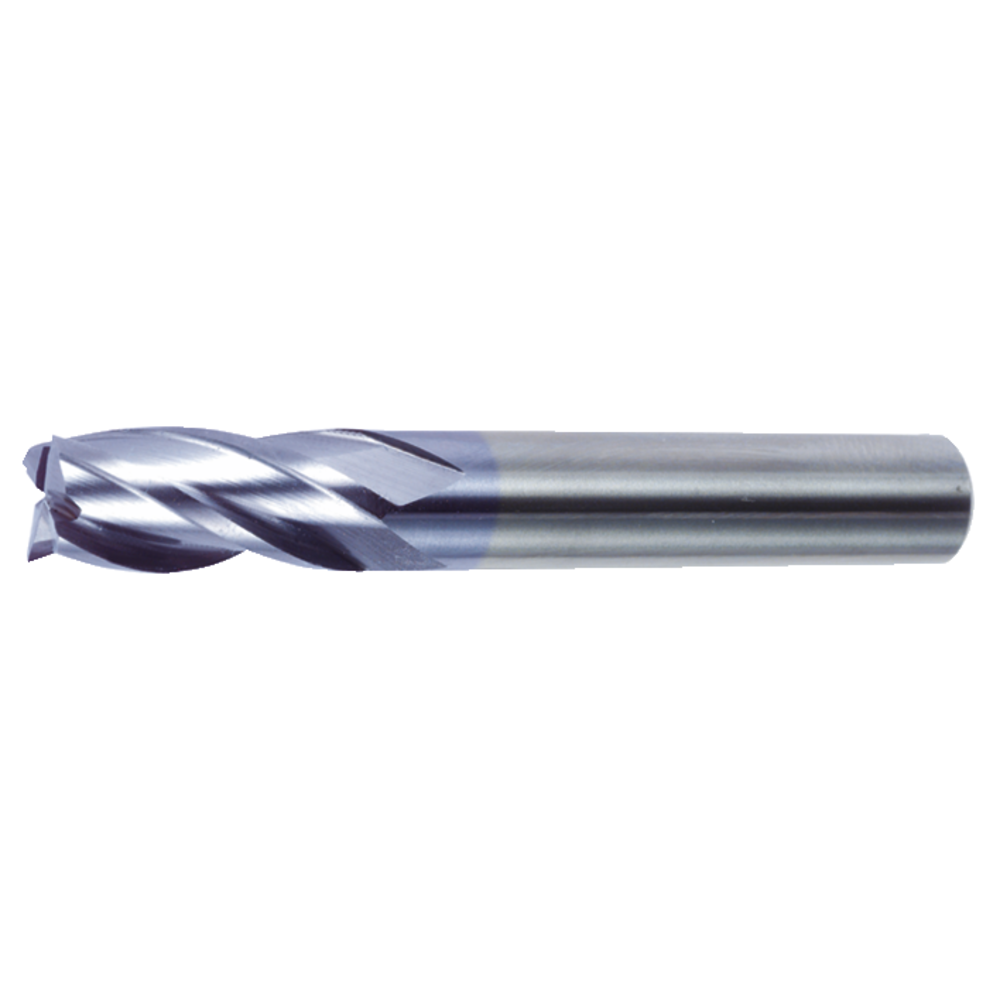

Solid carbide end milling cutter 2mm (steel/cast iron) Z=4 short, HA, TiAlN

Solid carbide end milling cutter 2mm (steel/cast iron) Z=4 short, HA, TiAlN
Solid carbide end milling cutter 2mm (steel/cast iron) Z=4 short, HA, TiAlN Solid carbide end milling cutter 2mm (steel/cast iron) Z=4 short, HA, TiAlN
Price:
20,40 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

End milling cutters
  • Eccentric relief grinding

Article no./ATORN no.
2515090020
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2,0 mm
D1 3,0 mm
Design TiAlN
Feed for side milling fz steel < 1000 mm² 0,011 mm/tooth
L 39 mm
L1 7 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
Catalogue page Download
Cutting values Download
