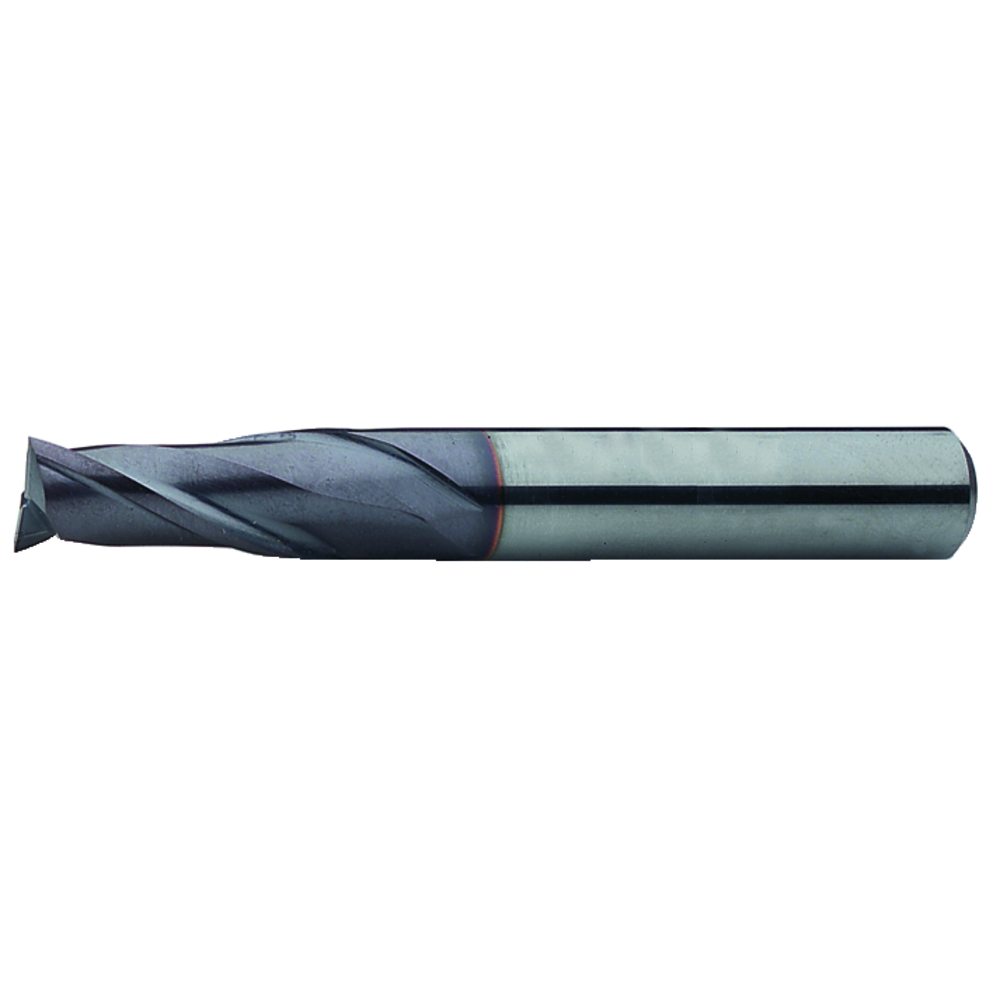

Solid carbide slot drill 1mm Z=2 HA, TiAlN

Solid carbide slot drill 1mm Z=2 HA, TiAlN
Solid carbide slot drill 1mm Z=2 HA, TiAlN Solid carbide slot drill 1mm Z=2 HA, TiAlN
Price:
34,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Up to 55 HRC

Slot drill
  • Driving planes in accordance with DIN 6535-HB, up to Ø 2.5 mm smooth
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated

Article no./ATORN no.
2540010010
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 1,0 mm
D1 4,0 mm
Feed for grooving fz steel < 1000 mm² 0,020 mm/tooth
L 40 mm
L1 2,5 mm
Tool holding device HA parallel shank
Twist angle 30°
Z 2 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
Catalogue page Download
Cutting values Download
