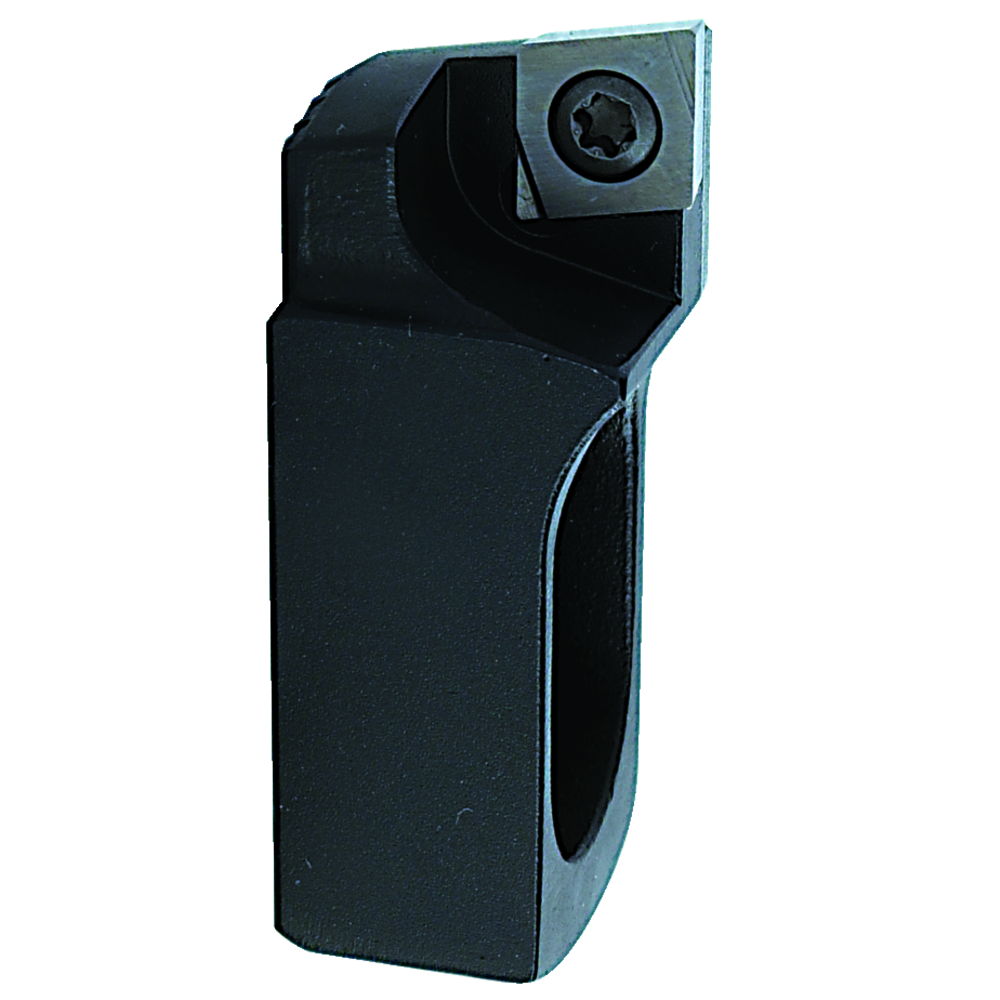

MHD insert holder SFCC 16 Ø18-23mm (for insert CC.. 0602..)

MHD insert holder SFCC 16 Ø18-23mm (for insert CC.. 0602..)
MHD insert holder SFCC 16 Ø18-23mm (for insert CC.. 0602..) MHD insert holder SFCC 16 Ø18-23mm (for insert CC.. 0602..)
Price:
71,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

MHD micrometric boring bar system
  • TRM boring heads and micrometric boring bars ensure a tolerance of IT6 with an optimum surface finish quality.
  • Settings with a radial correction of 1µm can easily be read off the Vernier scale and executed directly on the machine.

SFCC insert holder
  • For TRM high-precision boring head

MHD micrometric boring bar system
  • TRM boring heads and micrometric boring bars ensure a tolerance of IT6 with an optimum surface finish quality.
  • Settings with a radial correction of 1μm can easily be read off the Vernier scale and executed directly on the machine.

SFCC insert holder
  • For TRM high-precision boring head

Article no./ATORN no.
3728270016
Vendor Article no.
470500516002
Packaging unit
1
Catalogue page
KS-0344

Technical characteristics

D 18 - 23 mm
D min./max. 18 - 23 mm
for indexable inserts CC.. 0602..
L 17 mm
L2 8 mm
L5 17 mm
L6 8 mm
Screw TS25
Suitable for screw TS25
Suitable for width across flats T 08
suitable indexable inserts CC.. 0602..
Type SFCC 16
Type SFCC 16
Wrench size T 08
