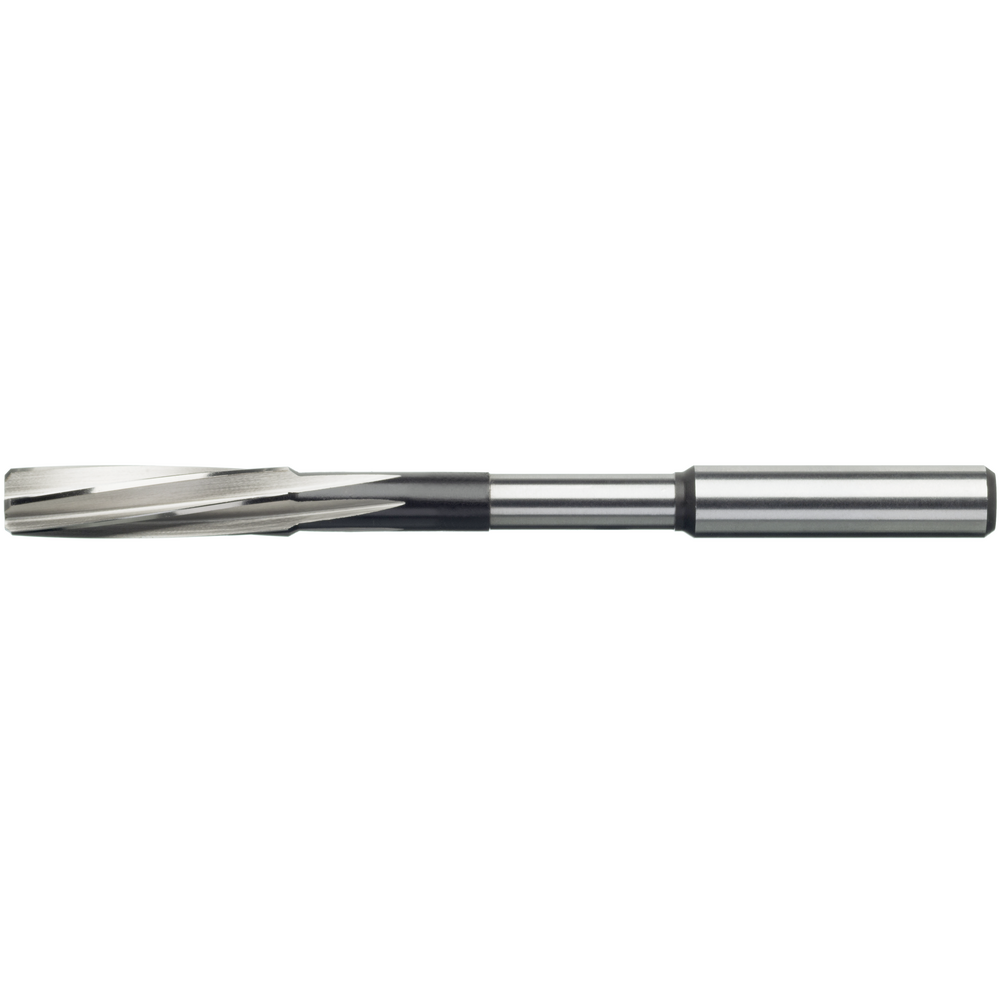

NC machine reamer HSS-E sim. to DIN212D 3mm H7

NC machine reamer HSS-E sim. to DIN212D 3mm H7
NC machine reamer HSS-E sim. to DIN212D 3mm H7 NC machine reamer HSS-E sim. to DIN212D 3mm H7
Price:
18,95 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

NC machine reamers
  • For H7 fit
  • Right-hand cutting
  • Cutting material: HSS-E
  • Straight shank without square end
  • Form D: spiral-fluted with offset shank
  • To ensure maximum true running accuracy for use in hydraulic expansion chucks and high-precision chucks, these reamers are delivered with even shank diameters suitable
  • for reaming through-holes and blind holes
  • Also available in TiN-coated version

Single
NC machine reamers
  • For H7 fit
  • Right-hand cutting
  • Cutting material: HSS-E
  • Straight shank without square end
  • Form D: spiral-fluted with offset shank
  • To ensure maximum true running accuracy for use in hydraulic expansion chucks and high-precision chucks, these reamers are delivered with even shank diameters suitable
  • for reaming through-holes and blind holes
  • Also available in TiN-coated version

Single
Article no./ATORN no.
1610100030 / 10048405
Packaging unit
1
Catalogue page
KS-0328
Cutting values
SW-0405

Technical characteristics

Auskraglänge 33 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D 3 mm
D 3 mm
D1 3 mm
D1 3 mm
DIN 212
DIN 212
Durchmesser max. 2,8 mm
Durchmesser min. 20,0 mm
Durchmesser min./max. 20,0-2,8 mm
Eignung Edelstahl gesamt 2
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 2
Feed f steel < 1000 N/mm² 0,1 mm/rev
Feed f steel < 1000 N/mm² 0,1 mm/rev
fitness hartl total 3
L 61 mm
L 61 mm
L1 15 mm
L1 15 mm
L4 28 mm
L4 28 mm
Surface Uncoated
Surface Uncoated
Tolerance of fit H7
Tolerance of fit H7
Tolerance of shank diameter h6
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Tool holding device HA parallel shank
Twist angle 9° (left)
Twist angle 9° (left)
Z 6 pc.
Z 6 pc.

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
Form D
Form D
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys
titanium alloys

very suitable
suitable
