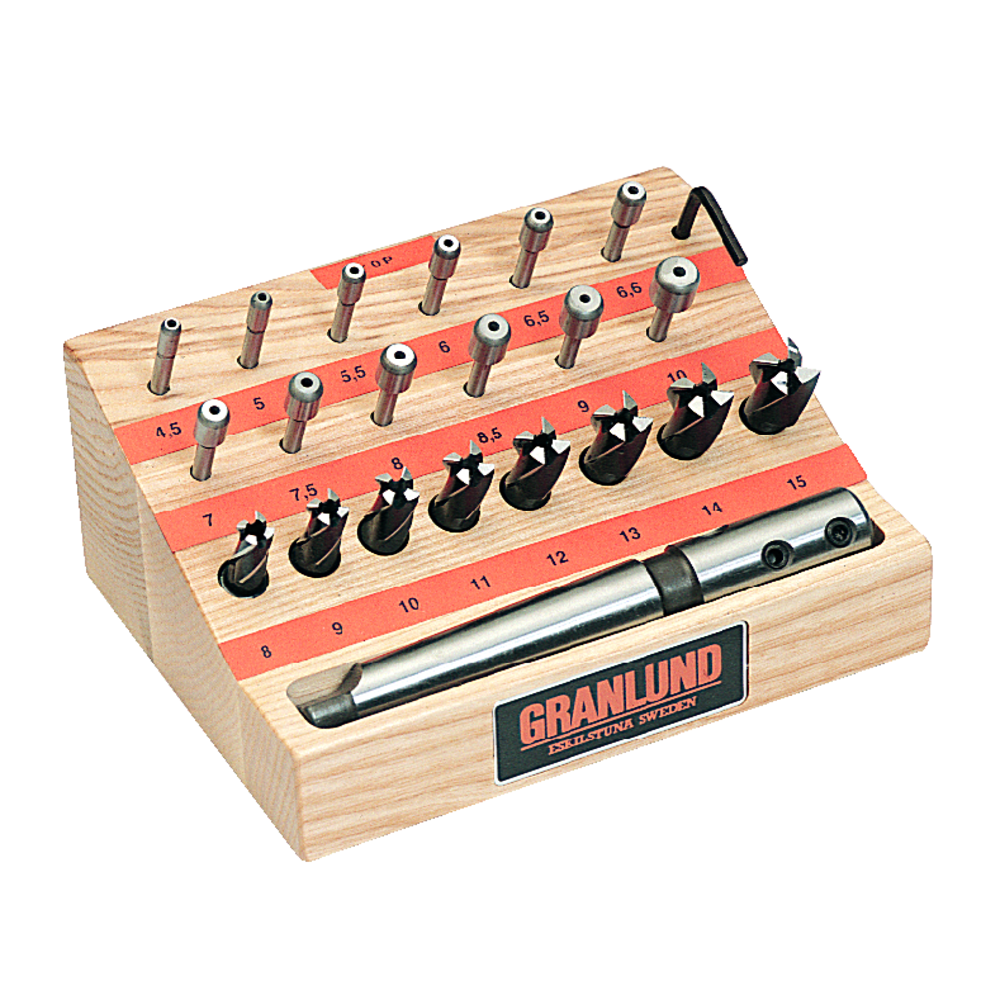

Combination counterbore holder model 0P shank MK2 (countersink range M4-M8)

Combination counterbore holder model 0P shank MK2 (countersink range M4-M8)
Combination counterbore holder model 0P shank MK2 (countersink range M4-M8)
Price:
1.019,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Combination counterbores
  • Just 3 holder sizes required to cover a countersink range of 7 - 66 mm (on request up to 84 mm).
  • Any countersink and pilot pin combination possible within the same holder size.
  • Tight bore and shank tolerances ensure a high degree of true-running accuracy.
  • Countersink and pin are fastened quickly and securely with just one screw. An additional stud safety catch prevents countersinks from twisting.
  • Combine elements to produce countersinks for DIN screws and to machine stepped bores or non-standard countersinks
  • 4 cutting edges

Combination counterbore sets
Combination counterbores
  • Just 3 holder sizes required to cover a countersink range of 7 - 66 mm (on request up to 84 mm).
  • Any countersink and pilot pin combination possible within the same holder size.
  • Tight bore and shank tolerances ensure a high degree of true-running accuracy.
  • Countersink and pin are fastened quickly and securely with just one screw. An additional stud safety catch prevents countersinks from twisting.
  • Combine elements to produce countersinks for DIN screws and to machine stepped bores or non-standard countersinks
  • 4 cutting edges

Combination counterbore sets
Article no./ATORN no.
1510010001
Vendor Article no.
0P
Packaging unit
1
Catalogue page
KS-0320

Technical characteristics

Coating uncoated
Coating uncoated
Contents 8,0 mm | 9,0 mm | 10,0 mm | 11,0 mm | 12,0 mm | 13
Contents, pilot pin 4,5 / 5,0 / 5,5 / 6,0 / 6,5 / 6,6 / 7,0 / 7,5 / 8,0 / 8,5 /
Contents, piloted counterbore 8,0 / 9,0 / 10,0 / 11,0 / 12,0 / 13,0 / 14,0 / 15,0
Cutting data Cutting angle Information - no
Cutting data Cutting angle Information - no
Cutting material HSS
Cutting material HSS
DIN Werksnorm
Holder Model 0, MT 2
Jaw quantity 4 cutting edges
model 0P M4-M8
model 0P M4-M8
Shank MT
Standard constructional dimensions DIN Non-DIN
suitable for holder Modell 0 MK2
Tool holding device MK
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
