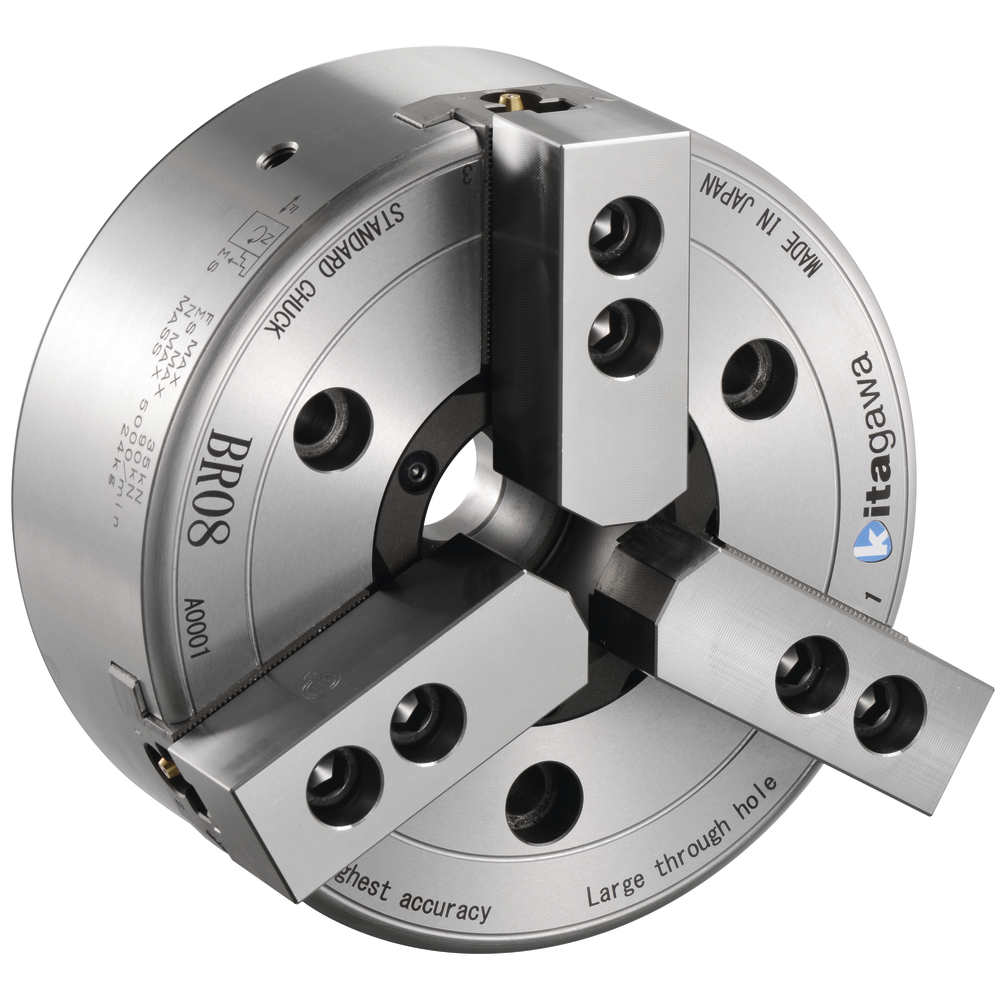

Wedge hook power chuck BR

• Model BR / successor model to the BB-200 series
• Enlarged clearance
• Repetition precision of below 10 µm
  Repetition precision of below 10 µm can be achieved when used with T-Nut-Plus slot nuts and Kitagawa SB jaws. Turned soft jaws for different clamping diameters can thus be exchanged with accuracy. This saves time and money!
• Patented base jaw: up to 10 % increased clamp force at maximum rotational speeds
• Solid steel design
• Hardened and ground guides
• High true running accuracy
• Lubrication nipple in every base jaw
• Centre mount in accordance with DIN 6353
• Supplied without flange, without top jaws; supplied with 1.5 mm x 60° toothed base jaws, standard T-slot nuts, chuck and jaw fastening screws, unthreaded drawbar nuts and a special assembly key
• Threaded drawbar nuts and BR 12 available on request

3-jaw version
