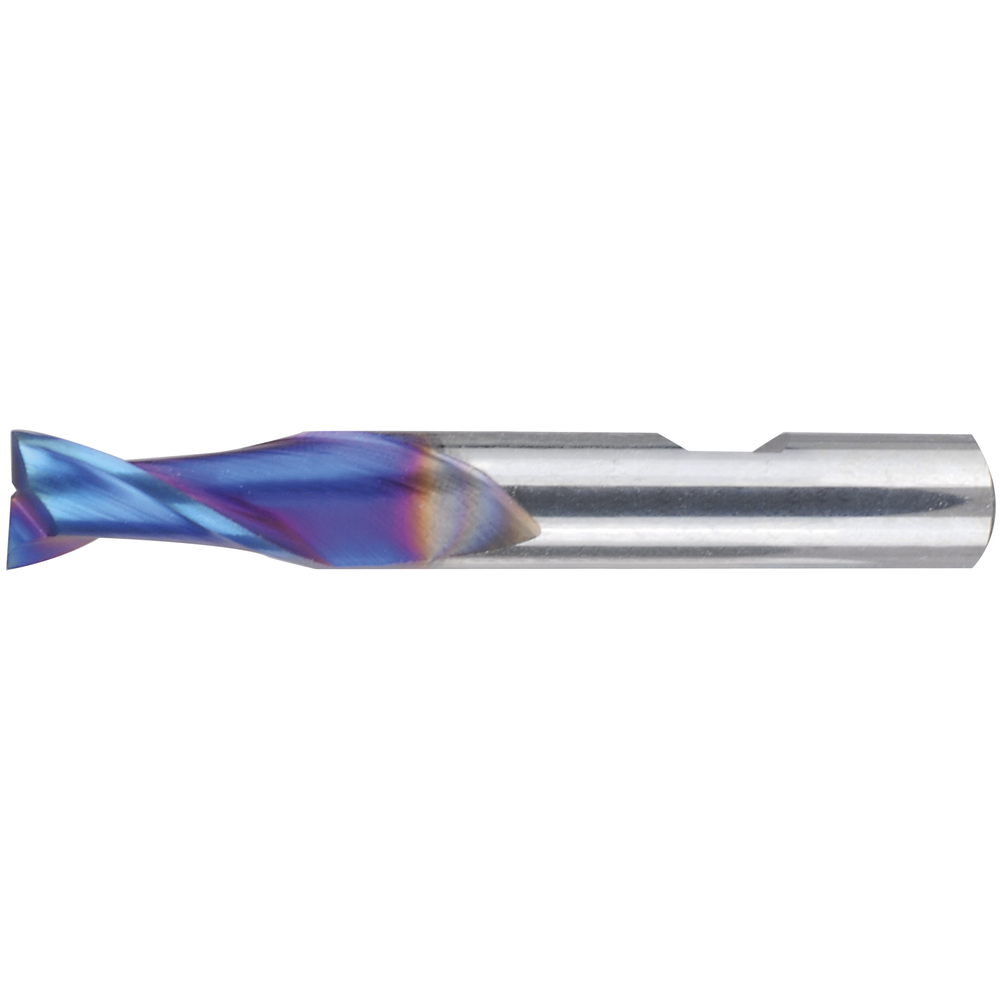

Solid carbide slot drill 30° 4 mm, Z=2 Short HA AlTiN+

Solid carbide slot drill 30° 4 mm, Z=2 Short HA AlTiN+
Solid carbide slot drill 30° 4 mm, Z=2 Short HA AlTiN+ Solid carbide slot drill 30° 4 mm, Z=2 Short HA AlTiN+
Price:
7,90 €
prices excl. vat plus shipping costs

Stock status
69 immediately available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Slot drill
  • 2 cutting edges, short, 30° right-hand cutting
  • Eccentric relief grinding
  • Cutting material: superfine grain solid carbide, AlTiN+ coated
  • From Ø 6 mm with clamping surface in accordance with DIN 6535 HB

Article no./ATORN no.
2542000040
Packaging unit
100
Catalogue page
DAILY-04

Technical characteristics

Coating AlTiN+
Cutting material Solid carbide
D 4 mm
D1 4 mm
Feed for grooving fz steel < 1400 mm² 0,017 mm/tooth
Feed for side milling fz steel < 1400 mm² 0,026 mm/tooth
Jaw quantity 2 cutting edges
L 40 mm
L1 12 mm
Milling application Side Ramp Plunge
Milling technology HSC
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
